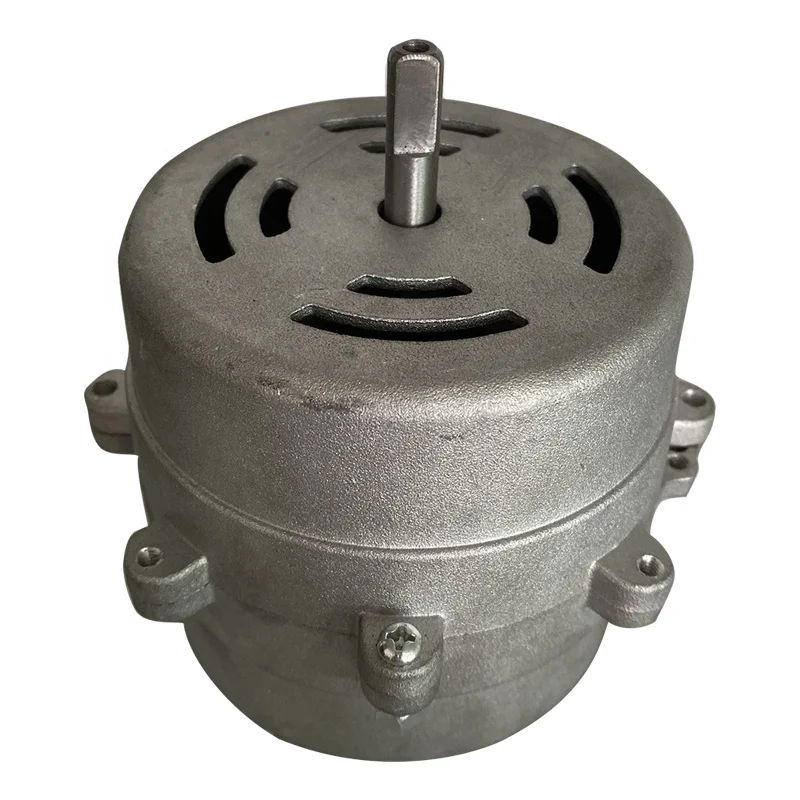

Electric Fan Motor
- Category: Fan Parts >>>
- Supplier: Zhejiang Zhongyou Electrical Co. Ltd. [Zhejiang China]Zhejiang
Share on (231581012):
Product Overview
Description
| Electrical Fan Motor & Louver Fan Motor | ||||||||
| performance characteristics | ||||||||
| Smoothing in operated,strong loading capacity,fast startup,long work times. | ||||||||
| Technical Parameters | ||||||||
| Type | Model | Rated of | Raded of | Output | RPM | Capacity | Insultion | |
| voltage(V) | frequecy(Hz) | Power (W) | (r/min) | µF/450V | grade | |||
| Ø:300mm Fan Blade | YSZ-45 | 220 | 50 | 12 | 1150 | 1 | E | |
| YSZ-45 | 220 | 60 | 12 | 1150 | 1 | E | ||
| YSZ-45 | 110 | 60 | 12 | 1550 | 4 | E | ||
| Ø:250mm Fan Blade | YSZ-40 | 220 | 50 | 10 | 1200 | 1 | E | |
| YSZ-40 | 220 | 60 | 10 | 1200 | 1 | E | ||
| Warming & Cooling | YSZ-60 | 220 | 50 | 15 | 1150 | 1.2 | E | |
| Fan Motor | YSZ-60 | 220 | 60 | 15 | 1150 | 1.2 | E | |
| The motors can be customized according to the different voltages , freqencies and rotation speed . | ||||||||
