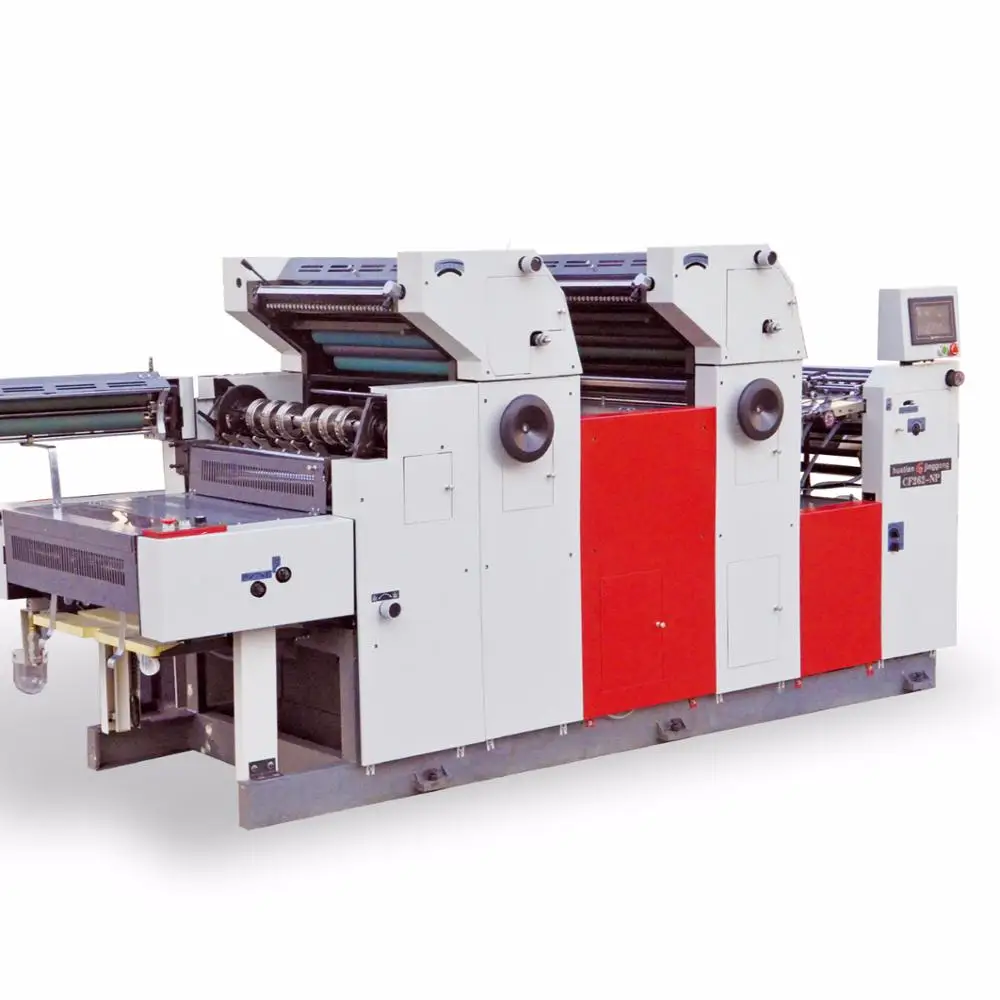

Two color offset printing machine CF47II 2

Product Overview

Description

Two color offset printing machine

1. Two printing units are closely connected, so in color printing, screen lines are well arranged, images are clear, colors are bright, there is no cross color, and printing speed is high.

2. Independent paper feeding with small errors, ensuring the overprint precision.

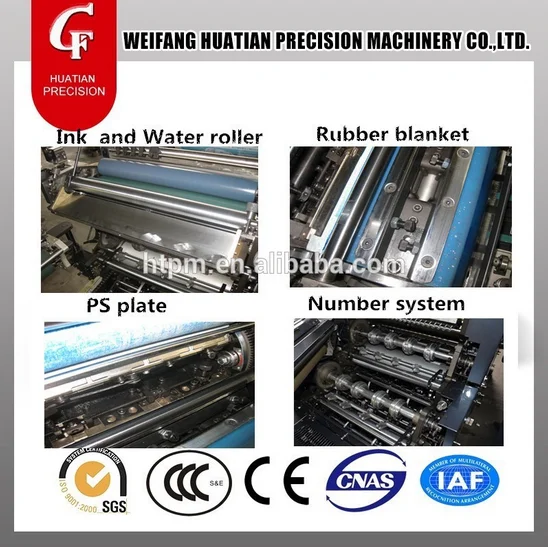

3. A set of movable water-ink duct rollers can ensure the other printing unit will not be worn during single color printing.

4. Effective PS plate installation and rubber blanket cleaning space for convenient operation.

5. The machine with compact structure occupies a small area and the operation is flexible and convenient.

6. Multicolored printing for thin paper, thick paper and self-adhesive paper products with precise alignment and small deformation.

Model CF47II-2 offset press is stable in performance, fine in workmanship, consisting of high quality and advanced components. This is a most convenient, high-efficiency and multifunctional offset press that can enhance printing quality, work efficiency and productivity for users.

Parameter:



Model No.	CF47II-2
Maximum printing size	454*345mm
Maximum paper size	470*365mm
Minimum paper size	90*140mm
Paper type	17g-300g/m2
Number of inking rolls	First printing unit: 11, with 2 forme rolls Second printing unit: 14, with 3 forme rolls
Number of water rolls	4 in each printing unit (1 forme roll in each unit)
Registering mechanism	Roller type side lay
Printing speed	2000-8000 sheets per hour
Motor power	Main motor: 1.5KW	Air pump motor: 0.55KW
Electric supply	380v/50HZ (380v/60HZ optional)
Machine size	CF47sereis  2030(L)*940(W)*1280(H)  mm
Weight	1000KG
