Semi Automatic Die cutting and Hot stamping machine for Leather Cover Paper Board
- Category: >>>
- Supplier: Hangzhou Aochi International Co. Ltd.
Share on (233667125):
Product Overview
Description
Product Description
Application:

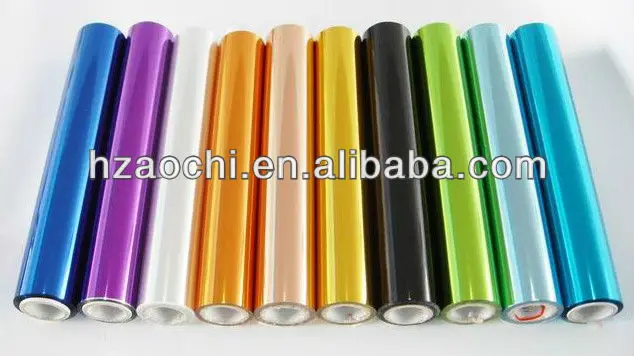

The Hot stamping Machines are new generation products with high precision and marked effect.They are used for hot stamping all kinds of colored aluminum foil and embossing upon pictures,advertisement samples,trade mark,covers of books,season greeting cards,packaging cartons,and high grade decoration and printing materials,etc.The suitable materials are including paper,cardboard,plastics and leather,etc.,So that they are ideal equipments for printing.Packaging and plastics fields.
| * High strength due to one piece casting by using top-ranking material for machine body. |
| * Single plate electromagnetic clutch is sensitive and reliable. |
| * Computer controlled is stable. |
| * Operation position is reasonably arranged,moving-bed can be opened to its optimum. |
| * Skipping is accurate,so as to save foils. |
| * With three functions of continuous creasing and cutting,openingd well operation and closing dwell operation and a large dwell adjusting range. |
| * Safety system is reliable. |

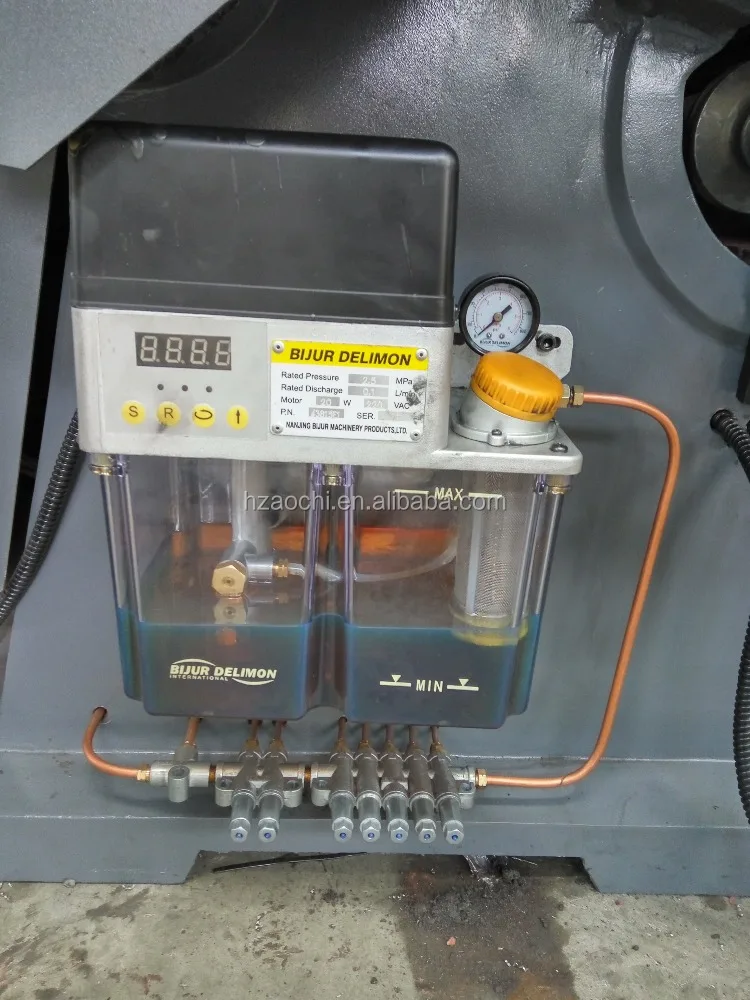

| * Central lubrication system guarantees fine lubrication and reduce friction. |
Main technical Parameter:
Model | TYMB750 | TYMB930 | TYMB1040 | TYMB1100 |
Max.Platen area available | 750*520 mm | 930*670(mm) | 1040*720(mm) | 1100*800(mm) |
Max.Stamping area available | 740*510mm | 930*640(mm) | 1040*720(mm) | 1080*780(mm) |
Range of skip order | Built-in Processing With Computer | Built-in Processing With Computer | Built-in Processing With Computer | Built-in Processing With Computer |
Working pressure | 60(T) | 170(T) | 120(T) | 220(T) |
Foil-delivered length | 500(mm) | 640(mm) | 720(mm) | 800(mm) |
Foil-delivered group | 2(groups) | 3(groups) | 3(groups) | 3(groups) |
Working speed | 1300(strokes/h) | 1300(strokes/h) | 1200(strokes/h) | 1200(strokes/h) |
Main motor power | 2.2(kw) | 4(kw) | 5.5(kw) | 5.5(kw) |
Total power | 10(kw) | 13(kw) | 15.5(kw) | 19(kw) |
Net weight | 2500(kg) | 3500(kg) | 4400(kg) | 5000(kg) |
Dimension | 1360*1640*1600mm | 1850*2200*2150mm | 1900*1800*1800(mm) | 2250*2200*2000(mm) |

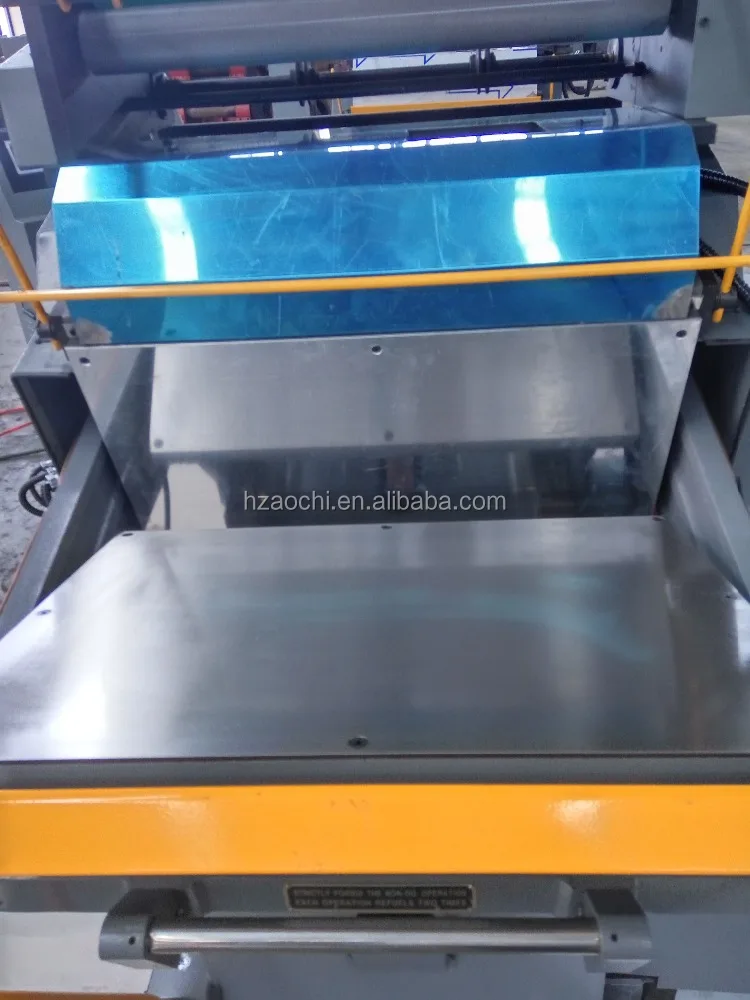

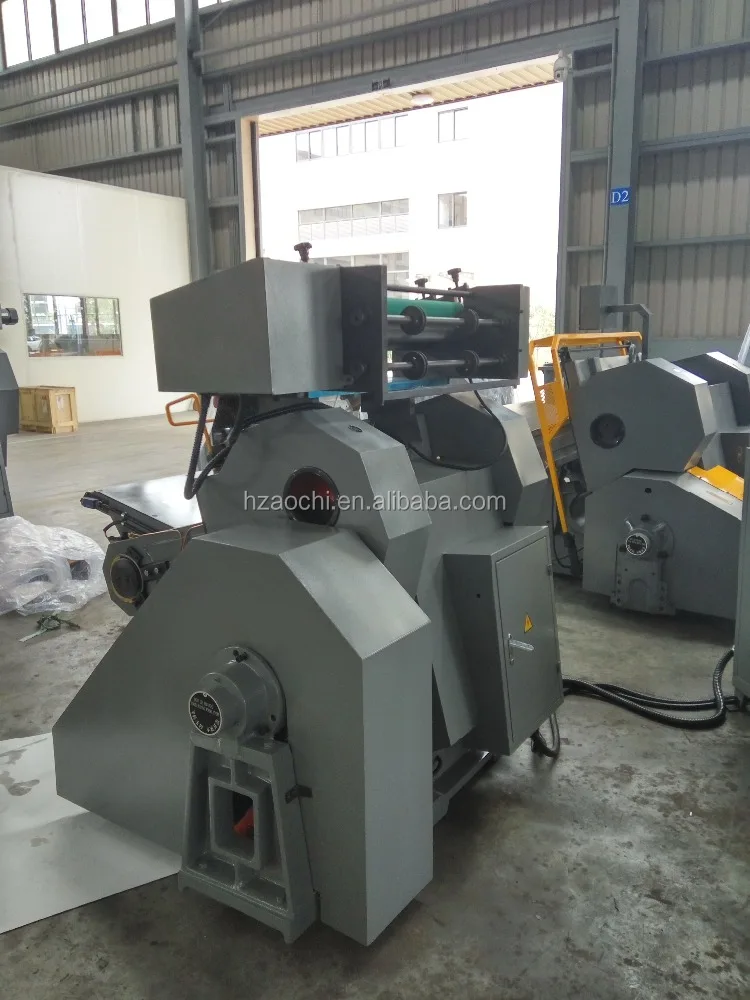

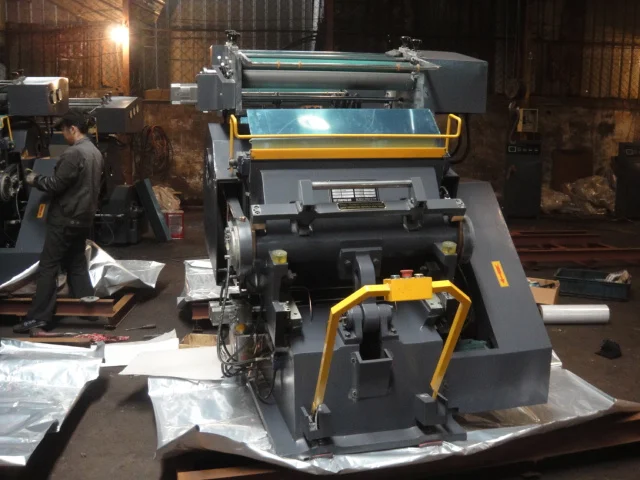

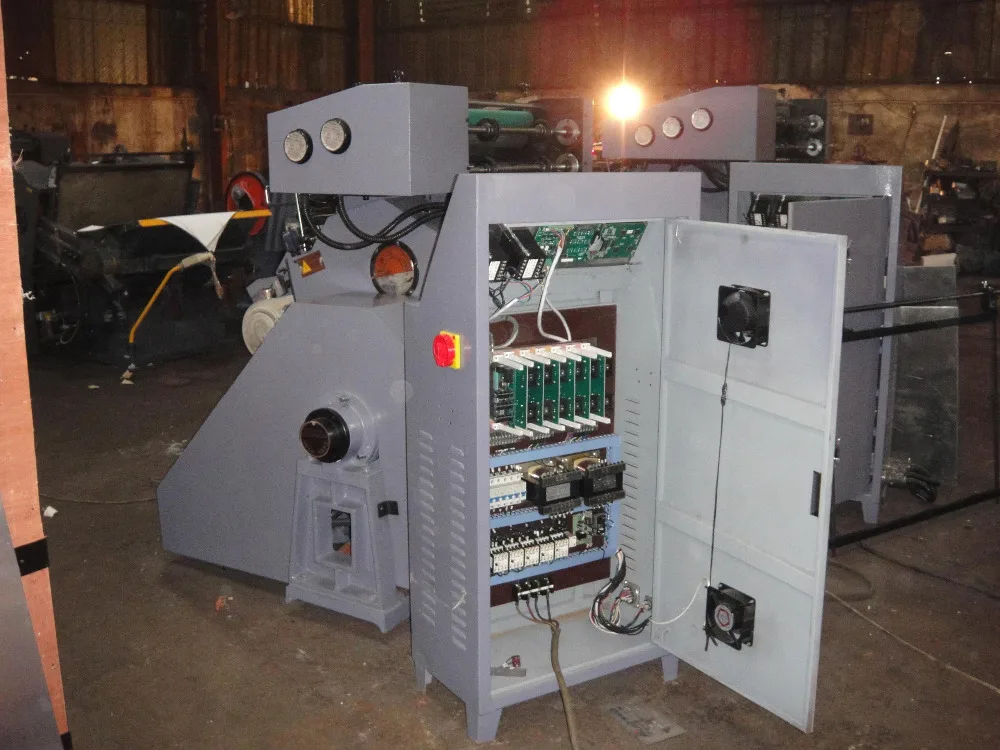

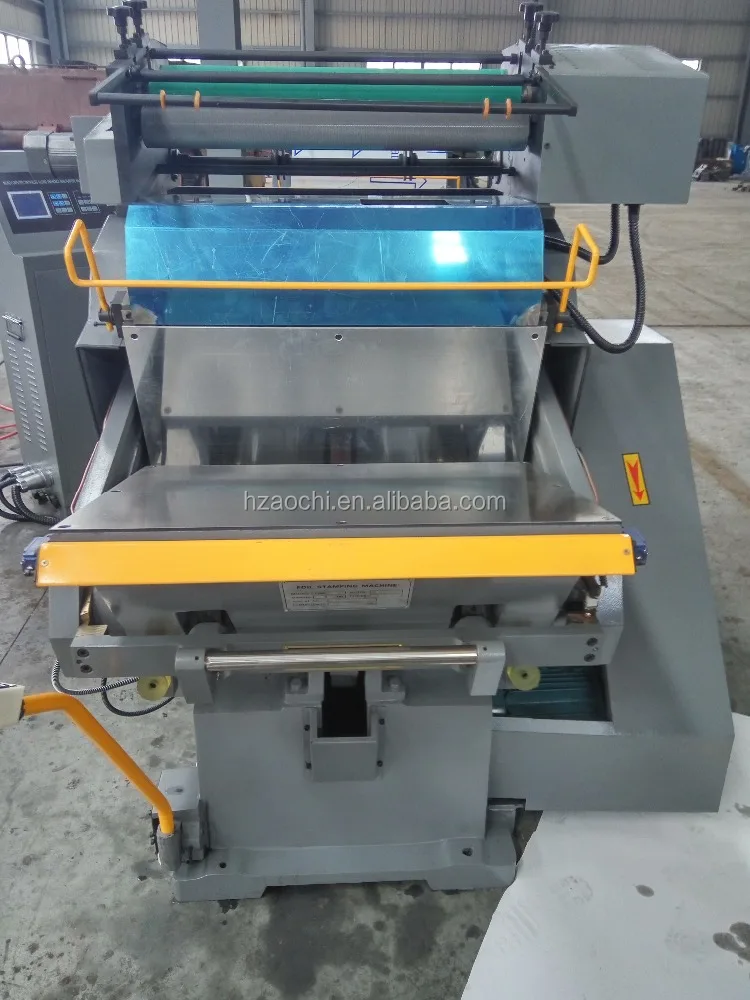

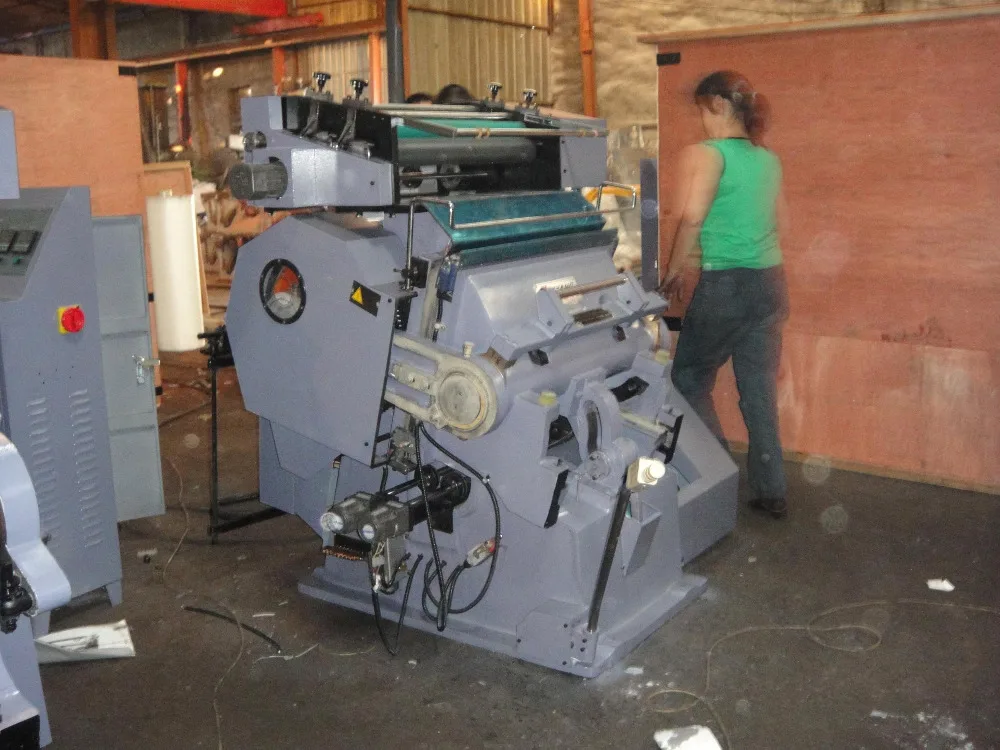

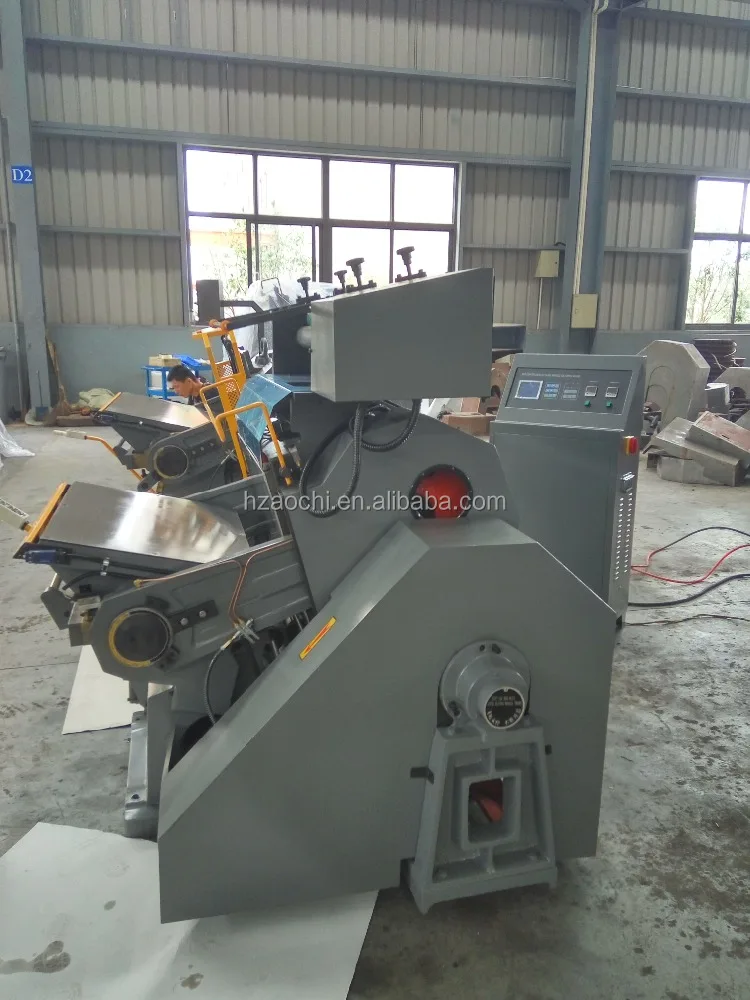

Detailed Images

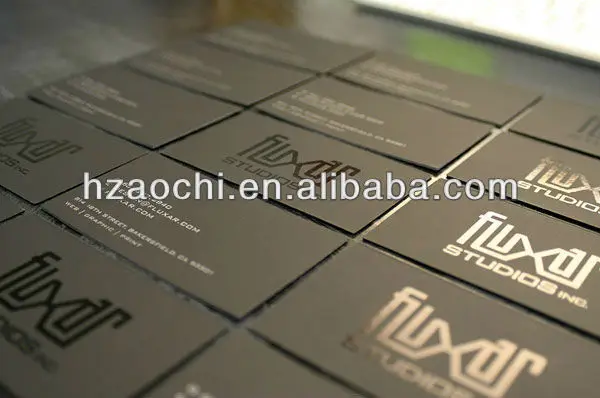

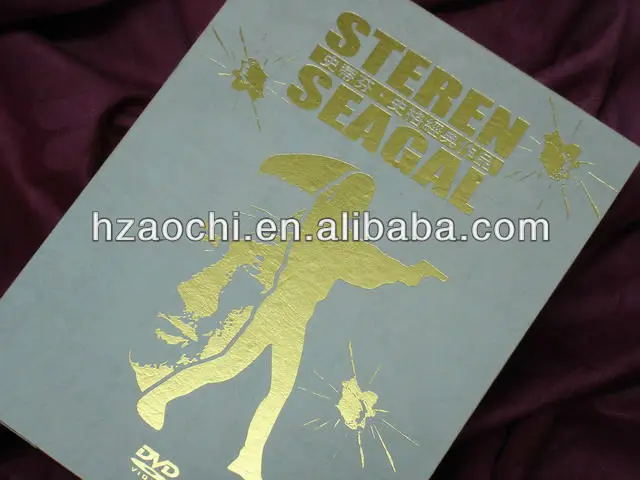

Sample Picture
