Bandage Crochet Machine,Band Crochet Machine,Mask Tape Machine

Product Overview

Description

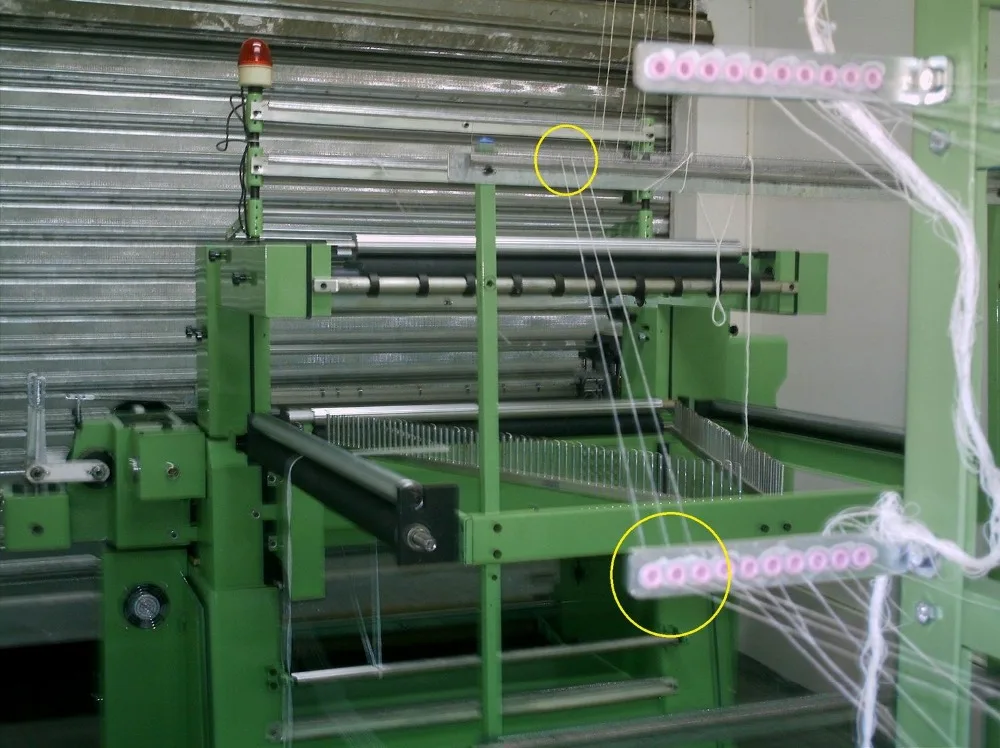

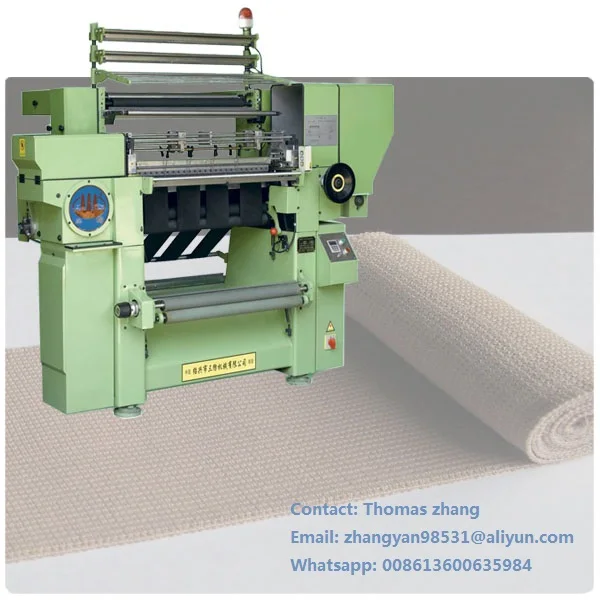

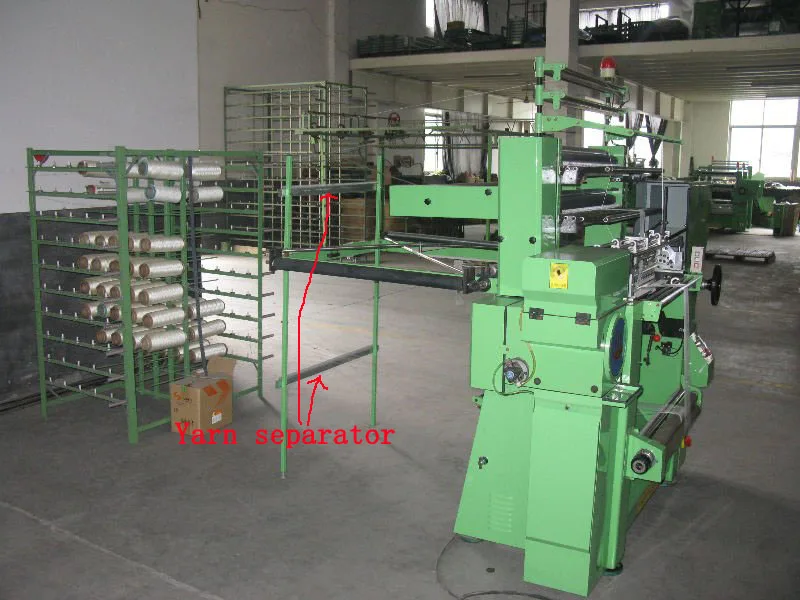

SGD-260 High Quality Bandage Crochet Machine,Band Crochet Machine,Mask Tape Machine

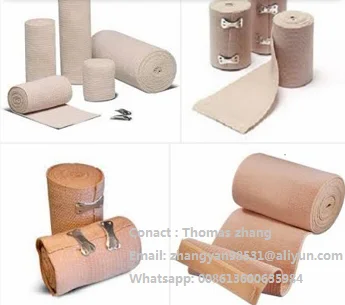

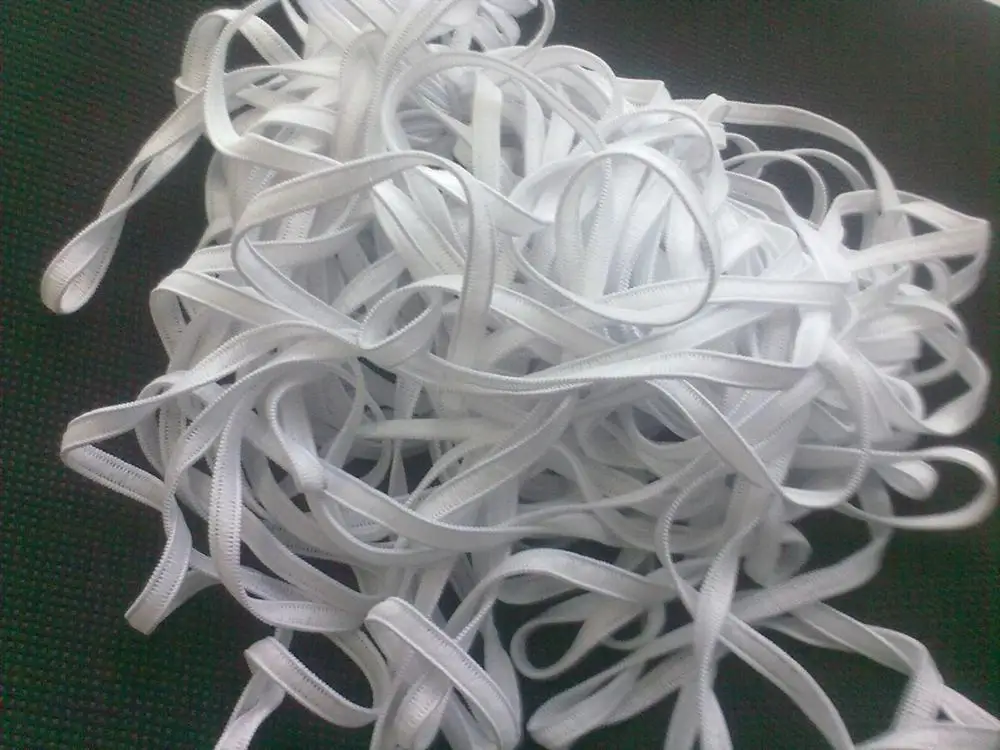

This machine can produce tape and lace with elastic or without elastic,rubber bandange,medical bandage and fancy lace. The product range can be used in clothes, shoe lace, bra tape ,underwear tape and so on.



Advantage :



SGD-260 Elastic lace crochet machine, The gauges come into 15, 18 and 20 or according to customer's request.Automatic lubrication for link chain system make machine to run quietly and smoothly at high speed.



Technical parameter:



Operation Width: 762mm(30inch)

Gauge: 15, 18, 20G

Weft bars: 2--6 bars

Control device: 1 set

Operating motor(1.5hp): 1 unit

Rubber feeder system: 2 set

Width-wise device(260mm): 1 set/ 520 creel

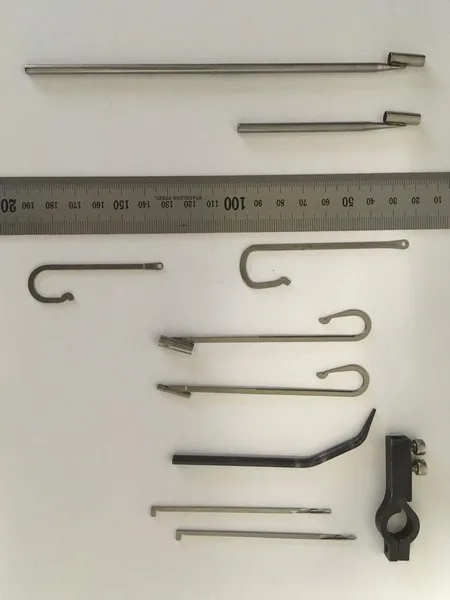

Bearded needle(G2): 400pcs

Weft guide tubes: 100pcs

Tube for width bandage: 10pcs

Block needle: 5pcs

Dropper: 400pcs

Tool: 1set/3set

Creel for 260 bobbins(max.#20cm): 1 set

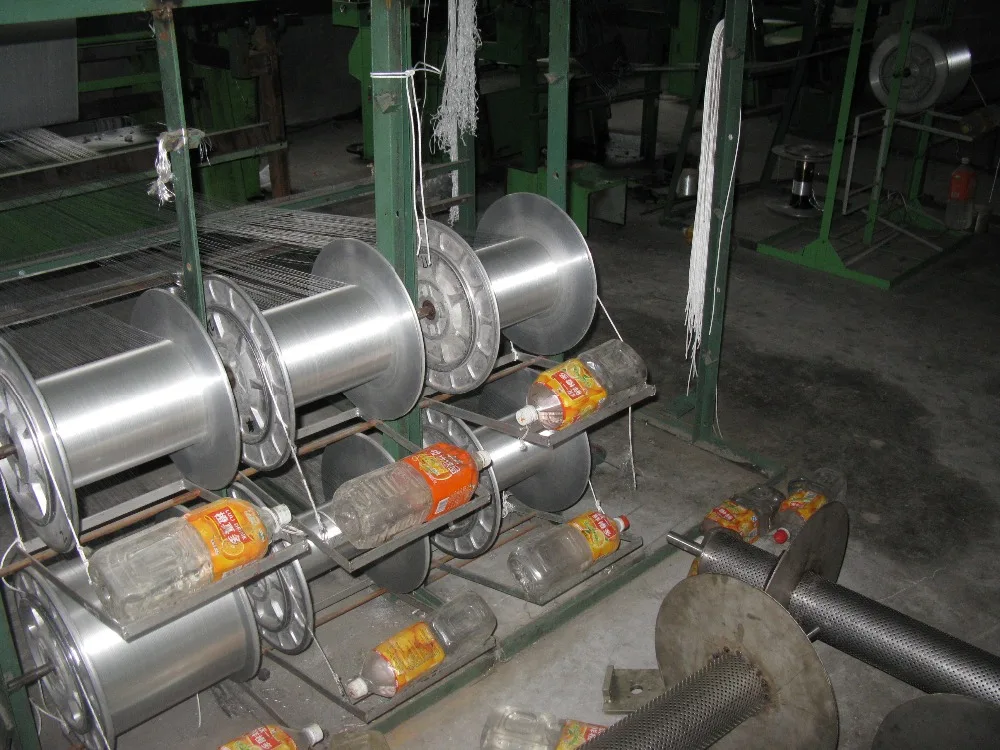

Beam holder: 1 set

Net weight of machine: 750 kg

Net weight of creel: 235 kg

Machine size: 2800 x 1240 x 1900 mm
