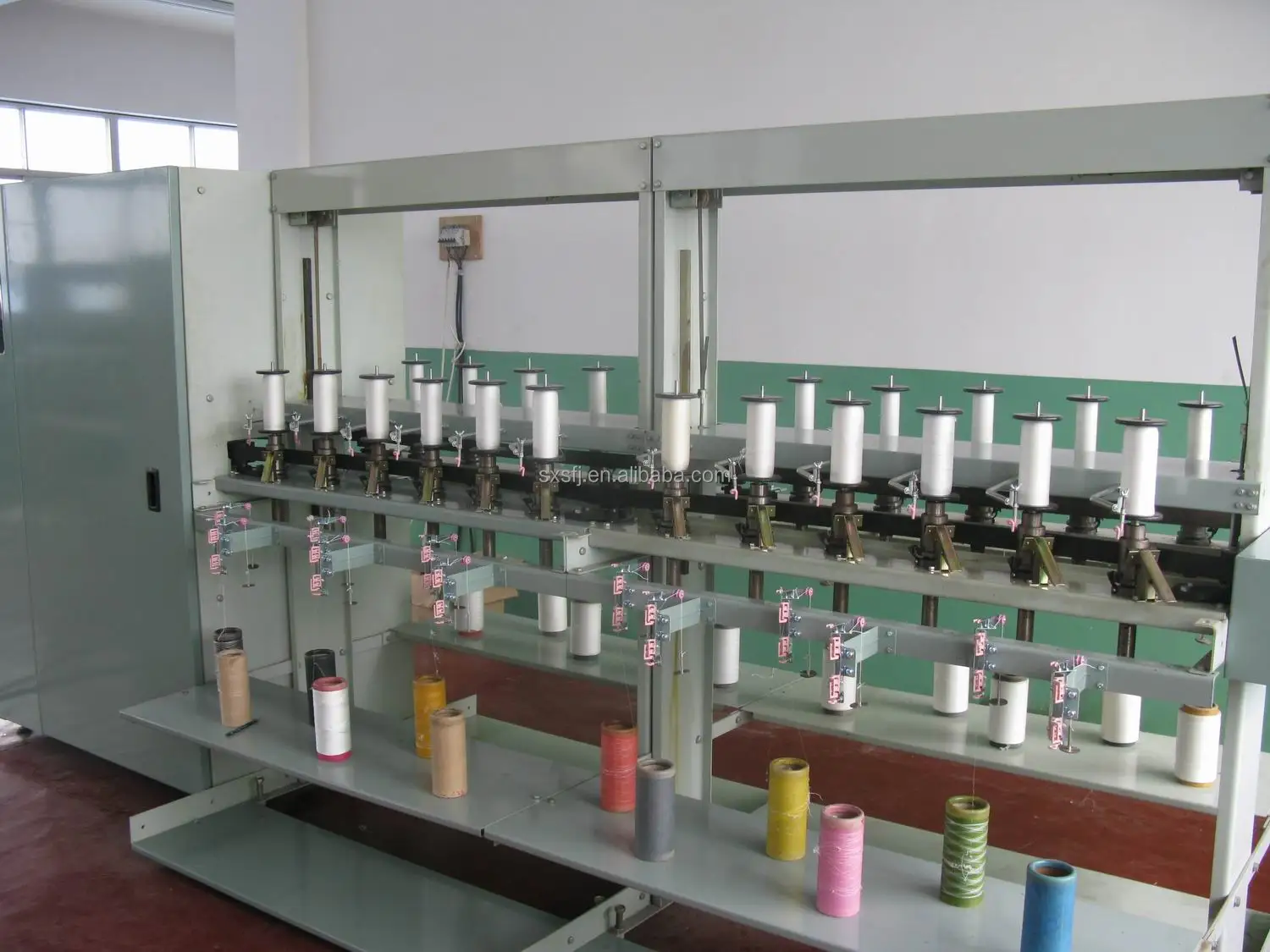

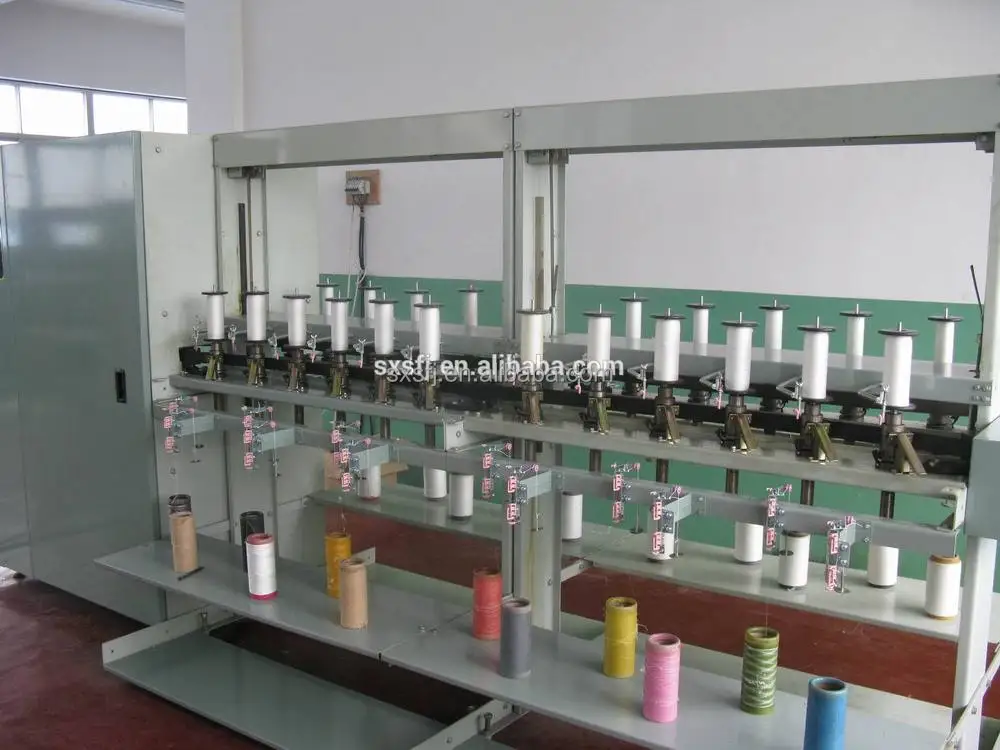

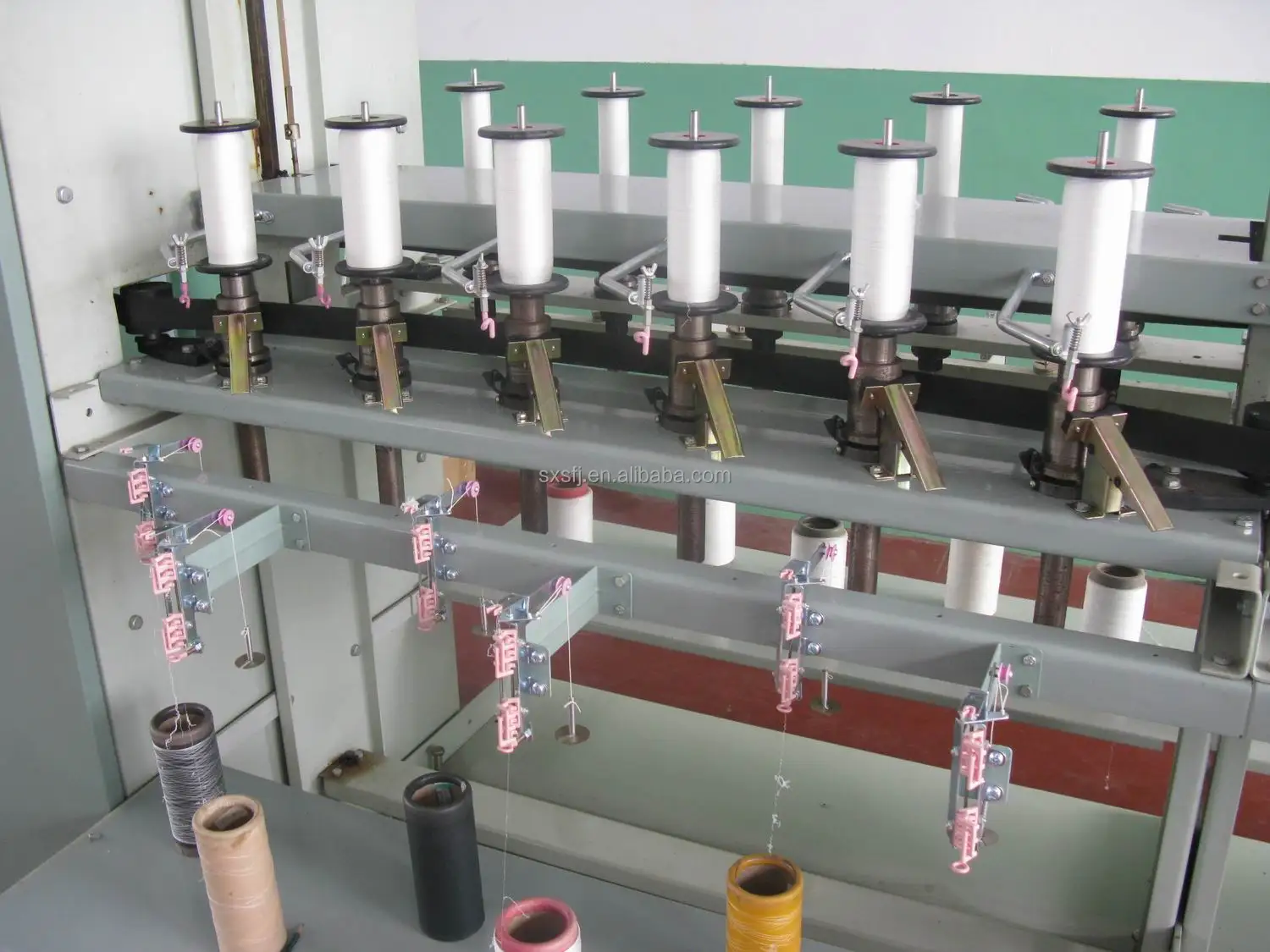

SGD 268 Yarn Flanged bobbin Spool Machine

Product Overview

Description

lt has the structure of two sides and one layer. The whole machine is sprayed plastic. Lt is controlled by computer, regulated speed by frequency variation, and easy to operate. Lts key parts are adopted overseas famous products. Lt is suitable for matching the equipment such as compound twisting machine and mechanical wrapped yarn machine.



Technical parameter:



Number of spindles: 60-120adjustable



Winding speedmax700m/min

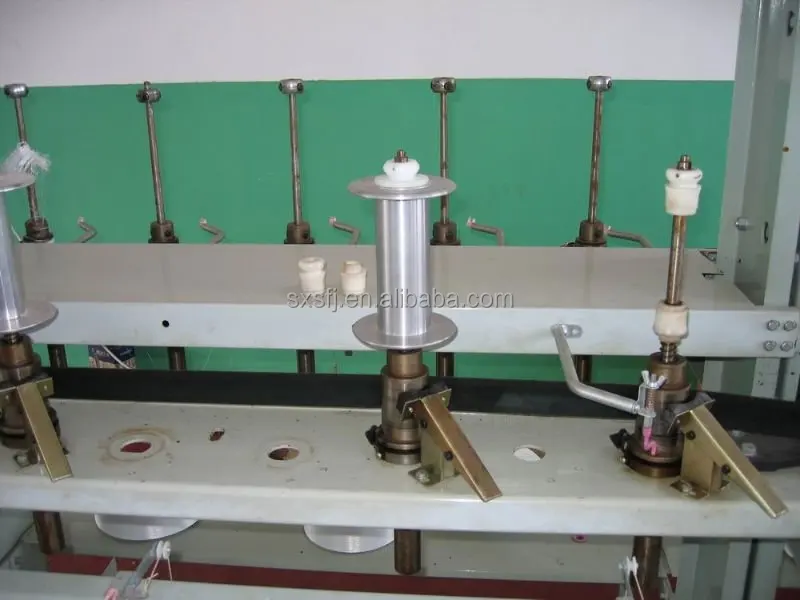

Winding bobbin typeflanged bobbin



Systen of motor: round chain



Systen of come and backrounding chart



Main motory90s-6-0.75kw



Traverse motory100L2-4-(60spindle 3kw,120spindle 5.5kw)



Product: polyester, filament yarn,cotton yarn



A: warp, B: weft wind, C:P compound type wind, D: built-up type wind



Size: L14500×W1400×H1850 mm



Weight: about 2000kg
