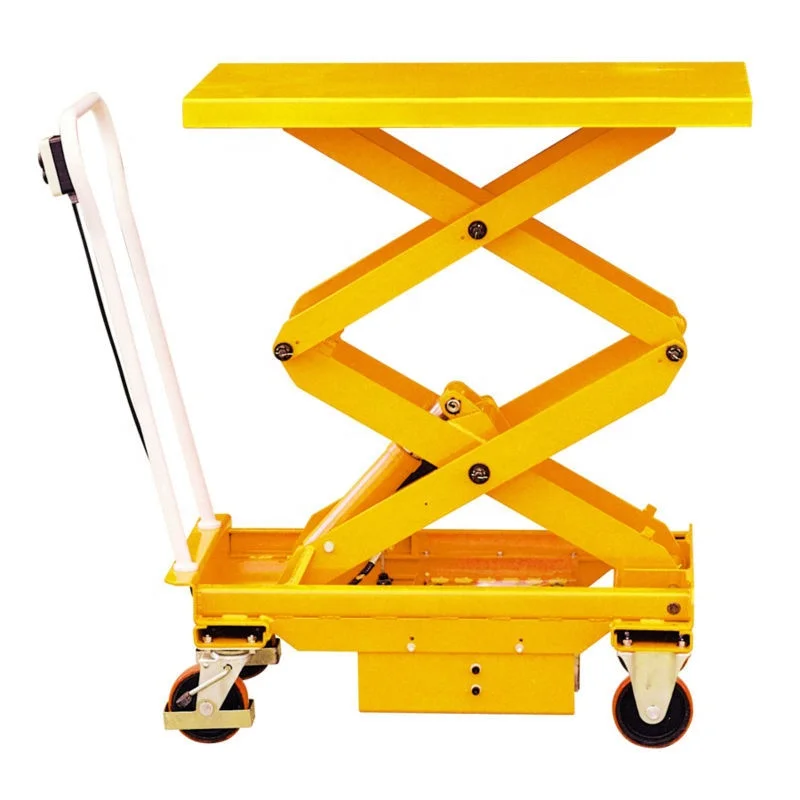

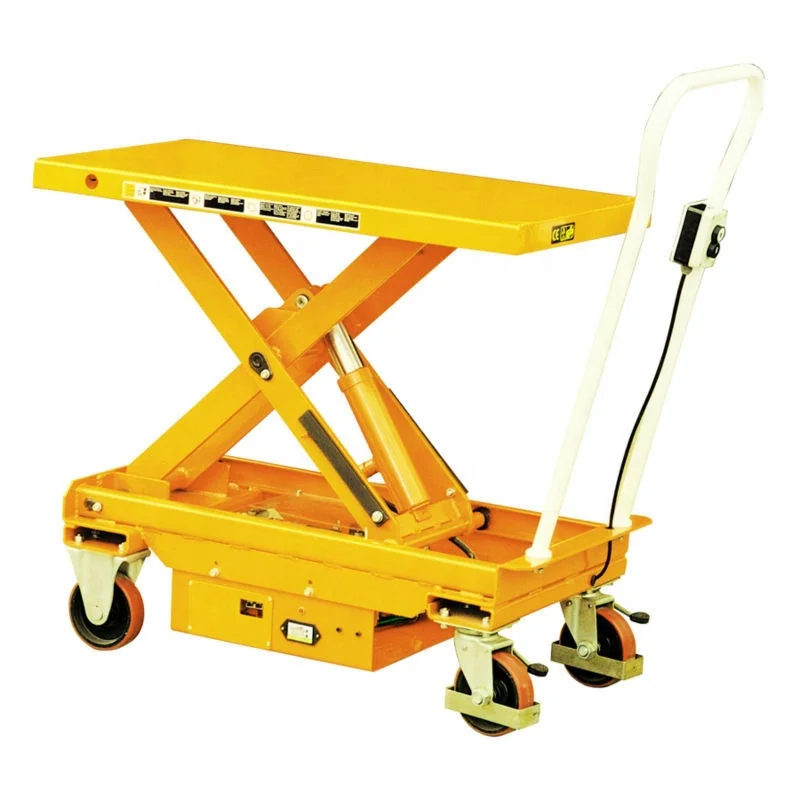

Mobile Electric Hydraulic Lift Tabl ES series

Product Overview

Description

Product Description

•Capacity:300~1000Kg.
•Lifting Height:950~1618mm.
•Robust structure yet lightweight.

•Conforms to CE safety standard.

•Battery: 75AH/12V, Power pack: 700W

                                                                        ES30



                                                          ES50



                                                                 ES50D





Model		ES30	ES50	ES75	ES100	ES30D	ES50D	ES80D
Type		Single Scissor				Double Scissor
Capacity	Kg	300	500	750	1000	300	500	800
Min.Height	mm	450	450	450	480	495	495	510
Max.Height	mm	950	950	950	950	1600	1618	1460
Handle height	mm	1000	1100	1130	1130	1130	1100	1130
Table Size	mm	1010x520	1010x520	1010x520	1010x520	1010x520	1010x520	1010x520
Net Weight	kg	140	148	154	169	183	198	208
