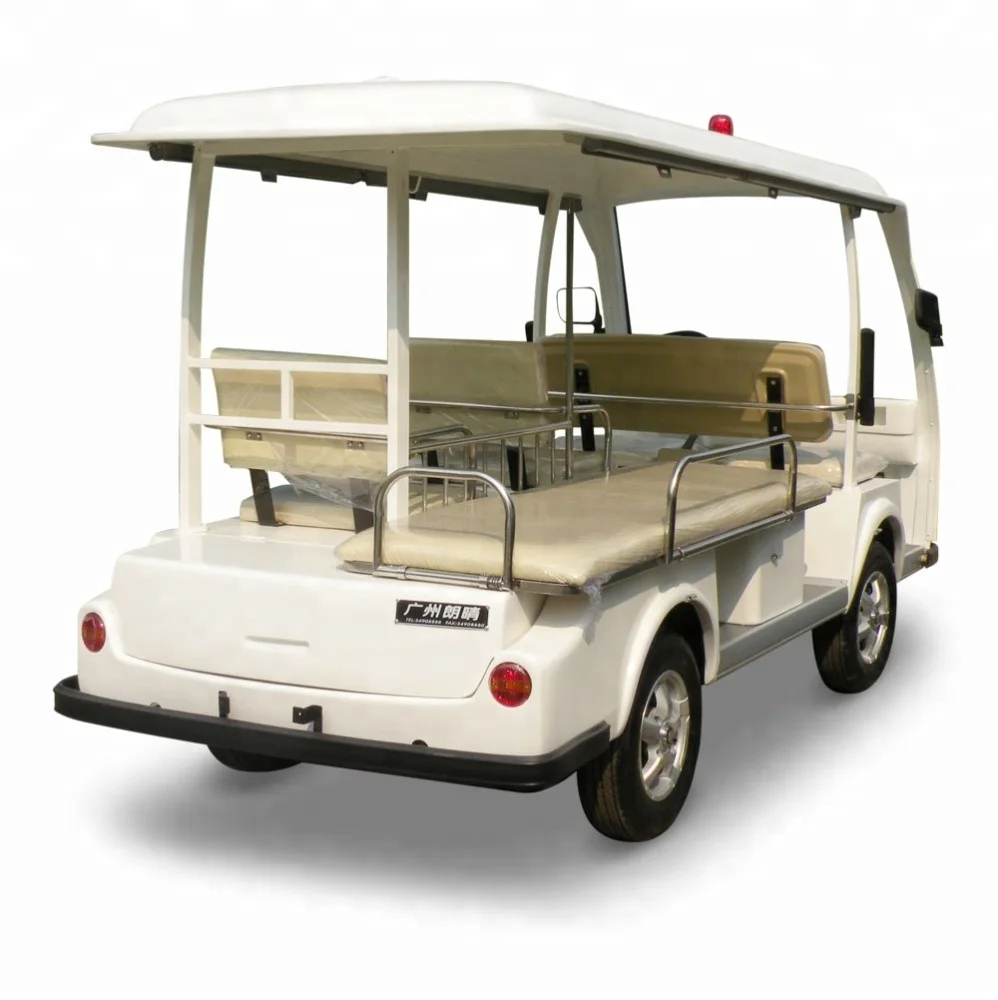

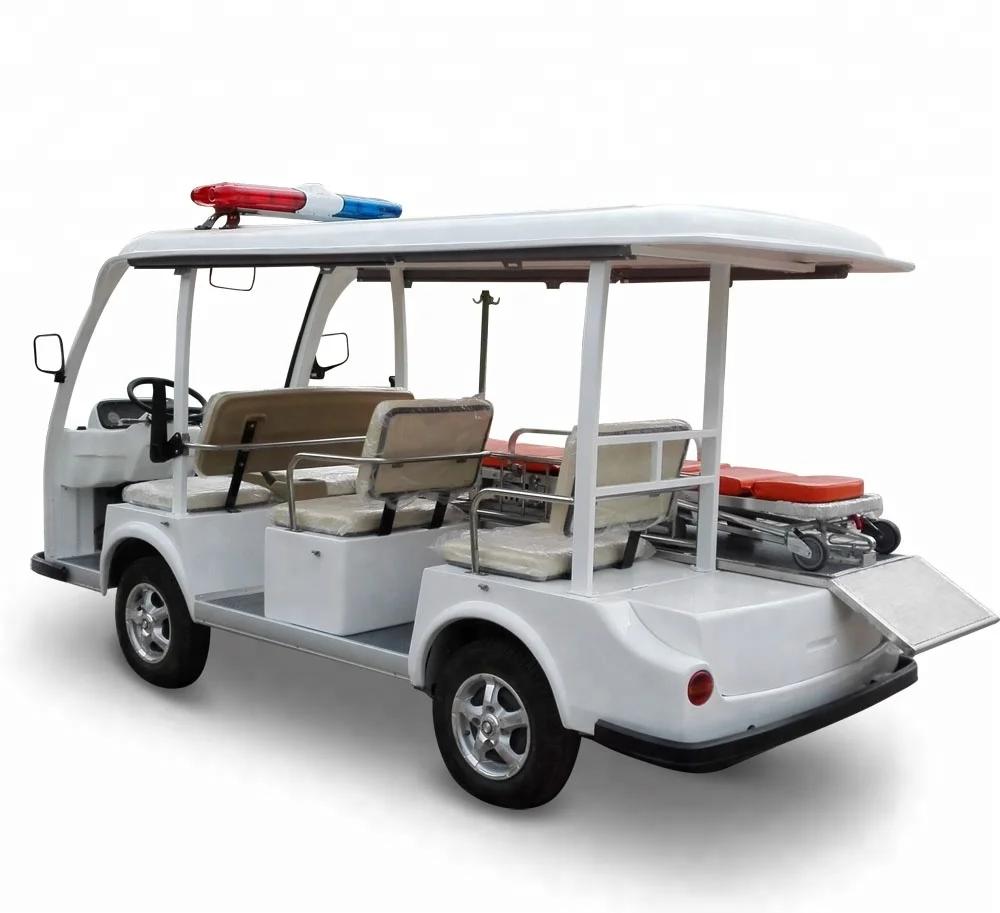

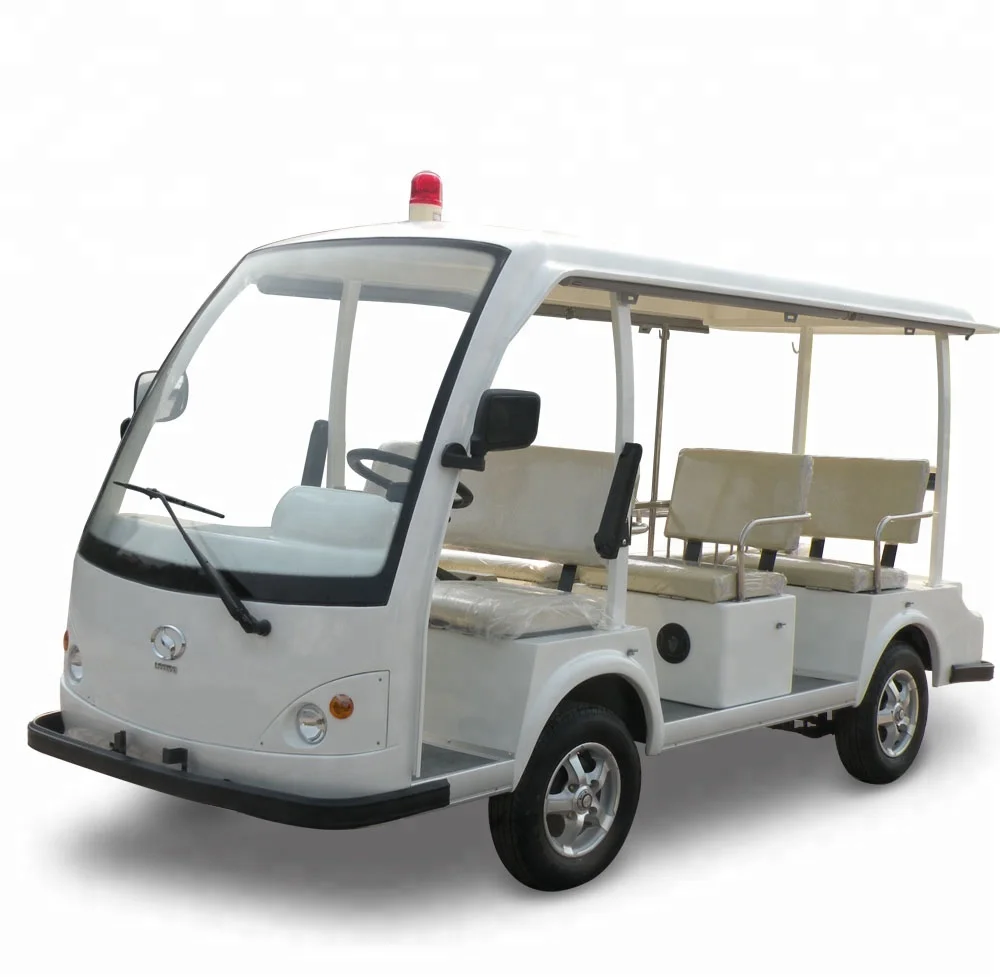

Electric Ambulance Car LQJ050

Product Overview

Description

Electric Ambulance Car

Performance:
	Passenger capacity			6 seats
	Max.speed			24km/h
	Range(loaded)			80km
	Climbing Ability(loaded)			18%
	Braking Distance			≤4.5m
	Min.Turning Radius			4.7m
	Min.Clearance			105mm
	Recharge time			8~10h
Domensions:							cargo box size:1100×550×300mm
	L×W×H			3400×1295×1900mm
	F/R Tread			870/980mm
	Axle Distance			2870mm
	Curb Weight			670kg
	Max. loading weight			400kg
Configurations
Standard:
	Motor			separately excited 48V3KW
	Controller			Curtis 1204-404 48V 275A
	Battery			Lead Acid Battery 8V145Ah×6pcs
	Body			ABS Plastic
	Roof			ABS Plastic
	Windshield			One - piece see-through POLYCARBONAT glass
	Seats			Sponge + artificial leather
	Bumper			Front and back
	Tire			Steel 18×8.50-8 6PR
	Chassis			Welded tubular steel with rust-proof powder coat paint
	Steering			Single reduction rack and pinion
	Suspension			Independent front wheel suspension
	Lighting system			2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
	Brake system			Rear and front drum pneumatic brake system,4-wheels Hydraulic pressure type
	Driving mode			Rear wheel driving
	Charger			Fully automatic high efficiency pulse, 25 Amp DC output at 48 volts; input AC  220V 50HZ , external charger
	Dashboard			Forward/reverse switch, turn signal indicator, ignition key,  headlight switch,  horn button,,electric power consumption indicator,four cup holders



Langqing  a professional electric vehicle manufacturer for electric shuttle bus,electric truck ,electric golf car , electric towing tractor, electric classic car, electric ambulance car, electric cargo car,  etc
