waterproof foot pedal switch with CE IEC
- Category: Other Switches >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (234930713):
Product Overview
Description

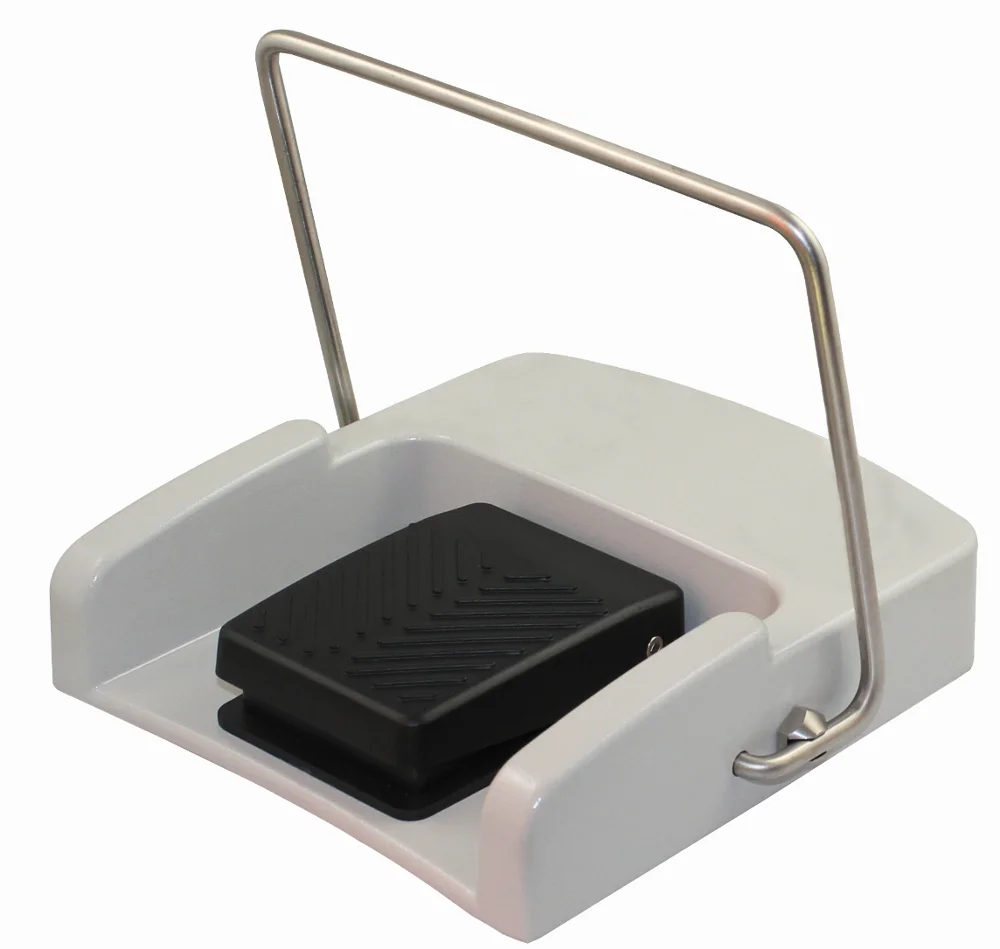

Basic Parameters:waterproof foot pedal switch
| Features: | |
| 1)Aluminum alloy cast base | |
| 2)Galvanically separated contacts(for -SP,-SL) | |
| 3)Positive Opening of NC contacts(for -SP,-SL) | |
| 4)UL/cUL approved (E216958) | |
| 5)IEC60601 certification issued by TUV for medical applications | |
| 6)Customed color/wiring available | |
| Specifications: | |
| Operating Speed: | 60 ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ(initial) |
| Rated Current/Voltage | 10A/300VAC |
| Inrush Current: Complies with: IEC947-5-1 AC15/DC13 | |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts |
| 2500VAC for 1 min between non-current carrying parts | |
| Service Life: | Mechanically 1000000(operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -30~+80°C(-22~+176°F) |
| Humidity: | <95%RH |
| Degree of Protection: | IPX8 |
Medical Foot Switch

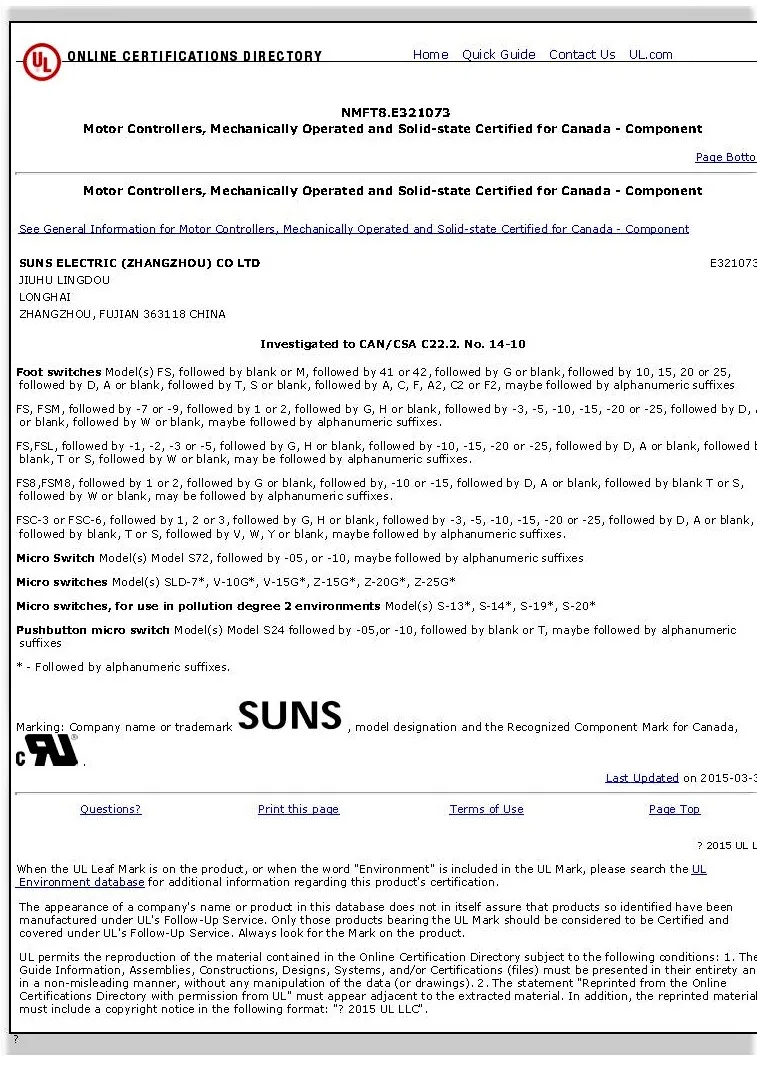

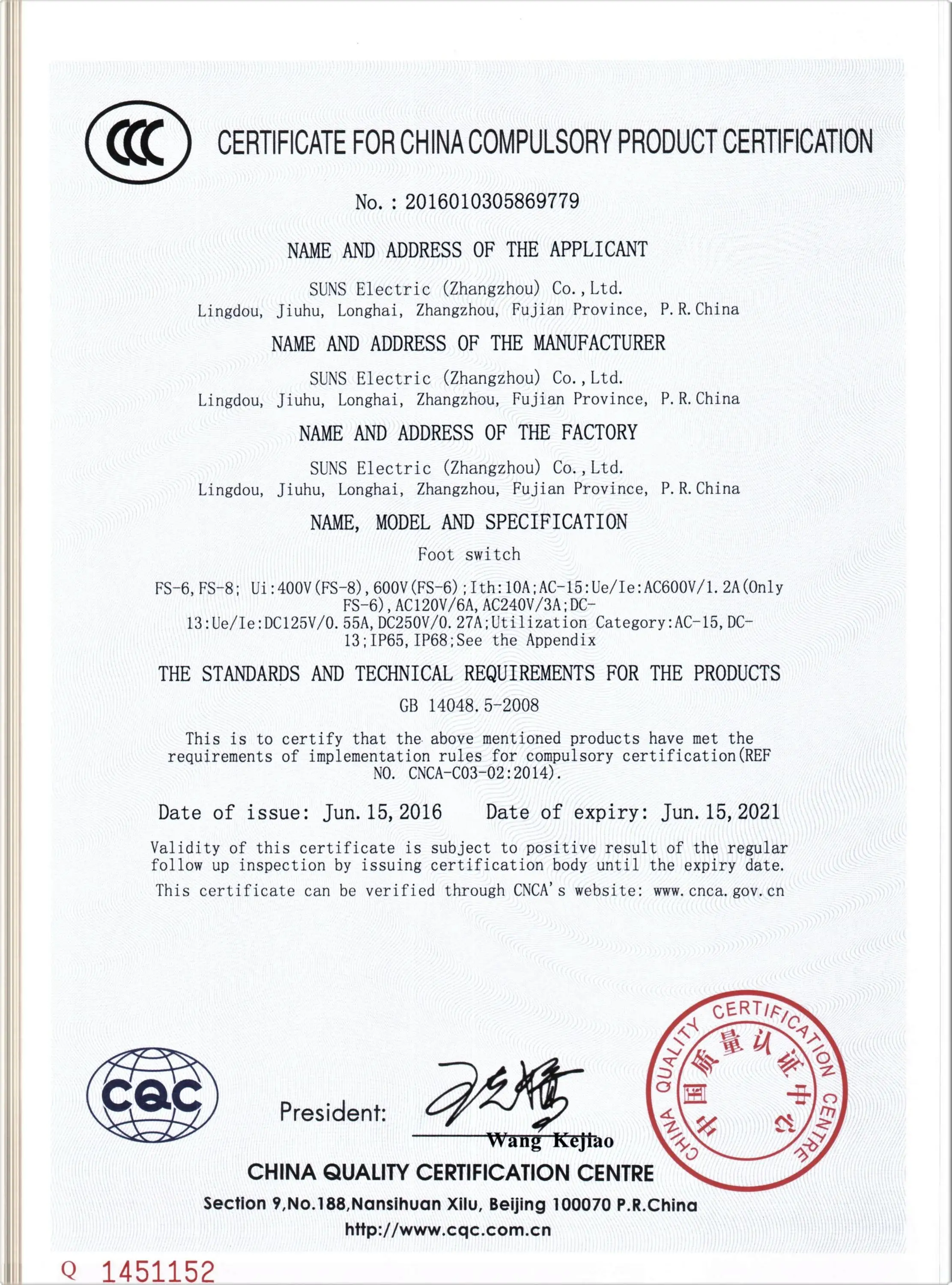

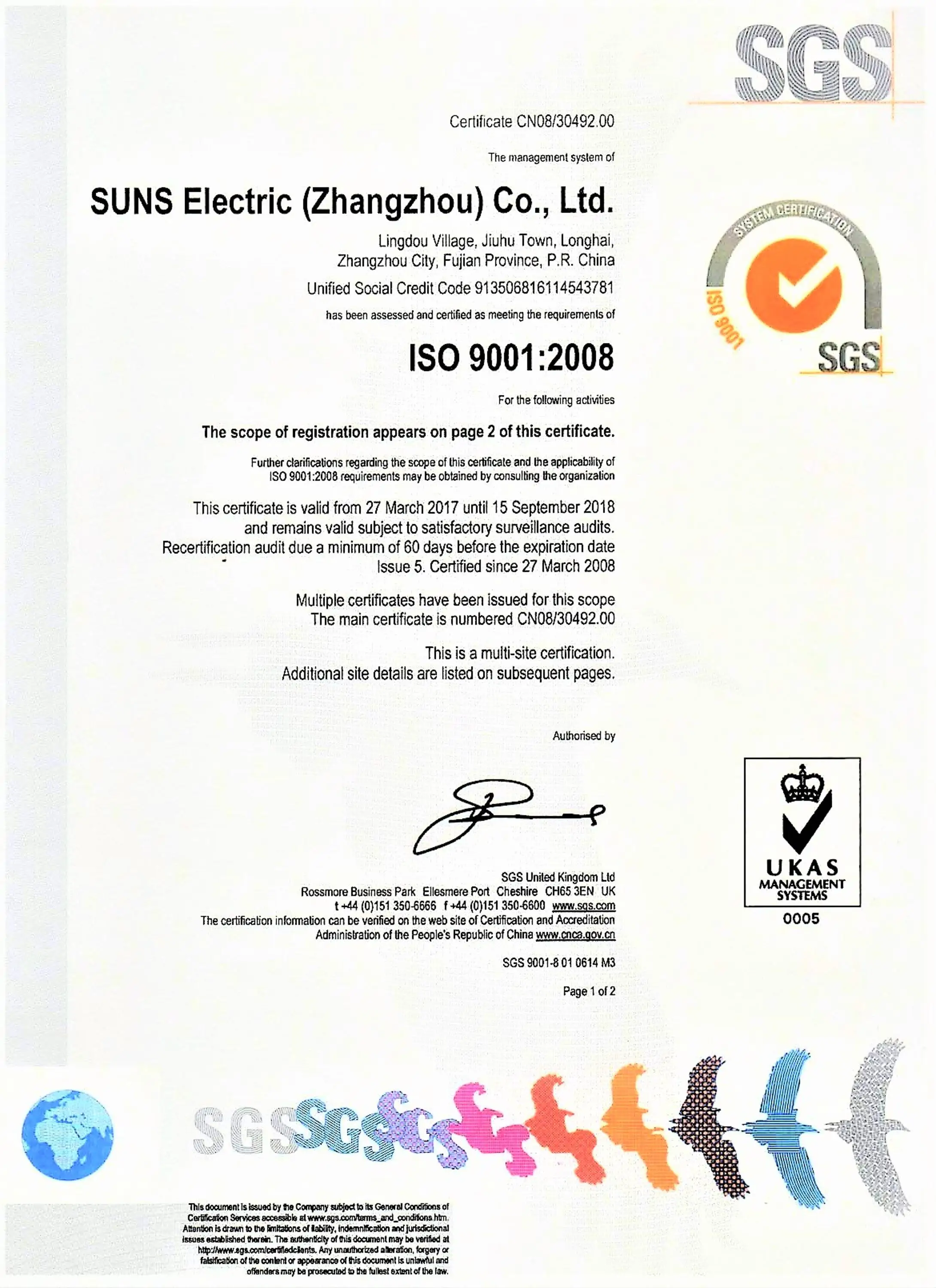

SUNS Certifications
Company Information
Introduction
We are committed to delivering world-class products and services efficiently and effectively to our customers and your total satisfaction is our goal. As an established member in the industry, we will continue our endeavors in delivering better products and services to our new and old customers. With this dedication and long-term commitment, Suns Electric (Zhangzhou) Co., Ltd. is ready to become a leader in the industry.
Workshop & Production
Product & Service
FAQ
1. A:Where is your company?
Q:We are a USA company and have our own manufacture factory in Fujian China.
2. A:Do you have any certifications?
Q: We have TUV, CSA, UL, UR, CE, CCC approved, and RoHs, REACH compliance
3. A:What is your payment term ?
Q:T/T, L/C
4. A:Could I have some samples for testing ?
Q:Samples(Depends) can be sent per request on your express cost.
5. A:What is your delivery time ?
Q:Delivery lead time 2-4 weeks normally
Our Service
- Provide wide variety of Limit Switch, Foot Switch, Micro Switch, Industrial Switch,etc.
- Offer customized solution to clients based on various situations
- Satisfactory delivery service to domestic and international clients
- Promote extended after-sale service
Advantage
- Reliable supplier/partner for dozens of world leading manufacturers
- Provide value added service and flexible
- Maintain leading-edge technology through continuous innovation
- Provide most reliable products and services
- Offer the most complete switch portfolio
- Stable work force with people-oriented management style
