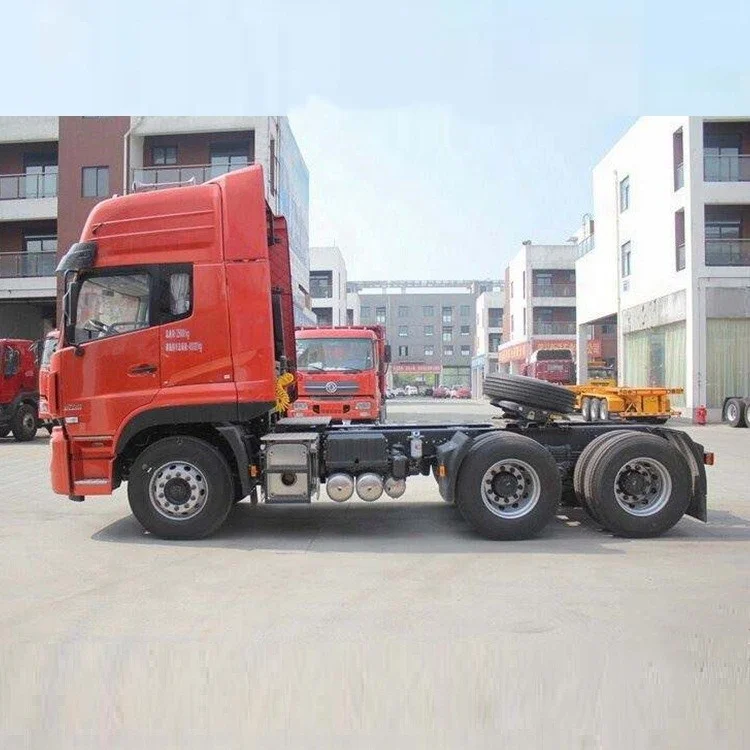

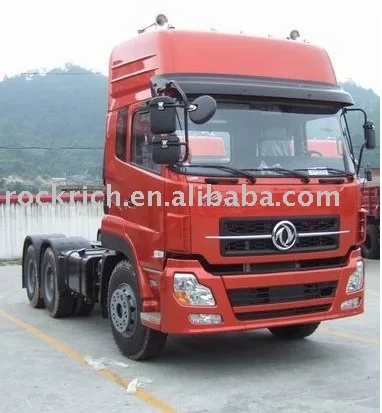

Dongfeng Semi Truck(DFL4180A K10 201 03AB)

NO.

Technology Parameter

Design Parameter

1

Overall Dimension (lengthx width x height)(mm)

5990×2490×3700

2

Driver cab

D310-H1

3

Driver type

4×2

4

Gearbox

9JS119TA

5

Clutch

Diaphragm spring Φ430mm

6

Wheel base(mm)

3500

7

Spring leaf Quantity (Front/rear)

8/11+3

8

Tire style (front/rear)

11.00R20

9

Tire Quantity

6

10

Axle Base(mm)

1986 /1860

11

G.V.W (kg)

34500,32300

12

C.V.W(kg)

7255

13

Seating Capacity ( includes driver)

2-3

14

Approach Angle/ Departure Angle(°)

20/40

15

Frame section(mm)

300×90×(8+6)

16

Max. Speed(km/h)

90

17

Front axle/Rear axle(T)

7/13

18

Engine Model and its manufacture

C280 20    / from Dong Feng Cummins Engine Co., LTD

19

Min. Ground clearance(mm)

250

20

Main speed reduction ratio

4.875

21

Fuel Tank(L)

All-steel 350
