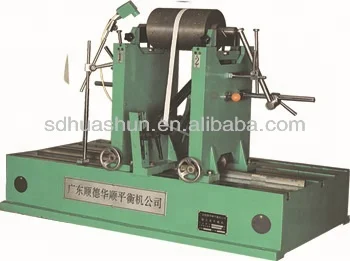

SB30 PI Spindle Balancing Machine
- Category: >>>
- Supplier: Foshan City Huashun Motors Co. Ltd. [Guangdong China]Foshan
Share on (235250036):
Product Overview
Description
Technical Parameters
Type of balancing machine | Special balancing machine |
Specifications/type | SB30-PI |
Max. mass of works(kg) | 30 |
Max. dia. of works (mm) | 700 |
Min. Dis between supports(mm) | 120-1100 |
Journal dia. of supports (mm) | 15-60 |
Balancing speed (r/min) | 300-4500 |
Journal dia. of belt drive(mm) | 40-300 |
Min. achievable residual unbalance amount emar(g.mm/kg) | ≤0.3 |

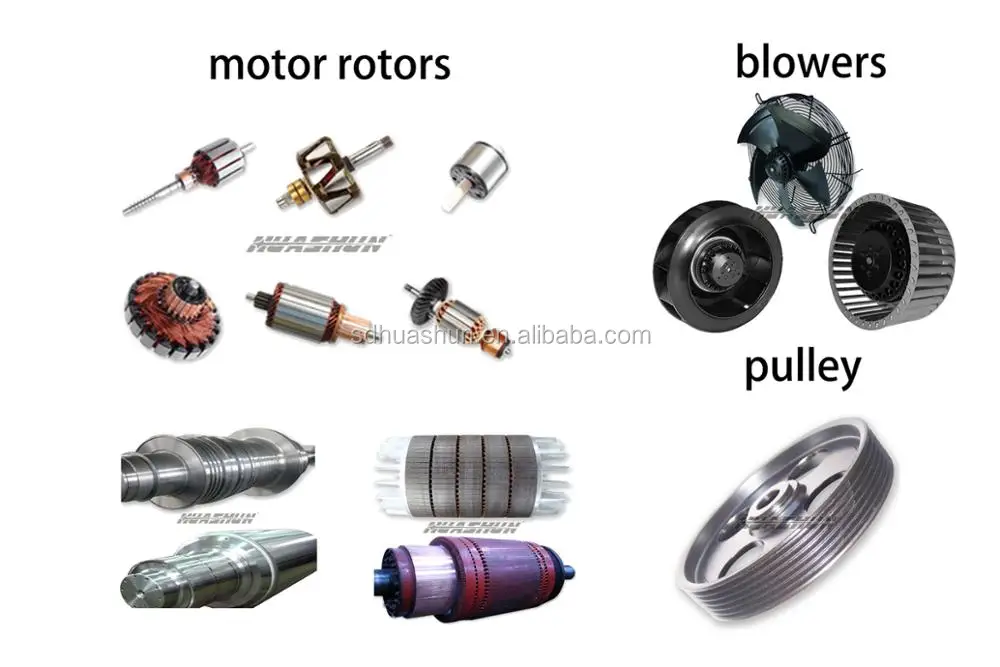

Application Areas:
For high speed rotational bodies , such as blowers, motor rotors, pulleys, electric tools, main shaft, woodworking machines, etc.
