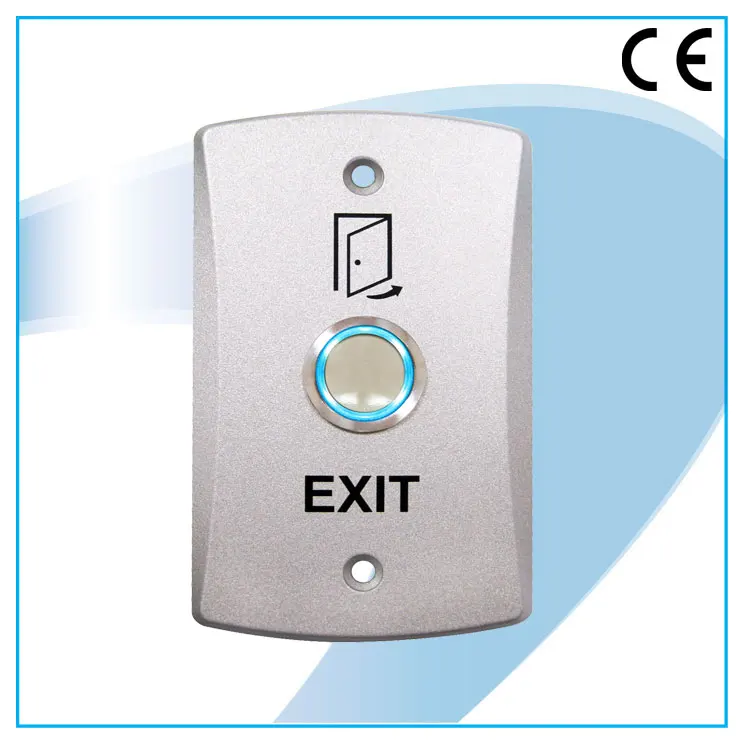

CE DC 12V Exit Push Button With Blue LED

• Size:5(plate) / 21(total depth) x 70(W) x 115(L)mm

• Hole distance : 83mm

• Material: Zinc alloy

• Power : DC 12V 1A

• LED : DC12V 15mA

• Life: 3,000,000 cycles (Mechanical)

           200,000 cycles (Electrical)

• Key stroke:1.0mm

• Weight : 132g±5%

• Operating temperature:0℃ ~ 55℃

• Humidity:10%~80%

•N.O. / N.C. / COM.

•Using OMRON basic switches.

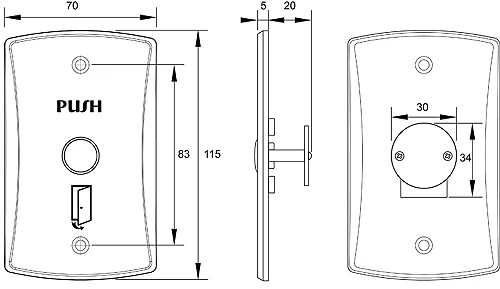

Dimension: Unit(mm)

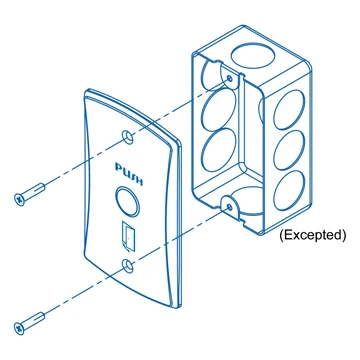

How to assembly

We reserve the right to change the specification without prior notice or obligation!
