PLASTIC pharmaceutical spray liquid bottle making machine(one step IBM machine)
- Category: >>>
- Supplier: Zhejiang Keli Plastic Machinery Co. Ltd.
Share on (236434511):
Product Overview
Description
Product Description

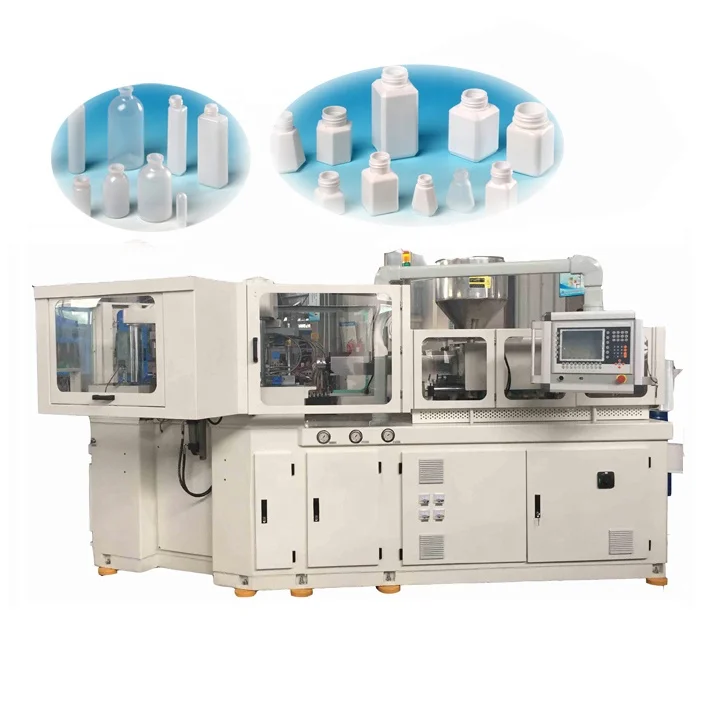

Automatic injection blow molding machine for plastic bottles.
It is suitable for plastic,such as PP.PE.PS.ABS.
producing plastic containers and bottles in all shapes.
producing plastic containers and bottles in all shapes.
Injection blow molding machine:
Full-Automatic PP,PS,PE,ABS Bottle injection Blow molding Machine.
producing plastic containers and bottles in all shapes.
producing plastic containers and bottles in all shapes.
Specification
Keli injection blow molding Machine use famous brand hydraulic,electrical,pneumatic parts: | ||
Yuken---Atos---Rexroth | ||
ABB---Omron---Schneider---Techmation---B & R | ||
Festo-- | ||
Injection system | unit | parameter |
Dia.of Screw | mm | 45 |
Screw L/D | 22：1 | |
Max Theoretical shot volume | cm3 | 238 |
Injection weight | g | 160 |
Plasticing capacity approx | g/s | 40 |
Max screw stroke | mm | 150 |
Max screw speed | rpm | 10-235 |
Total power for charging barrel | kw | 11.8 |
No.of heat zone | qty | 5 |
Clamping system | ||
Injection clamping force | kn | 500 |
Blow clamping force | 96kn | 70 |
Opening stroke of mould platen | mm | 120 |
Max swing radius | mm | 480 |
Liftion height of rotary table | mm | 60 |
Max platen size of mould(LXW) | mm | 480X370 |
Min mould thickness | mm | 240 |
Mould heating power | kw | 4.8 |
stripping system | 3.6 | |
Stripping stroke | mm | 215 |
Dry cycle time | S | 2.9 |
Driving system | ||
Motor power | kw | 29.1 |
Hydraulic working pressure | mpa | 14 |
Product dimension range | ||
Range of formability product | ml | 2-750 |
Height of formability product | mm | ≤210 |
Dia.of formability product | mm | ≤100 |
Other | ||
Compressed air pressure | mpa | 0.7-0.9 |
Compressed air discharge rate | m3/min | 0.6 |
Cooling water pressure | mpa | 0.3-0.4 |
Total power | kw | 44.5 |
Operating power | 34-48% | |
Overall dimension(LXWXH) | mm | 3850X1550X1950 |
Machine weight approx | T | 6 |
Keli products range:

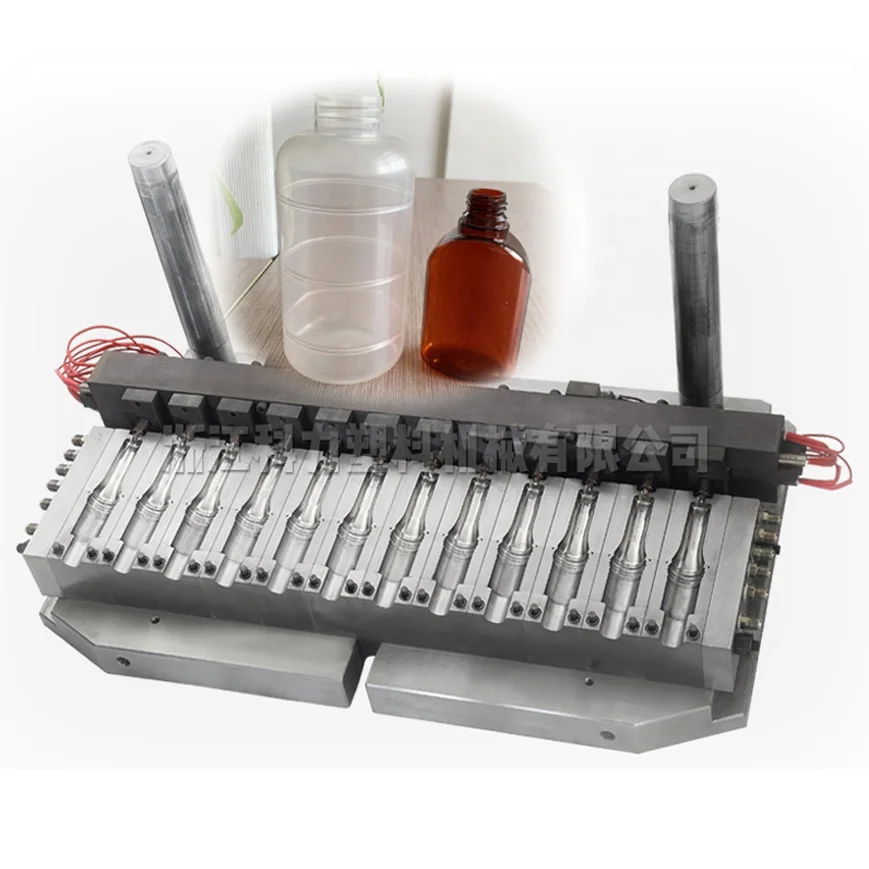

one step injection blow molding machine,one step injection stretch blow molding machine,injection blow mould,injection blow mold,plastic cap mould for PP,PE,PS,ABS,PET cosmetic,pharmaceutical and food bottle,jar packaging.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Keli is a professional and leading manufacturer only focusing on one step injection blow molding machine（IBM）,
one step injection stretch blow molding machine and related injection blow mould,injection stretch blow mould for
pharmaceutical bottle,cosmetic bottle and food bottle packaging industry.Till now we have more than 20 years experience.
one step injection stretch blow molding machine and related injection blow mould,injection stretch blow mould for
pharmaceutical bottle,cosmetic bottle and food bottle packaging industry.Till now we have more than 20 years experience.
Zhejiang keli plastic machinery co.,ltd was established in 1999.It's a provincial science and technology enterprise as well as national high and new technology industrial enterprise that reseaches,manufactures and sells one step injection blow molding machine (IBM) as well as related components and molds.the machine is widely used in medical,food and cosmetic packaging field.
The SZCX series injection blow molding machine consists of worldwide known hydraulic,pnematic and electric components realizing their combination.featuring in precision,high efficiency, enery-saving.,environment-friendly.easy operation ,high output and good
quality advantages. The self-research SZCX series injection blow molding machine integrates injection molding and blow molding in one machine,won torch project 2010.It has self-intellectual properies,been authorized many patents for invention.the technical level is on the top in china in the field. Our machines have exported to many countries,like
America,Canada,uk,Germany,Russia,Brazil,Turkey,Malaysia,Mexico,philippines,Indonesia,india,Vitenam and Egypt.etc.
The SZCX series injection blow molding machine consists of worldwide known hydraulic,pnematic and electric components realizing their combination.featuring in precision,high efficiency, enery-saving.,environment-friendly.easy operation ,high output and good
quality advantages. The self-research SZCX series injection blow molding machine integrates injection molding and blow molding in one machine,won torch project 2010.It has self-intellectual properies,been authorized many patents for invention.the technical level is on the top in china in the field. Our machines have exported to many countries,like
America,Canada,uk,Germany,Russia,Brazil,Turkey,Malaysia,Mexico,philippines,Indonesia,india,Vitenam and Egypt.etc.

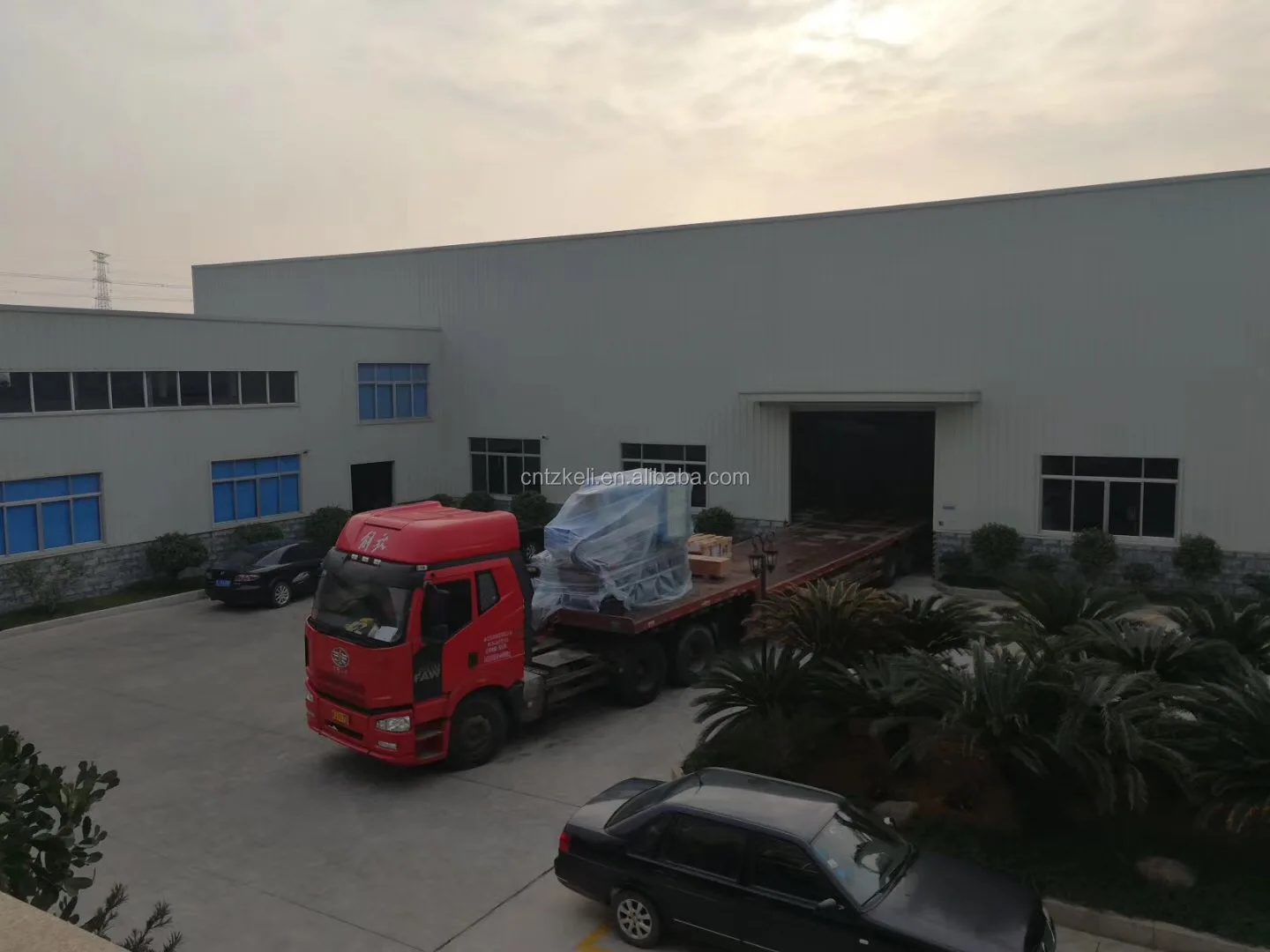

Packing & Delivery

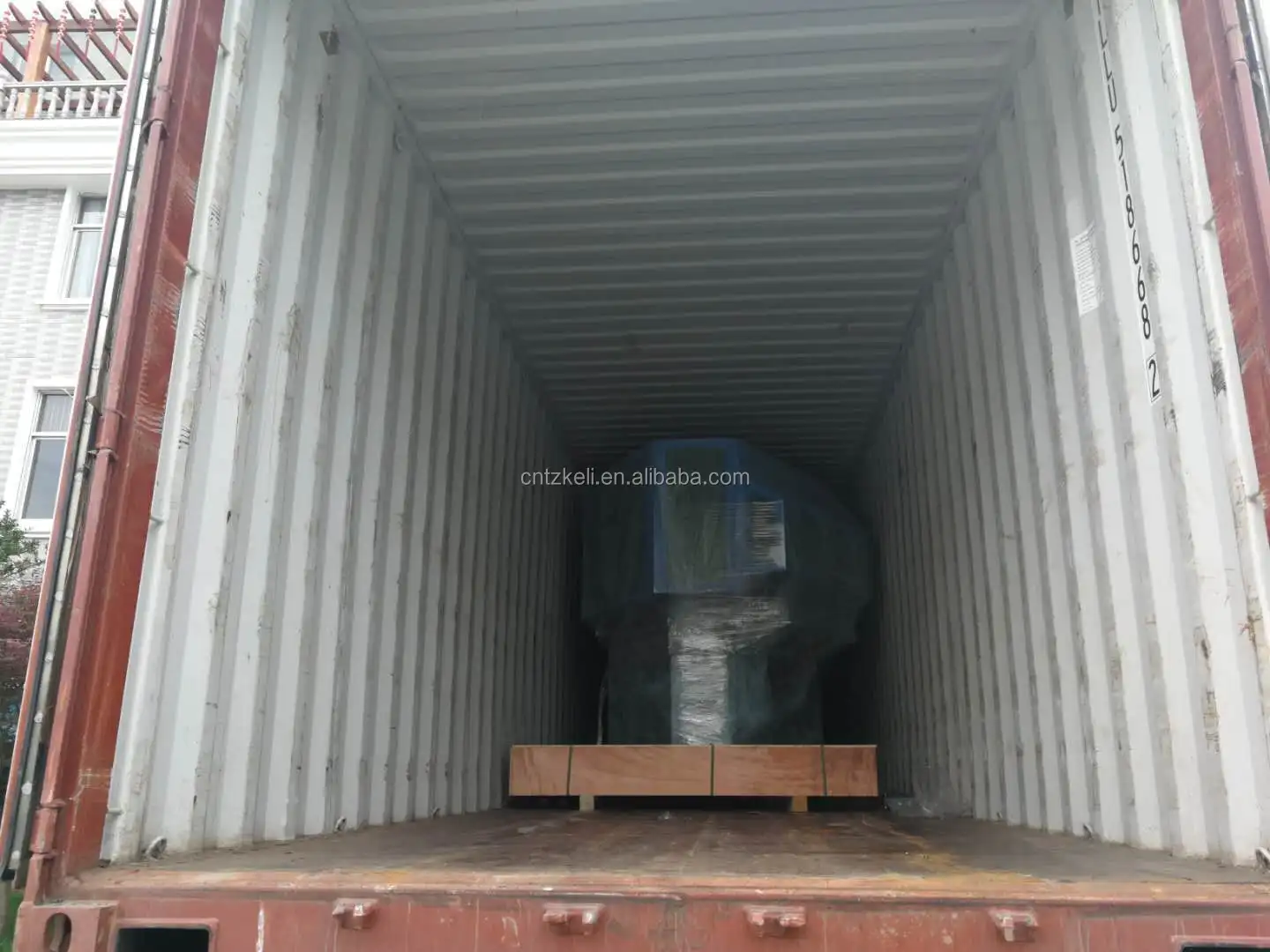

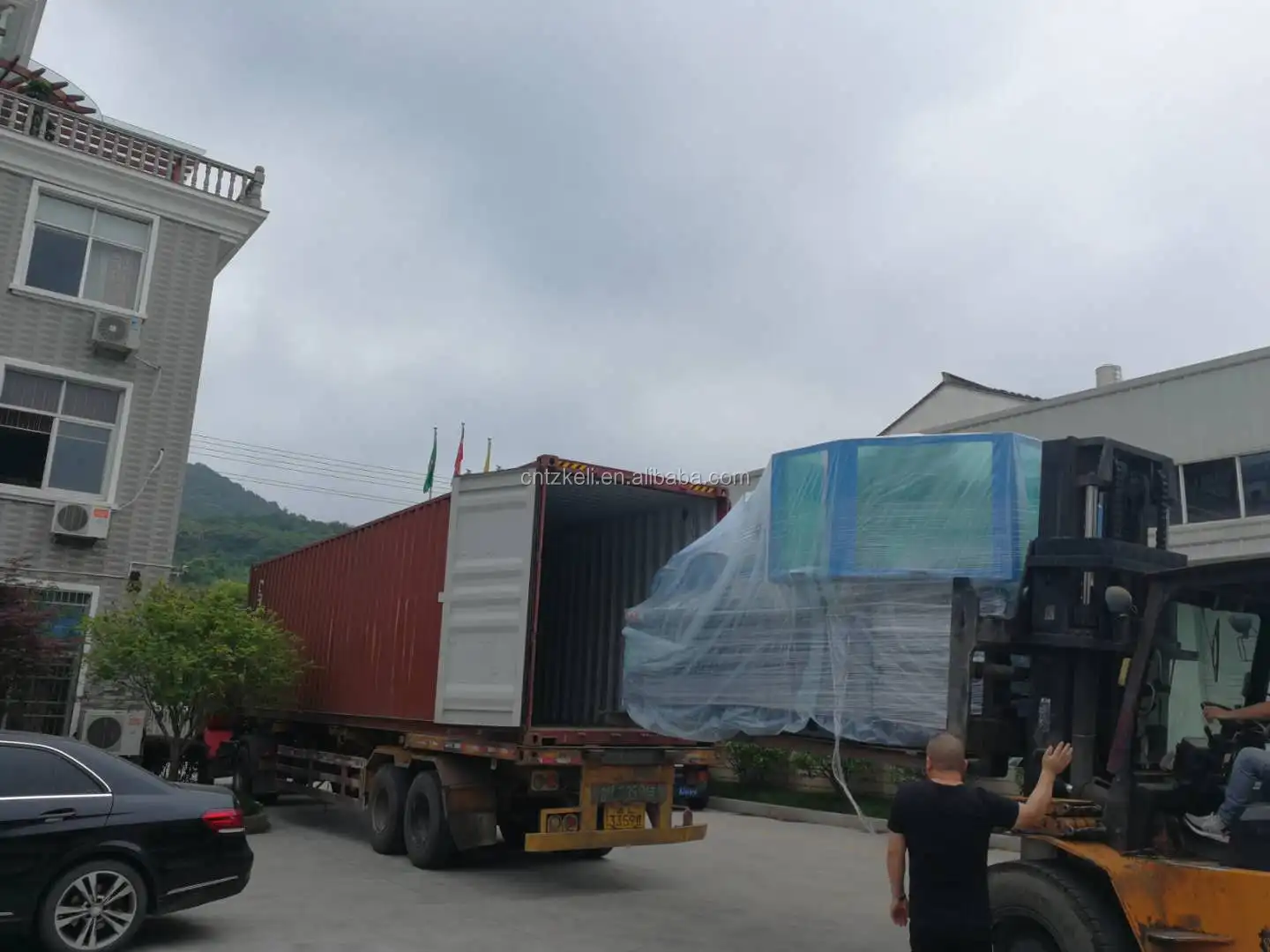

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.when we deliivery the machines,we use wound film to wrap it to keep it clean and secure.
FAQ

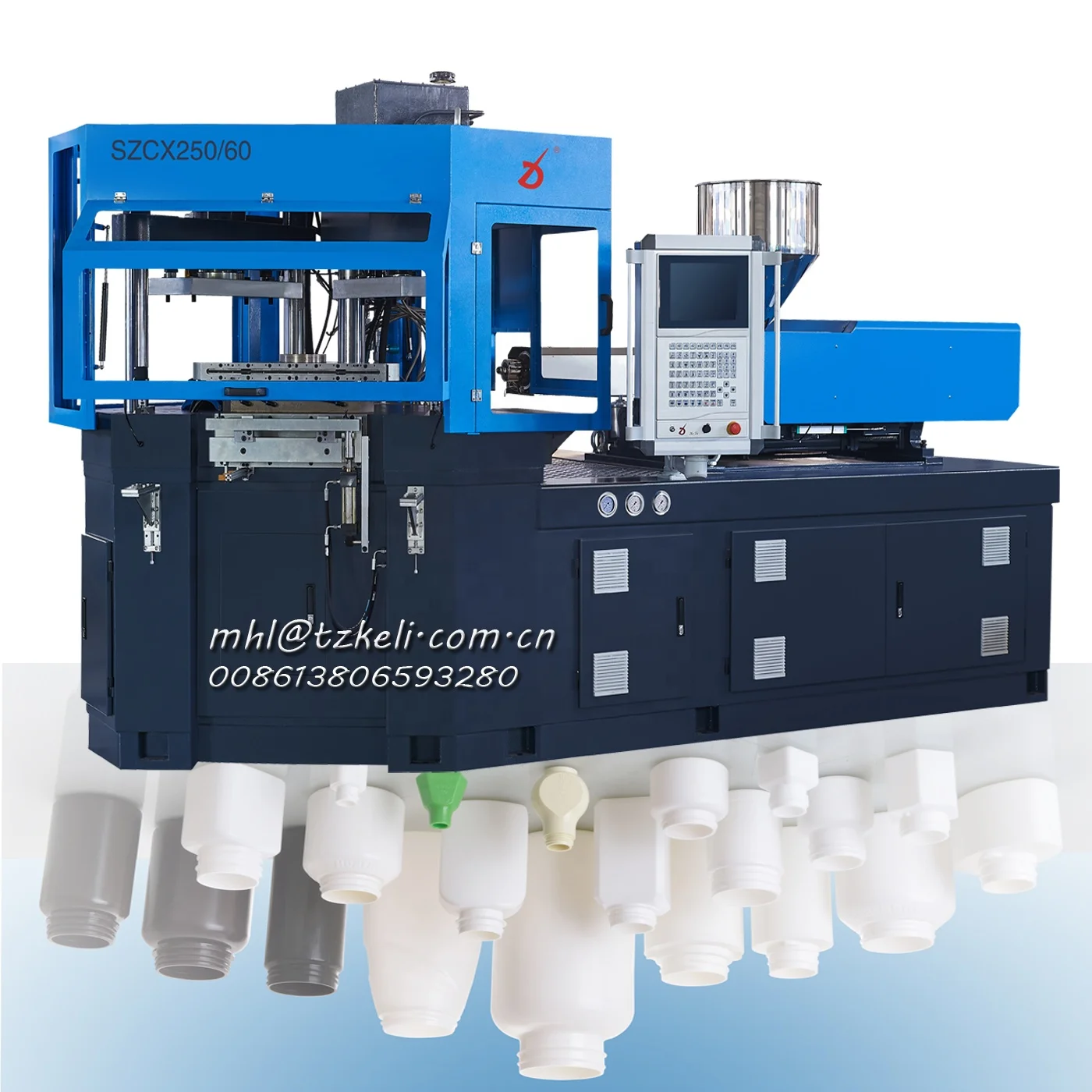

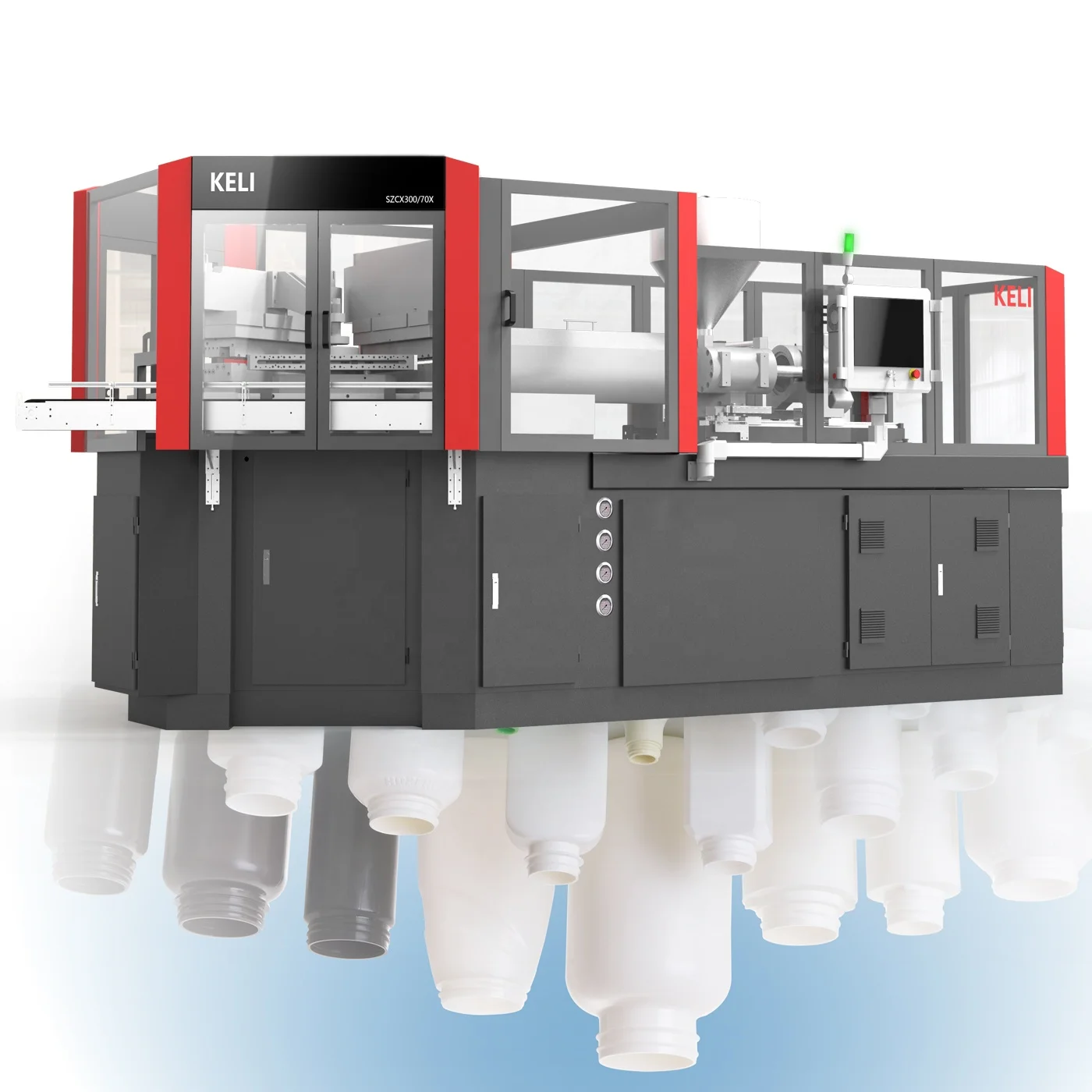

We available SZCX130/30,SZCX160/45,SZCX250/60,SZCX160/50X,SZCX300/70X,SZCX700/135X model for your choice.Model with X is specially for european market,and favored by most of customers,because all hydraulic parts are postioned above the molding area to avoid oilleak into molding area to contaminate the plastic bottles.Pls more details,pls contact me:KATE MEI.
Wechat:008613806593280.
Mobil:008613806593280.
Email:mhl@tzkeli.com.cn
Wechat:008613806593280.
Mobil:008613806593280.
Email:mhl@tzkeli.com.cn
