RFID UHF 433.9MHz Long range reader for access control system

Product Description
•RFID Proximity advanced long range reader PFH-9210-60 Proximity hand free system with High technologies performance for 60 cm .
•The Pegasus PFH-9210-60 is a reader for vehicle or personal access application. Especially for vehicle control, the RFID Hand free card can be stick to any where within the car even through windshields and clothes but not on the metal and to get access to the gate or any electrical door, just approach to the effective distance without getting off the car or opening the window.
•Supporting Dual Frequency (125KHz / 13.56MHz) (Optional).

Features
•Built-in Beeper sound
•PFH-9210-60 is reading proximity card without powerful battery for access control
•Epoxy potted for environmental protection
•Weather resistant and water proof

Specifications
•Dimensions: 270(L) x 273(W) x 39(H)mm
•Weight: 2.0 kg ± 5%
•Operation temperature: -20°C ~ 60°C
•Humidity: 10%~90% RH, Non condensation
•Power supply: DC12V, 200 mA
•Mounting Surface: Mount, waterproof
•Card: 125KHz EM proximity card
•Reading range: Max. 60 cm / 80cm(Optional)
•Frequency of operation: 125KHz
•Interface: RS-485, RS -232C,  Wiegand,  Wiegand 42 bit(optional)

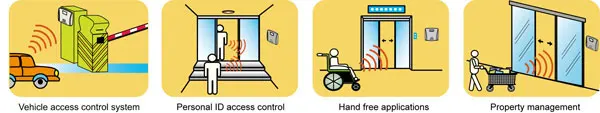

Applications


Optional accessory
The bracket for PFH-9210 series : PGV-BRACKET/205N

Ordering information

PFH-9210-60-1/R2: 433.9MHz RFID reader, with epoxy,RS-232

PFH-9210-60-1/R5: 433.9MHz RFID reader, with epoxy,RS-485

PFH-9210-60-1/W: 433.9MHz RFID reader, with epoxy,Wiegand

PFH-9210-60-1A: 433.9MHz RFID reader, with epoxy,ABA


We reserve the right to change the specification without notice or obligation!
