IC card reader 13.56MHz MF Ultralight/DESFire/Felica/NFC/ISO14443B/15693 Card Reader

Product Overview

Description



Example Applications

Features

•Proximity / RF / Remote reader to send out Wiegand or TTL or RS-485 or RS -232C or USB or ABA or other signal.

•Supplies buzzer & LED responding signal.

•125KHz ASK type and various Wiegand format (26/34/42 bits) output.

•Latest compact size.

•contactless/proximity reading technology provides an user friendly solution access controller-no swiping or contact required.

•Passive contactless card and keyfobs require no batteries.

•Weather resistant. "Epoxy Potted" construction ensures consistent performance in the most adverse environment.

•Easy to install, low profile and designed for indoor or outdoor application.

•With CPU watch-log function to prevent malfunction.

•The Pegasus proximity readers are compatible with proximity card and proximity keyfob ... etc.

Specifications
•Dimension: 118 (L) x 75(W) x 17(H) mm
•Weight: 250g ±10%
•Mounting: Surface mount
•Reading range: 5~ 8cm
•Frequency of operation: 13.56MHz
•Power supply: 5VDC±10%, 12VDC±10%
•Format: Wiegand 26/34/42/44/64 bits / ABA Track2 / RS232 / RS485 / USB
•Operating Temperature: -10°C ~ 75°C
•Humidity: 10%~90% RH, Non condensation


 Optional Accessories

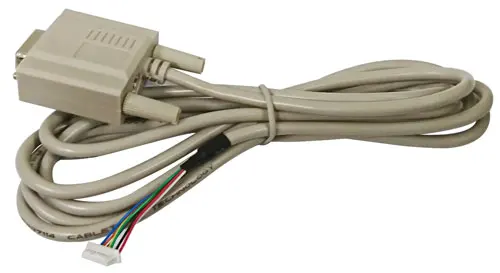

l          R-12-310R2-1800-1 : RS-232 Cable

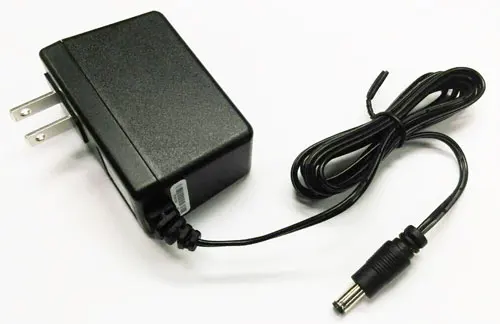

l          PG-ADAPTER/100-240-3 :100-240V Adapter

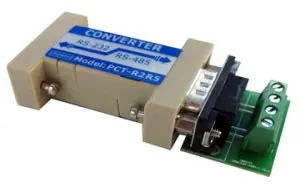

l          PCT-R2R5: RS-232 to RS-485 Interface Converter

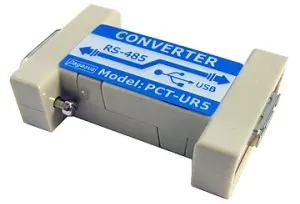

l          PCT-UR5: USB to RS-485 Interface Converter

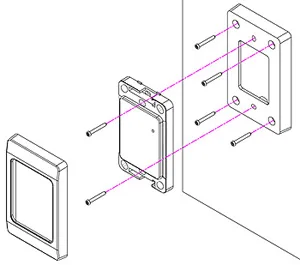

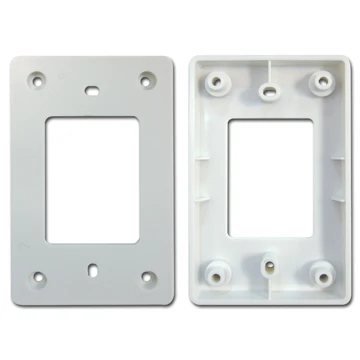

l          R-21-310-3 : Insulator for PUA-310V1

Dimension: 119.6(L) x 76.6(W) x 15(H)mm

Feature: Avoid intervention

Weight: 40g±5%

Material: Acrylic



Ordering Information For Proximity Reader

*U1 : Plug & Play, USB, keyboard emulation(without any PC driver)
*U3 : Serial port emulator thru USB interface

*M0 : Reading 13.56MHz UID (Serial No.)
*M1 : 13.56MHz sector number assigned by Pegasus for specific customer. (with proprietary key)
*M8 : Reading card number from 13.56MHz block 8 by factory defaulted key.

*M2 : For 13.56MHz read/write application (customized firmware),
*U2 : USB, Reader/Writer (with software)

*Standard RS-232 output format: <STX>000043090892<CR><LF><ETX>
*Standard RS-485 output format: <STX>000043090892<CR><LF><ETX>







We reserve the right to change the specification without prior notice or obligation!
