Door lockset mortise lock

Product Overview

Description

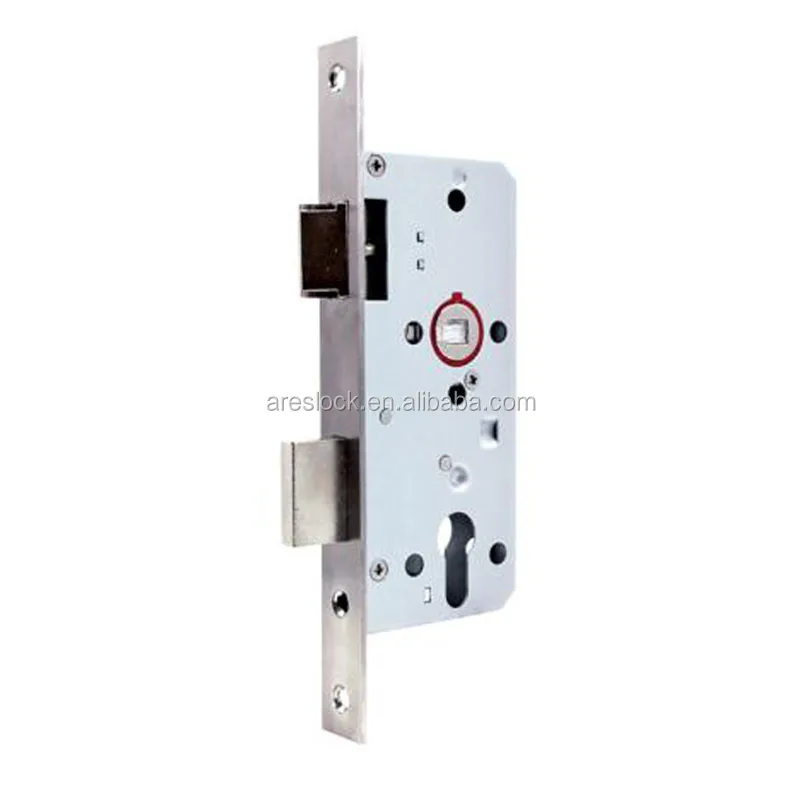

5572K LOCK BODY

Features

According to DIN 18. 250 class 3

For wooden or steel doors

For single-leaf steel doors

Optional for rebated or non-rebated doors

Prepared for profile cylinders

With key action

Deadbolt 2-tuens





Technical data

Follower: 7mm/8mm/9mm

Distance: 72mm

Backset: 45mm/50mm/55mm/60mm

Forend

Type: round head/square head

Thickness:3mm

Width: 24mm

Forend finish

Stainless steel: stain stainless steel  polished stainless steel

Vacuum metallizing: stain brass/PVD/AB/AC

Accessories:

Striking plate

Pocket

Lock and striking plate fixing screws
