    Corrugated Cardboard Cutting Plotter, Cutting Machine, Cutting Table









Product Description





RUIZHOU CNC Cutting machines are specially designed for soft material cutting, especially in cloth cutting.


The cloth cutting machines have been widely used in garment, clothing, apparel, textile and footwear areas.













 Characteristics of Cloth Cutting Machine.


1. Knife cutting, not by laser. So it causes no burning to the materials. No smell.


2. Accurate. oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.


3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.


4. Convenient. Both flatbed table and  auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.


5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.


6. User friendly. Operation is easy. A free training can be offered.











Technical Parameter of Cloth Cutting Machine.

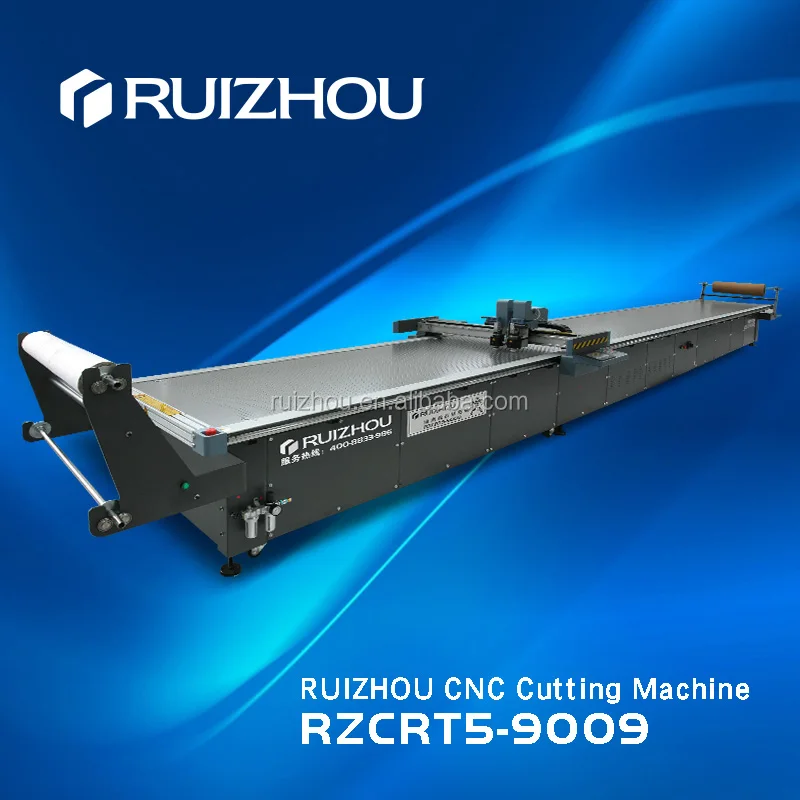

ModelRZCRT5-9009
Cutting speed0-1200mm/s
Applicable thickness0.4mm-25mm(can be up to 50mm according to the material thickness)
Cutting MaterialsCloth, textile, fabric, PVC, PU,  etc.
ToolsOscillating cutting tool
Hobbing cutter, milling cutter, creasing wheel, punching tool. (optional)
Marking pen

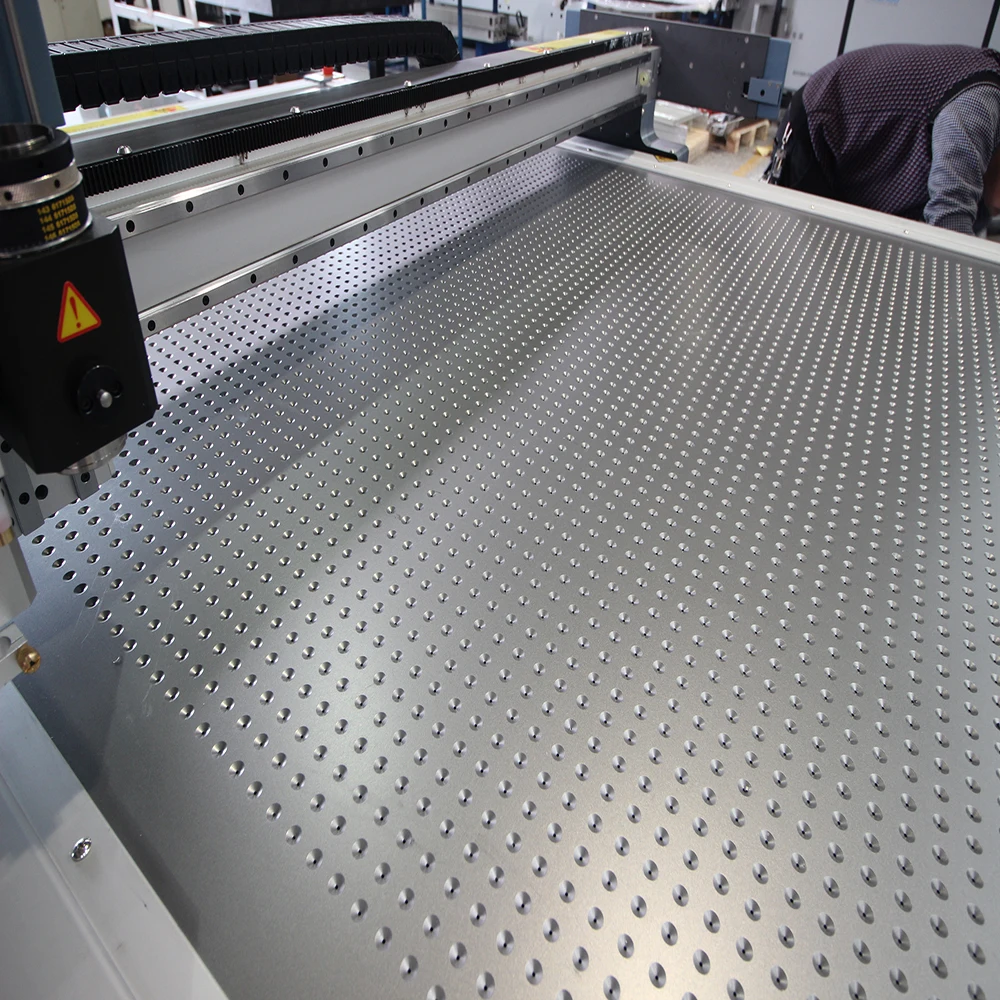

Material fixing methodDivisional vacuum absorption
Mechanical resolution0.07mm
Software resolution0.025mm, 0.01mm, 0.1mm (optional)
Interface of transmissionNetwork port
Buffer CapabilityOnce fast transfer
Command systemHP-GL and GP-GL compatible formats
Digital Control PanelLiquid crystal display and touching button
Transimission MaterialsImported staight line guide track, synchronous belt
MotorServo motor
Cutting Blade RotateVibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min
Machine Working VoltageAC 220V ± 10%, 50HZ
Air Pump working VoltageAC 380V ± 10%, 50 HZ

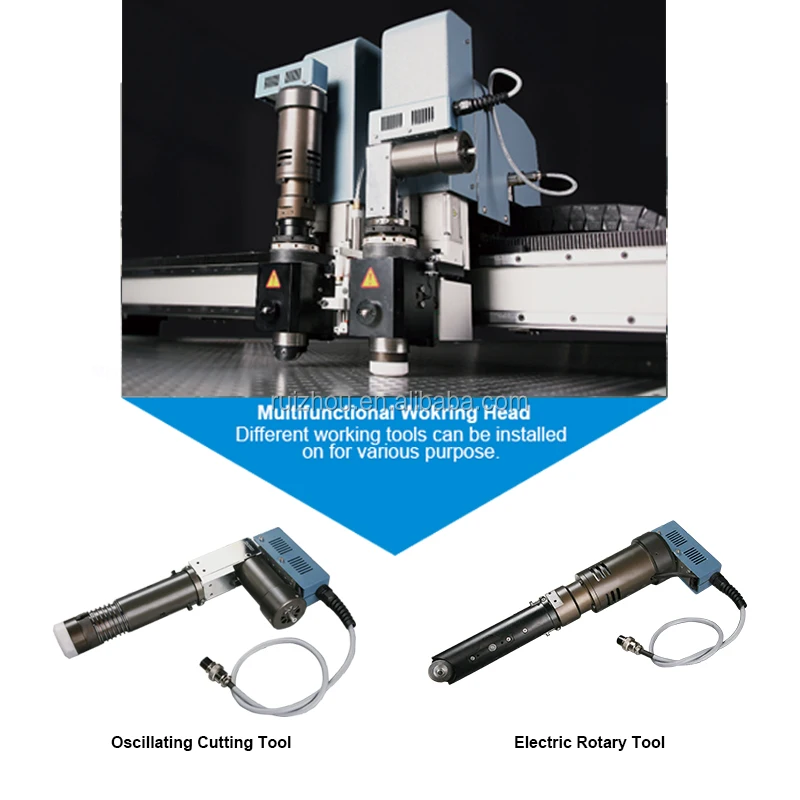

Tools and Functions


  The Tools and Functions of Cloth Cutting Machine.





Functions and tools--.jpg


The Tools and Functions Cloth Cutting Machine.





1. Oscillatin Cutting Tool


 It is fast, accurate and no burning nor smell.





2. Electric Rotary Tool


 It is more fast an low noise.











The Details Advantages of Cloth Cutting Machine.








2--














Cutting Effect


1.Accurate


The cutting machine meets the cutting precision: 0.3mm to 0.5mm.





2.Smooth


The Oscillating Cutting Tool assures our cutting machines cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual workers.





3. Delicacy


With our cutting machine for garment making, you can easily meet the market needs for customized cloth, garment or designs.





4.Multi-layer


This garment plotter can cut several layers materials, and very suitable for some customized production.













Client show





Now a lot of world famous firms are our partners. They are using Ruizhou cutting machines.


Partners 2.jpg








RUIZHOU requite her customers with sincerity. She wins the market with good services, build brand with good quality, strive for excellence with technology.


Over the past years, RUIZHOU has received trust and praise from our customers.


Our product sold to European, Korea, India, Mexico, Malaysia, Vietnam, Hong Kong and Taiwan.


The clients we have severed, at home and abroad, up to 5000 famous companies, including:


ST&SAT, BELLE, DAPHNE, NIKE, ADIDAS, Guangzhou Honda, Guangzhou TOYOTA, etc.

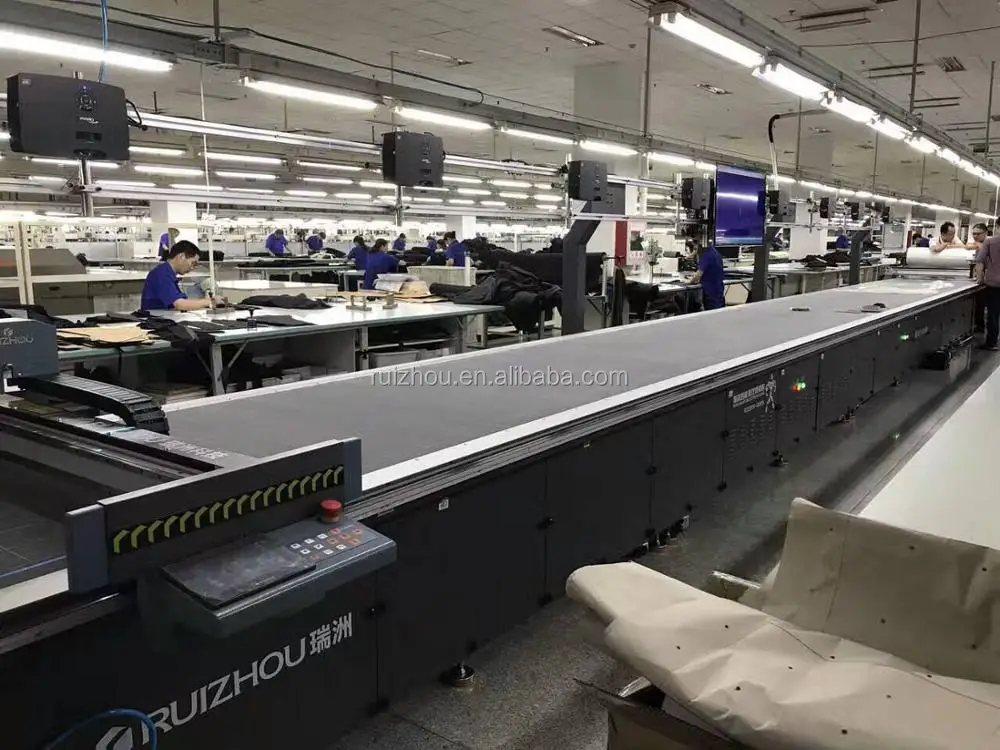

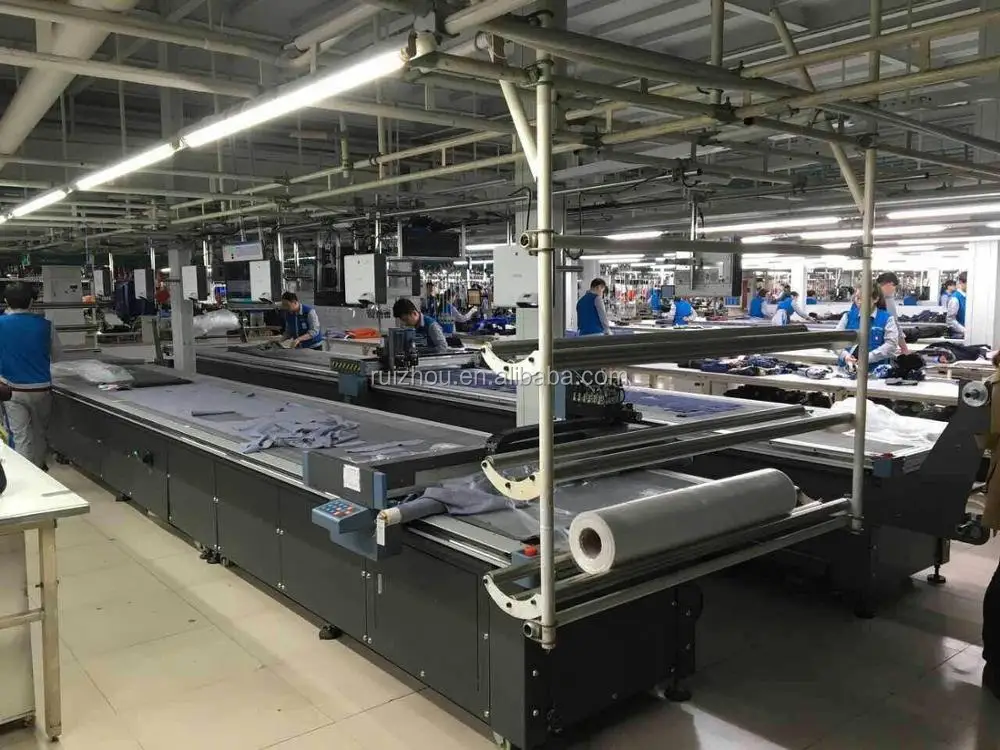

Customer Application










Packaging
















Company Shows


Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.


RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.









1. 20 years history in CNC cutting technology;


2. The first and biggest CNC cutting machine manufacturer in China;


3. We focus on the research and development of CNC knife cutting technology and related CAD software over the past 20 years;


4. The quality and service are regarded as the life of our corporation;

5. We will never be satisfied until you are satisfied;


6.Ruizhou is based in Foshan, aiming at the global market.








Certficate






CE, ISO


Utility model patent


Design Patent
Software copyright
TOP 10 Footware Machinery Enterprise,
TOP 10 Innovative Enterprise,
CTP(China Torch Plan) Key New High Technology Enterprise.


Foshan Institute of Supervision & Test on Product Quality, etc.








Fairs









Products We Supply ________________________________________________________________


Three types of cutting machines and some software are available from RUIZHOU.








Related Products

CRT related products































































Item NumberWorking Area
RZCRT5-1007E1000X700MM
RZCRT5-1510E1500X1000MM
RZCRT5-1813E1800X1300MM
RZCRT5-2516E2500X1600MM
RZCRT5-2516EF2500X1600MM
(with automatic feeding shelf)
RZCRT5-3016E3000X1600MM
RZCRT5-3016EF-2H3000X1600MM
(with double cutting head )
RZCRT5-3625E3600X2500MM
RZCRT5-3625EF-2H3600X2500MM
(with double cutting head )
RZCRT5-90099000X900MM
RZCRT5-9009-2H9000X900MM
(with double cutting head )
RZCRT5-12009-2H12000X900MM
(with double cutting head )
RZCRT5-12016-2H12000X1600M
(with double cutting head )
