Electric and Manual Type Pallet Tilter 1000KG Capacity Tilt Master

Product Overview

Description

Handle can be turned and locked in position away form the work area .
Applies to both sitting and standing positions.

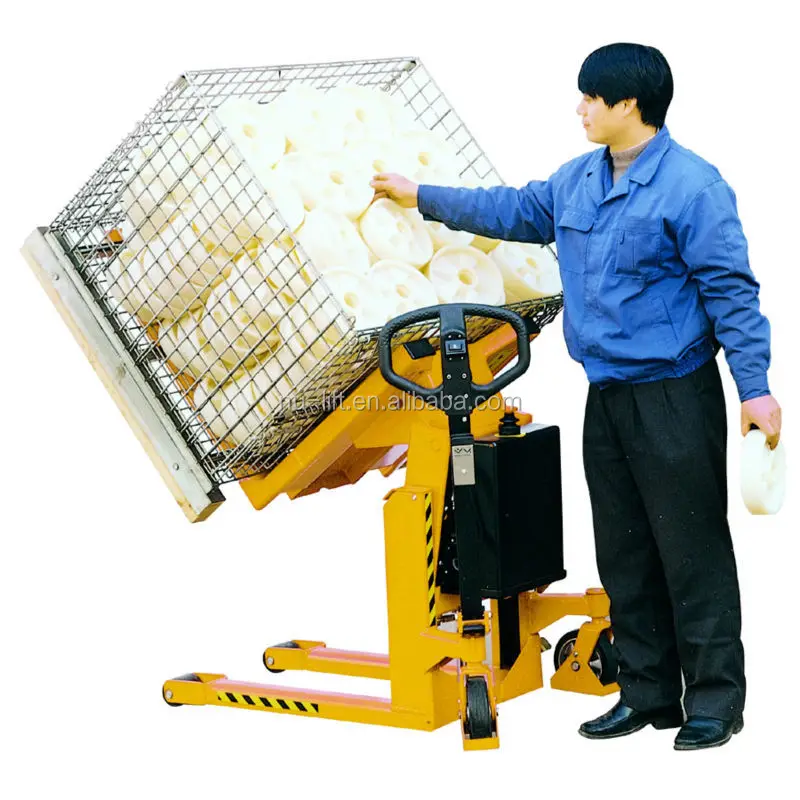

Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up.
Forks can be tilted up to 90.
Both are supplied as standard with parking baake and foot protectors.

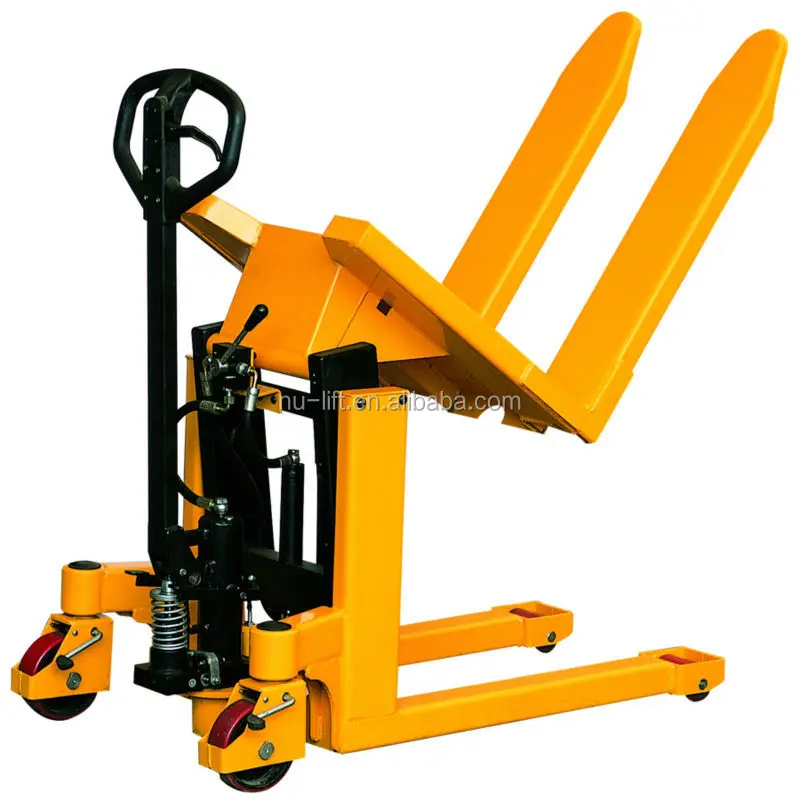

Manual type: lift and tilt are by hand hydraulic action.
Electric type: lifting and lowering function built into the handle and the tilt action is operated by remote contrrol. this allows the to adjust the tilt during filling or emptying crate or box.



                                               LT10M  manual type



                                         LT10E electric type(Electric lifting and electric tilting)

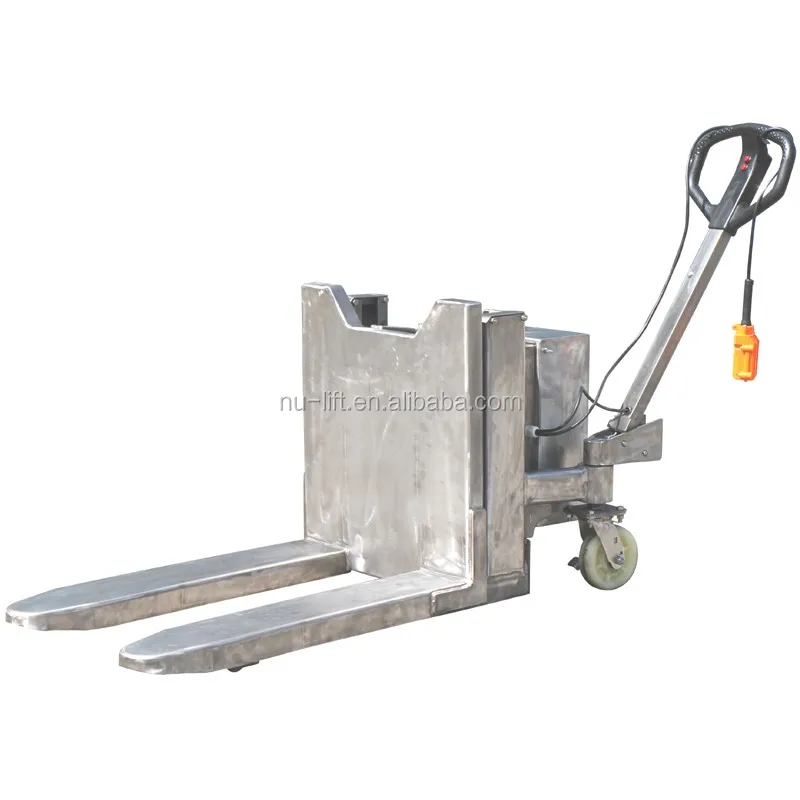

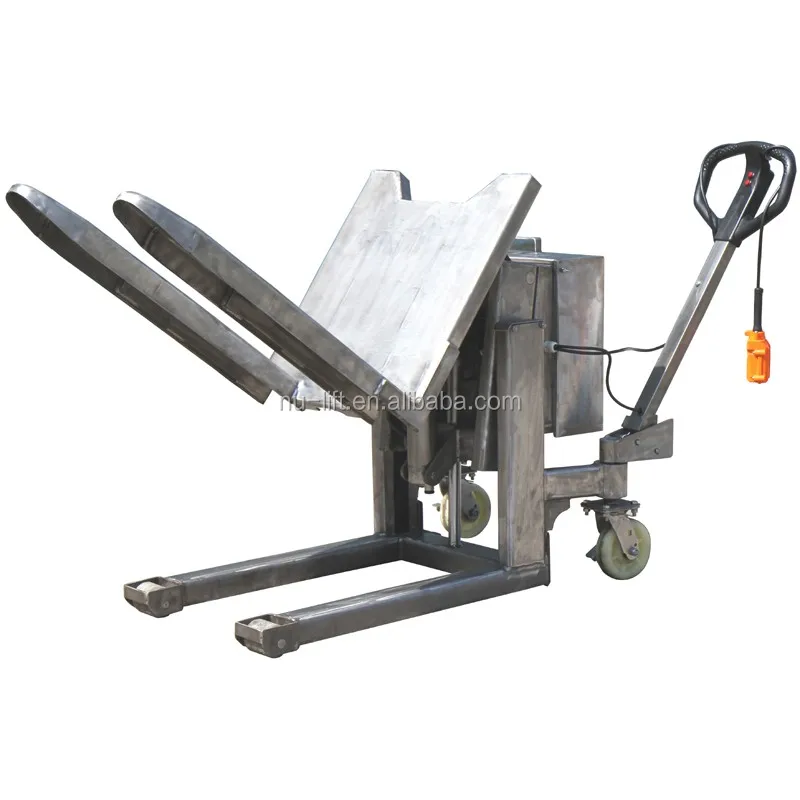

                                                    Stainless Steel Electric Type

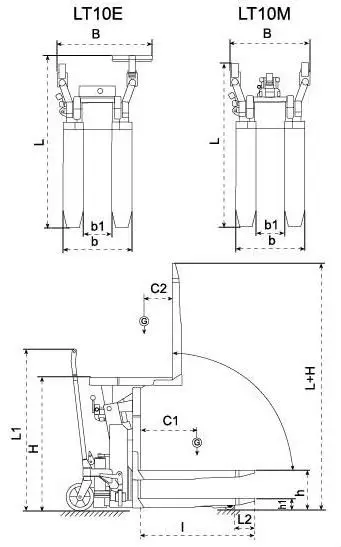

Model			LT10M (Manual)	LT10E(Electric)
Capacity (kg)		(mm)	1000	1000
h	Lifting Height,Vertical (mm)	(mm)	285	285
h1	Min.Fork Height (mm)	(mm)	85	85
l	Fork Length (mm)	(mm)	800	800
l1	Handle Height (mm)	(mm)	1138	1138
b	Overall Fork Width (mm)	(mm)	560	560
b1	Width Berween Forks (mm)	(mm)	234	234
l2	Fork Tip Length From Roller (mm)	(mm)	135	135
b	Overall Width (mm)	(mm)	638	638
l	Overall Length (mm)	(mm)	1325	1410
H	Overall Height,Raised (mm)	(mm)	950	950
H	Overall Height,Lowered	(mm)	750	750
c1	Load Centre		Min.200mm,Max.400mm
c2	Load Centre		Min.200mm,Max.420mm
	Power Uint			0.8kw/12v
	Net Weight (kg)	(kg)	178	185
