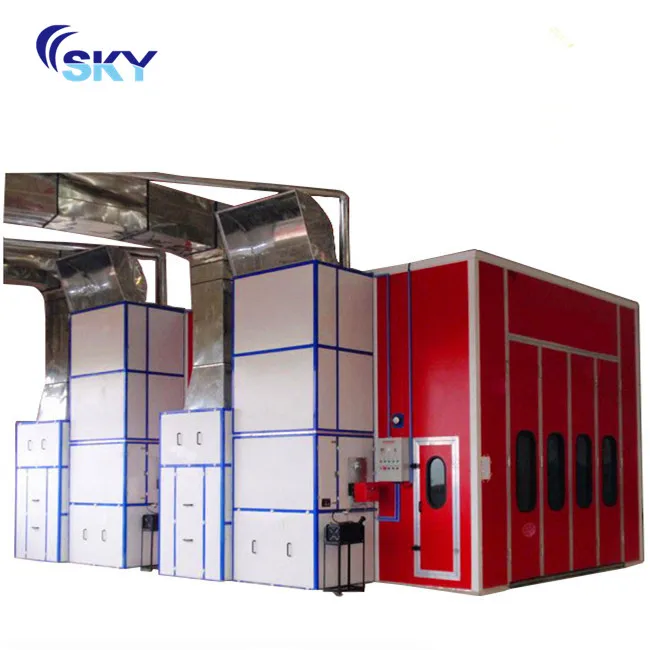

2021 bus and truck Baking Oven/ spray booth/ painting booth

Dimensions:

Length (mm)

Width (mm)

Height (mm)

Booth Outside

15150

6900

5400

Booth Inside

15000

5000

4800

Entrance Size

4000

4800

Personnel Door

800

2000

Features:

Total Power 30 kw

Noise < 80 db

Frame System

- Rockwool 50mm -  for working temperature higher than 80

- EPS foam plate 75mm -  for working temperature less than 80

Basement System

- 2 rows of grid plates & 3 rows of diamond plates

Heating System

- 2 sets of diesel burner, 200000 kcal each, Oil conumption 12 ~ 14 kg/h

- Heating exchanger -  stainless steel

- Working temperature 60 ~ 80

- 30-40 minutes to get to working temperature

Air System

- 4 sets of intake fans, 4 kw each, air flow 56000 m3/h total

- 2 set of exhaust fan, 4 kw each, air flow 28000 m3/h total

- 0.3 m/s air velocity

Filter System

- Dual filtering -  primary filter + ceiling filter

- Environmental protection filter

Illumination

- 16x4 tubes (48" long, 36w lamps) on the ceiling

- 12x4 tubes (48" long, 36w lamps) on the wall

E-controlling System

- Spray&Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

** Included

- All hardware, fasteners, and sealants, A couple of ramps

*** Optional

- Infrared Lamp alternative, about 60 kw

- Water-proof roof optional for outdoor booth installation.

- 220V or 380V
