1. The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.
2. The motor is controlled by a transducer (inverter) which is available for automatic timing. It is power saved and helps to work stably.

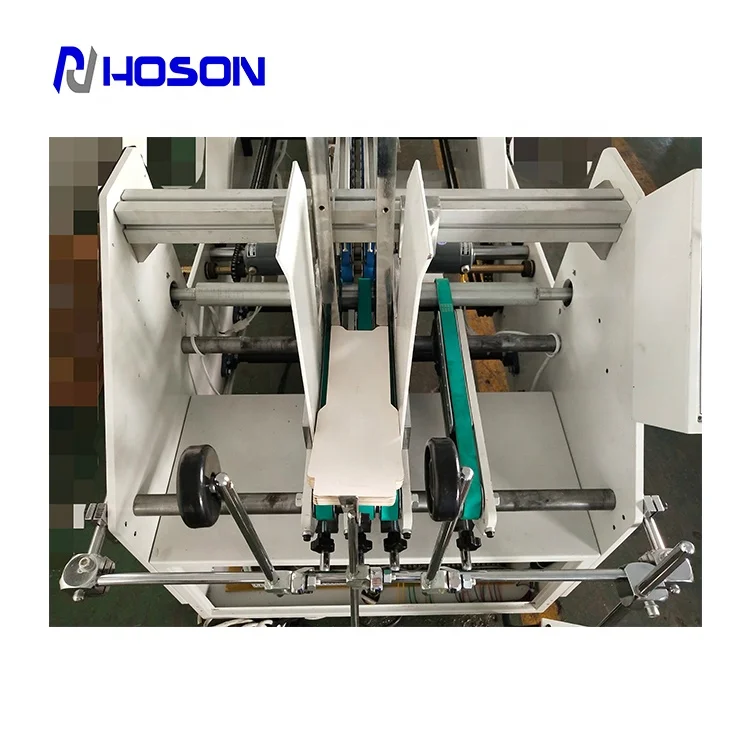

3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine, to make gluing more stable and firm.
5. The machine is able to fold and glue straight line boxes. In the pre-folding part, the first fold at 180°, the third fold at 90°. The second fold and the fourth fold box at 180°. Options for 180°-135° in pre-folding part is available.
6. An infrared photo-electric control system is in this machine. Pressing unit and counter will work synchronously with the feeding speed. Machine will slow down and stop running when no sheet there to reduce waste.
7. Small box like out-put size at 3omm is able to be done after the special design according to customer requirement.

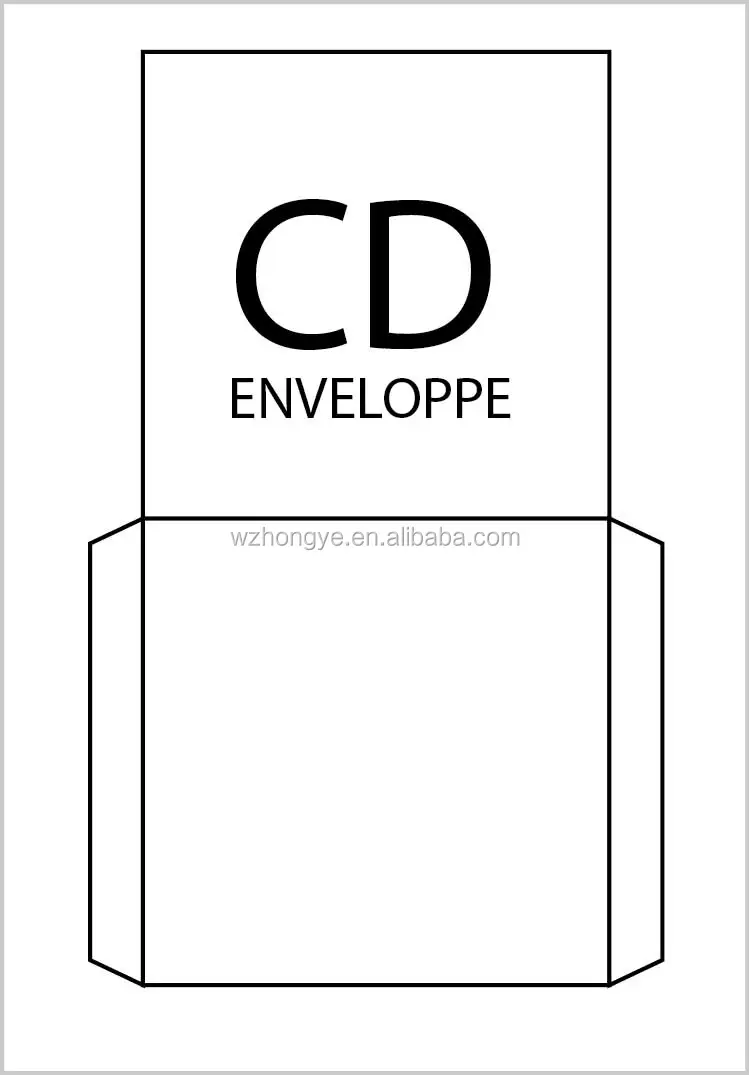

8. With extra up glue unit and turning plate, it can fold and glue the CD DVD Envelope type box.
ZH-880PFT (Pre-Folding Type Folder Gluer Machine) is designed for 4-fold straight line box.
Box Type
A Max
A
Min
B
Max
B
Min
Straight Line Box
580-110mm
*60mm
580-70mm
CD Type Box
Packaging & Shipping
Our Services
According to the customer's requirement, we will arrange one technician to help you to install the machine and train the worker, but all the expenses like round-trip air tickets, accommodation, meals and salary USD80/day, incurred therefrom shall be born by the buyer.
Company Information
We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder and gluer machinery in Wenzhou,Zhejiang,China
Through about 15 years' efforts, a mode integrated with production-sale-service has been built and completed.
Our main series of folder gluers are 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. We have these advantages: special design, easy operation, quick adjustment and high automation.
Warranty
Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered by the customer. Please note that the belts are excluding the one year's warranty.
Optional Equipment
Germany hhs Spray Gluing System Cold Glue Chinese Spray Gluing System Cold Glue
