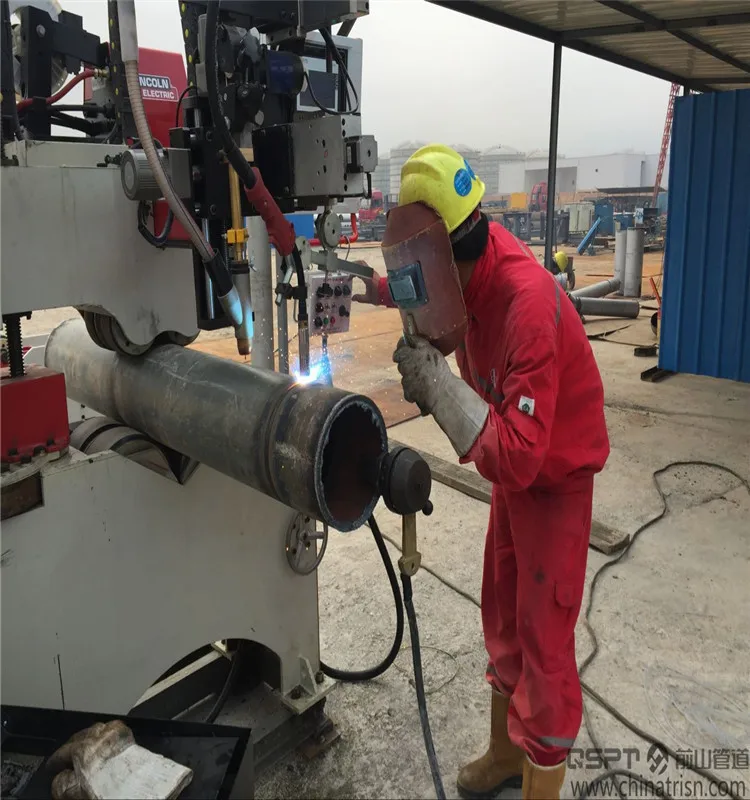

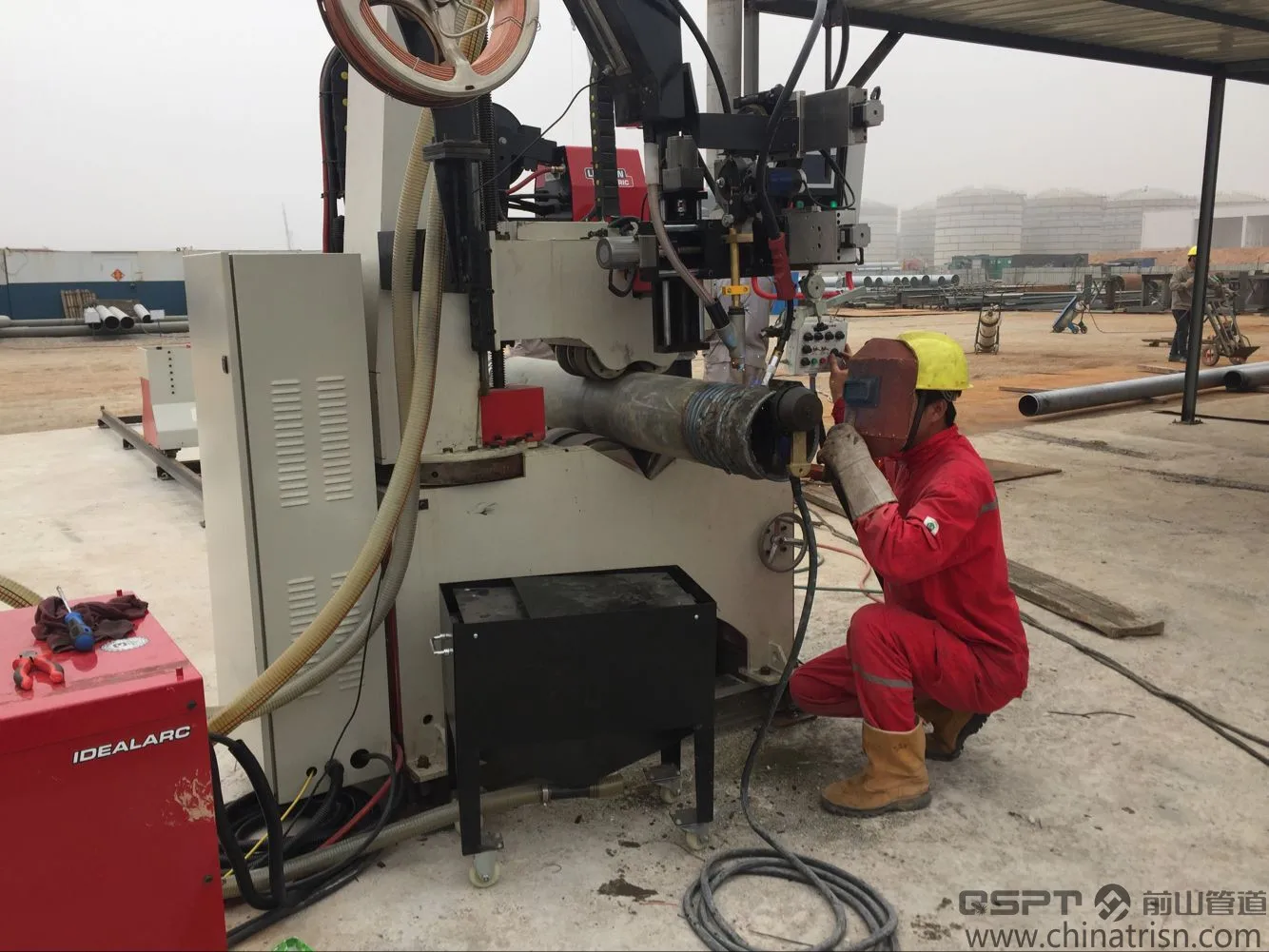

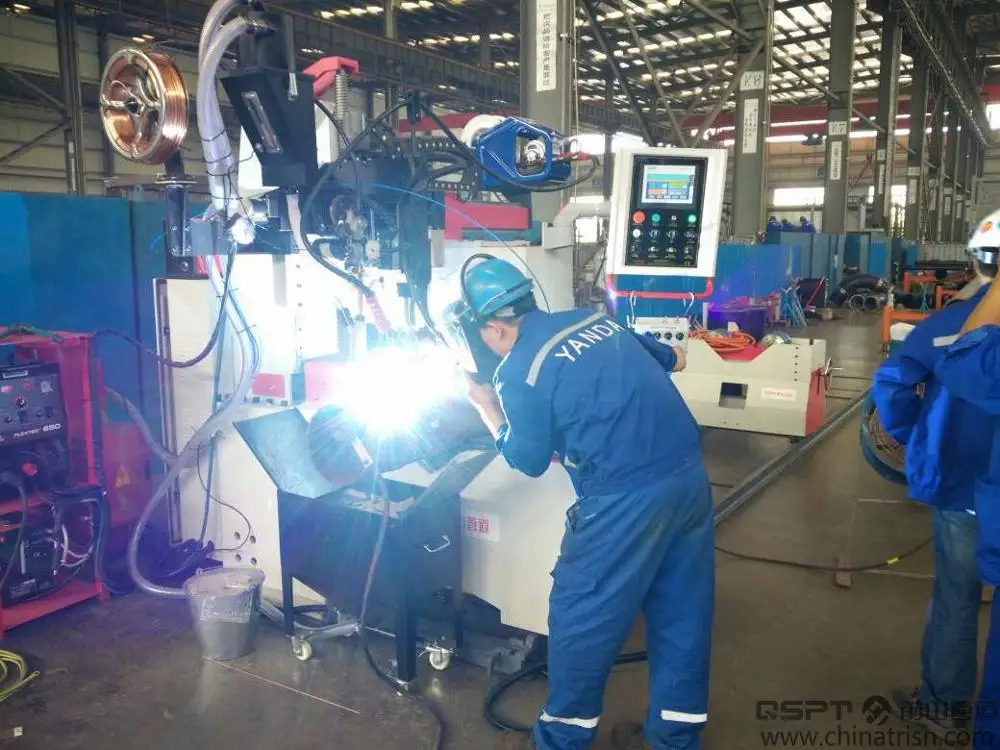

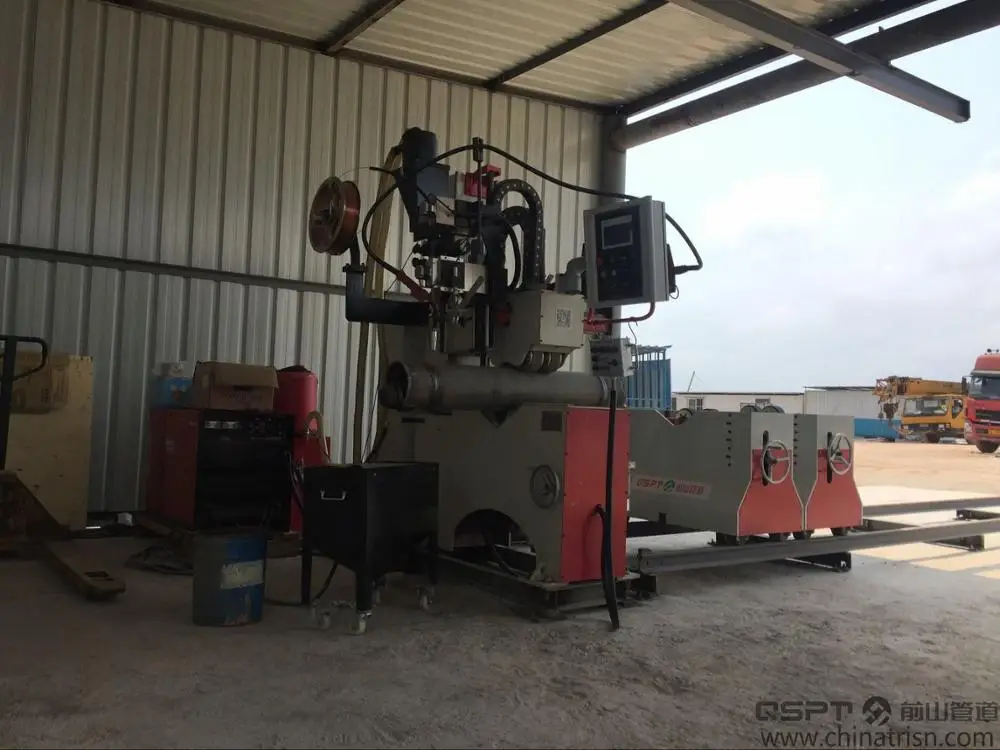

AUTOMATIC PIPE WELDING MACHINE

Product Overview

Description

        Piping Prefabrication Automatic Welding Machine (FCAW/GMAW)

        Model: PPAWM-16A4

        Technical parameters

         Pipe diameter applicable: DN50-400(φ60-426)

         Pipe wall thickness applicable: 3-20MM

         Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

         Welding line applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).

         Driving System: driven by two-row rubber roller and reducer

         Clamping system:clamping arm move updown electrically and clamps by screw manually

         Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.

         Counterweight System: No Counterweight

         Speed regulation Mode: VF stepless speed control system

         Adjustment Mode: electric cross regulator

         Oscillating system: a product of our patented technology, step motor driving and digital displaying oscillating width adjusting .

         Control system: a product of our patented technology, PLC control

         Welding Mode: CO2 gas shielded arc welding

         Welding Power: our OEM products which are famous in China (or as per customers demands)
