Heat Exchanger

Product Overview

Description

Technical parameter

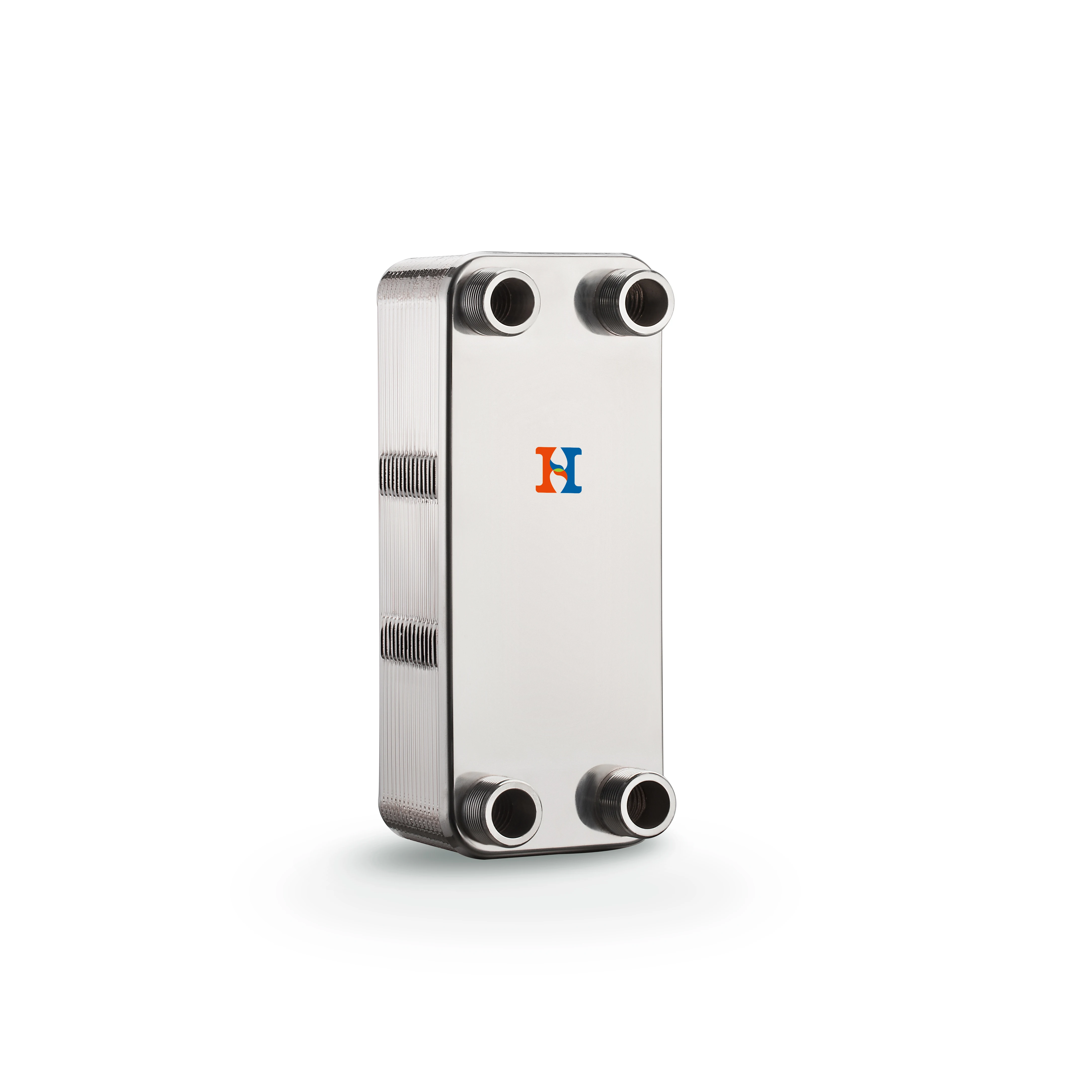

Product name	Heat Exchanger
Product model	B3-32A
Unit heat exchanging area	0.032m2
Maximum flowrate	12m3/h
Plate material	316L or 304 stainless steel
Welding material	99.9% coppers
Thickness of plate	0.4mm
Volume per channel	0.05L
Maximum number of plate	120
Design pressure	3.0MPa 4.5MPa
Test pressure	4.5MPa 6.0MPa
Design temperature	-195 ~+220
Connections	the biggest screw thread pipe for water: 1", the biggest welded pipe for liquid: 11/8"
Refrigeration Capacity	5-20KW

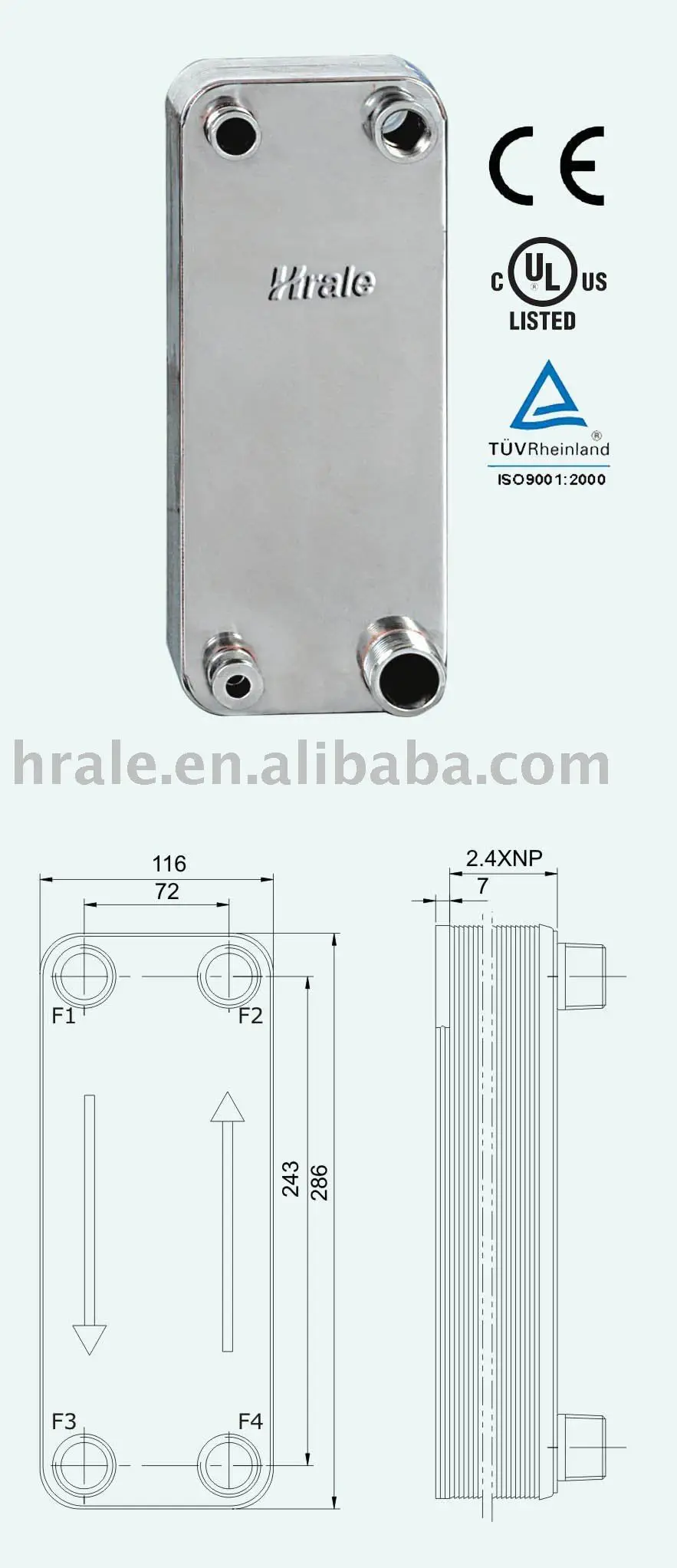

Basic Procedures	F1-> F3 F4-> F2
Application scope	Heaing Industry, Heat Pump, Cetral Air-conditioning, Refrigeration Equipment, Industrial water cooler, oil cooler, etc.
