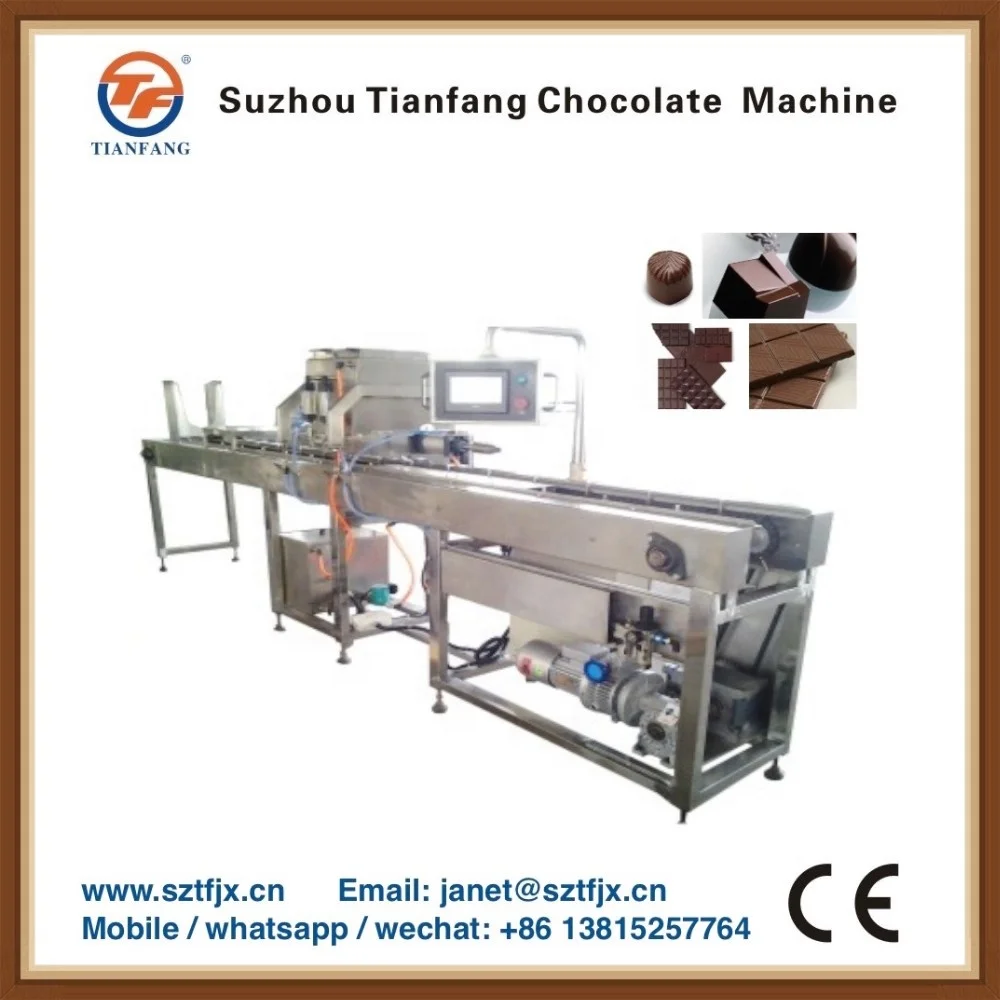

TQJJ150 chocolate depositor machine

Product Overview

Description

USE:

1. This chocolate depositor machine have functions of holding chocolate mould, pre-heating empty mould, depositing chocolate into mould, vibrating chocolate in mould.

2. In this chocolate depositor machine, you can produce following types of chocolate:

- pure chocolate

- center filling chocolate

- two color chocolate

- nuts mixed chocolate (nuts feeder unit required)

- wafer chocolate (wafer inserter unit required)

3. Real chocolate and compound chocolate are both workable to make in this machine.

Main parameter:

Model:TQJJ150

Quantity of depositor: 1

Production capacity:200kg/hour

Power of machine:7.47kw

Size of mould:275x175x25mm

Quantity of mould:200 pieces
Weight of machine:500kg

Size of machine: 4300x520x1500mm (LxWxH)





















Besides, We have automatic chocolate moulding machine with 1 depositor (model: TQJJ175-1), 2 depositors (model: TQJJ175-2) and 3 depositors (model: TQJJ175-3).



Model		TQJJ175-1	TQJJ175-2	TQJJ175-3	TQJJ150
Number of Depositor		One	Two	Three	One
Capacity(kg per hour)		100 - 300kg/hour	100 - 300kg/hour	100 - 300kg/hour	200kg/hour
Capacity of Compressor		10HP	15HP	15HP	-
Brand of Compressor		Emerson	Emerson	Emerson
Temperature in Cooling Tunnel		5 - 10°C	5 - 10°C	5 - 10°C
Power(kw)		17.4	23	31.5	7.47
Size of Mould (L×W×H, mm)		280×200×30	280×200×30	280×200×30	275×175×25
Quantity of Moulds(pieces)		310	400	410	200
Net Weight of Machine(kg)		3500	4300	5200	500
Size of Machine (L×W×H, mm)		16000×1000×1800	17000×1000×2300	19000×1000×2350	4300×520×1500
Type of Chocolate	Pure Chocolate	√	√	√	√
	Center Filling Chocolate	√	√	√	√
	One Color Chocolate	√	√	√	√
	Two Color Chocolate (left &right)	√	√	√	√
	Two Color Chocolate  (up &down)	-	√	√	-
	Three Color Chocolate	-	-	√	-
	1kg Industrial Chocolate	-	√	√	-
	Nuts Mixing Chocolate	√	√	√	√
	Wafer Chocolate	√	√	√	√
