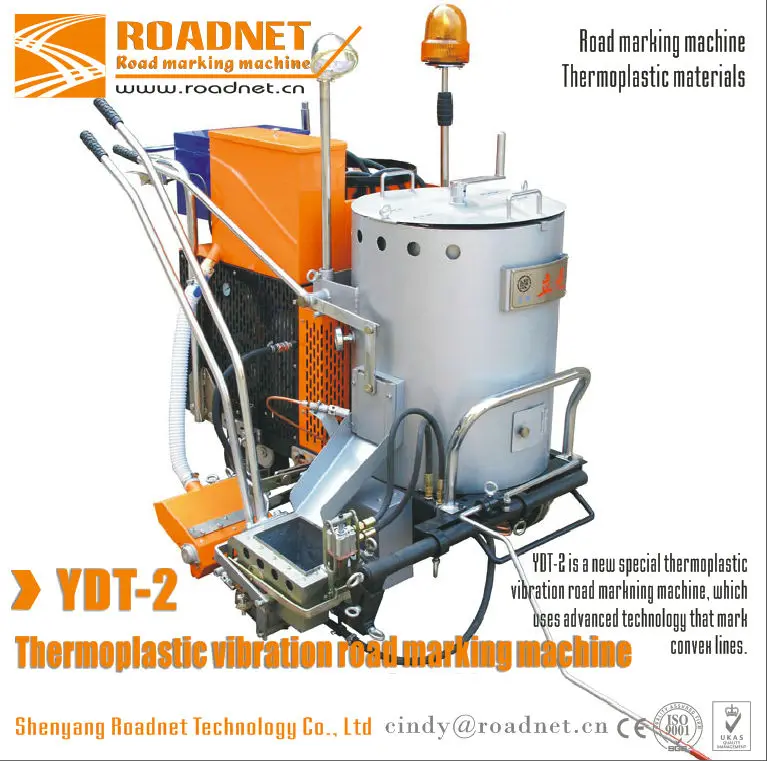

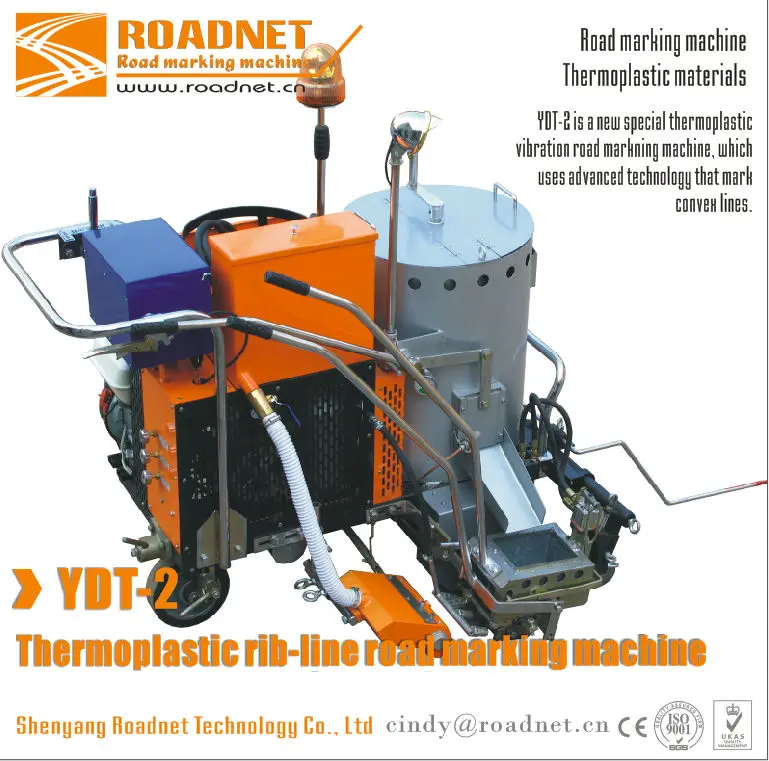

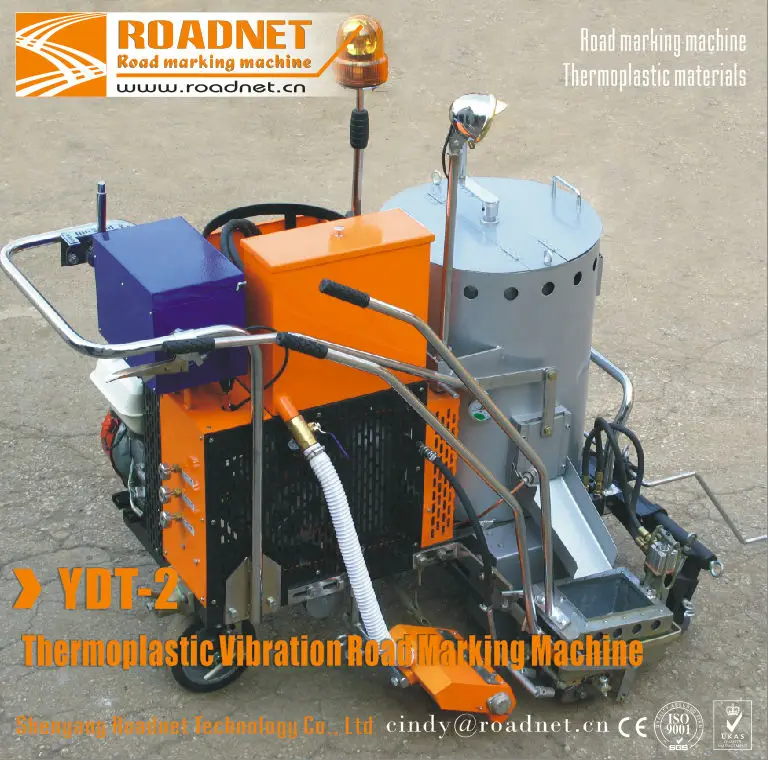

Self propelled thermoplastic convex line Road marking machine

YDT-2 Self-propelled thermoplastic convex line Road marking machine ,  uses advanced technology to make speed pumps

1. Auto-moving the direction of forward or turn over, speed regulating.

2. Hydraulic pressure drive which is powerful, and highly efficiency.

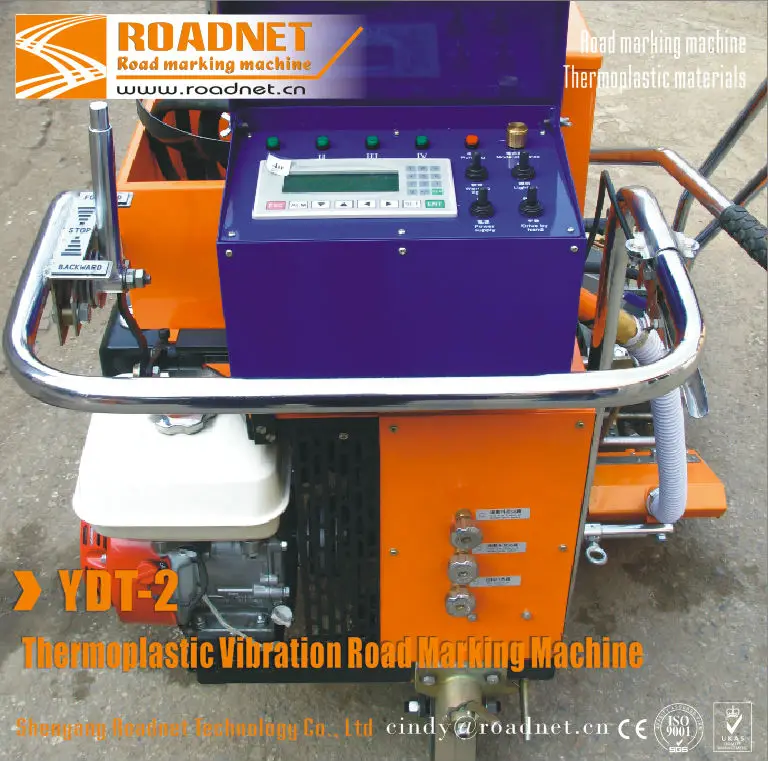

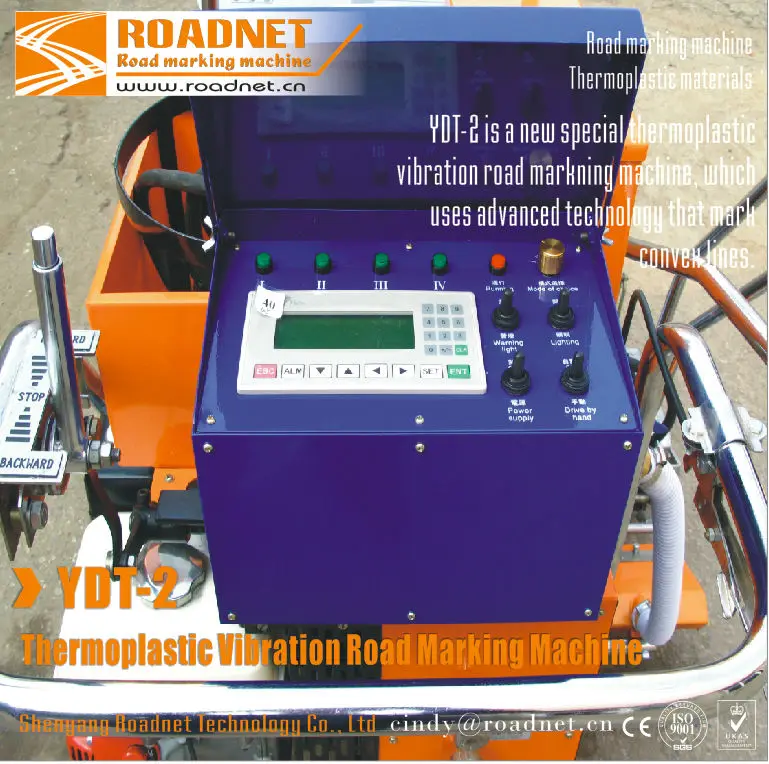

3. Micro-computer control sysytem, touch screen.

4. protruding spacing can be adjusted freely, it is a machine with several uses and easy to upgrade.

5. safty warning light and lighting for night use.

6. special materials of making bucket, heat-resistance, anti-cauterization, hard metl alloy grounded knife, active design.

Technical parameters:
Engine: HONDA 5.5HP gasoline engine
Volume: 1350 × 800 × 1050mm
Weight: 245 kg
Application Width: standard type 150/200/300 mm
                                      Option: 100/400/450 mm
Insulation tank capacity: 90 kg
Glass beads capacity: 10 kg
Baseline thickness: 1 ~ 2.5 mm
protruding height:3-7mm
moving speed: 0 ~ 10 Km / h
execution speed:> 400 m / h
The largest climbing: 15 °
The direction of control:  loced rear wheel, easily and precisely adjust adlighment to your exact requirement.
Heating fuel: liquefied petroleum gas(carry the per-gas tank of 10-15kgs)
