Roll to Roll T shirt Printing Heat Press Machine

Product Overview

Description

 Roll to Roll Heat Transfer Printing Machine LTA-3040

Model No.	LTA-3040
Screen Frame Area	600x700mm
Max. Print Area	300x400mm
Max. Paper Width	320mm
Printing Speed	0-6000 print/min.
Power	Main Drive Motor	0.75kw
	Pulling Drive Motor	1.5kw
	Air Suction Motor	0.3kw
UV Dryer for Option	4.8kw/pc
Machine Weight	Net Weight	1000kgs
	Gross Weight	1200kgs
Supply Voltage	220V 15A(single-phase power)
	Remark:can be changed with your need
Machine Size	L2560 x W980 x H1660 mm
Measurement	L2660 x W1080 x H1860 mm





Description:

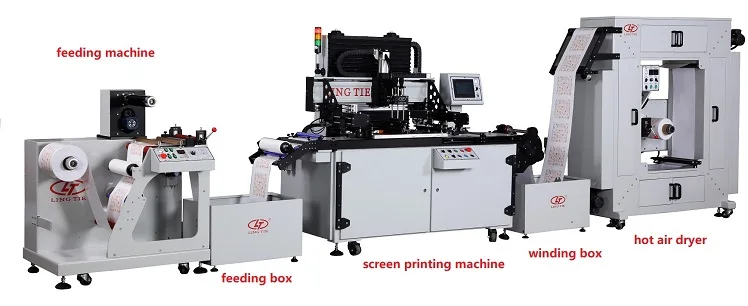

LTA-3040 roll to roll heat transfer printing machine is mainly composed of a feeder, a printer and a hot air dryer. Its max.printing  size is 300x400mm, max.web width 320mm, max.printing width 300mm, max.printing length 400mm. The hot air dryer inside loop 30m length. UV dryer can be added to the line. LTA-3040 has an automatic register system with 3 sensors to ensure high printing precision in multi color printing. The printing line dimension is 6.7x2x1.8m (LxWxH).



Main features:

1.  3-inch diameter air shaft for loading substrate roll.

2.  Feeding speed can be adjusted by stepless speed control motor.

3.  Unwinder with tension control.

4.  Splice station for film connection.

5.  Machine with static elimination.

6.  Double-side dust removal for the substrate.

7.  Automatically stop and alarm when the substrate roll is run out.

8.  Japan brand servo motors to ensure precision and stability.

9.  Japan brand PLC and frequency converter for machine control.

10. English touch screen control panel.

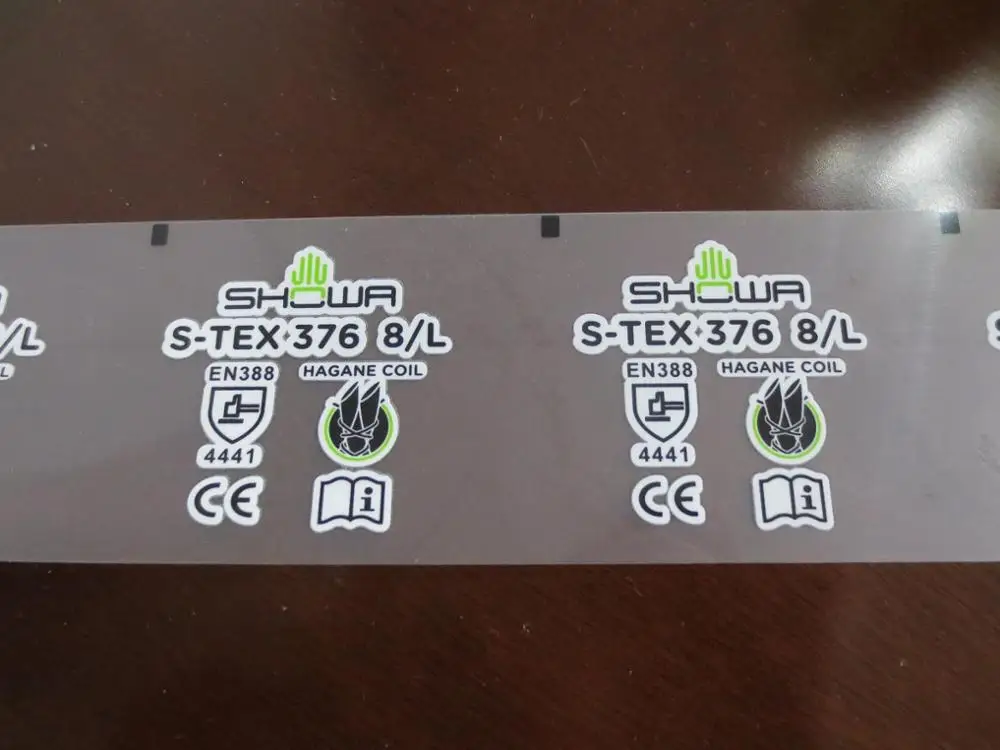

11. The machine with punch device, it can punch square holes on the substrate to replace printed sensor marks.

12. Vacuum table, white light lamps under the table for printing quality inspection.

13. Three photocell sensors, one for sensor mark, two on the right & left of screen clamps for web guide.

14. Inner loop length 30-meter.

15. 2-side heating and each side temerature can be controlled separately.

16. Substrate conveying speed can be adjusted.

17. Automatic rewinding the substrate after drying process.

18. Wheels in machine bottom for easy moving.

19. Machine body surface is painted by electrostatic spraying, resistant to rusting.
