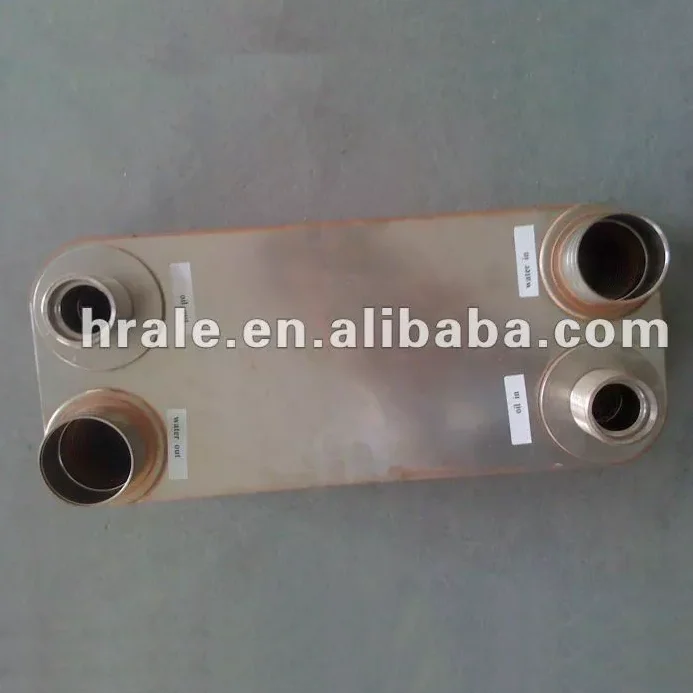

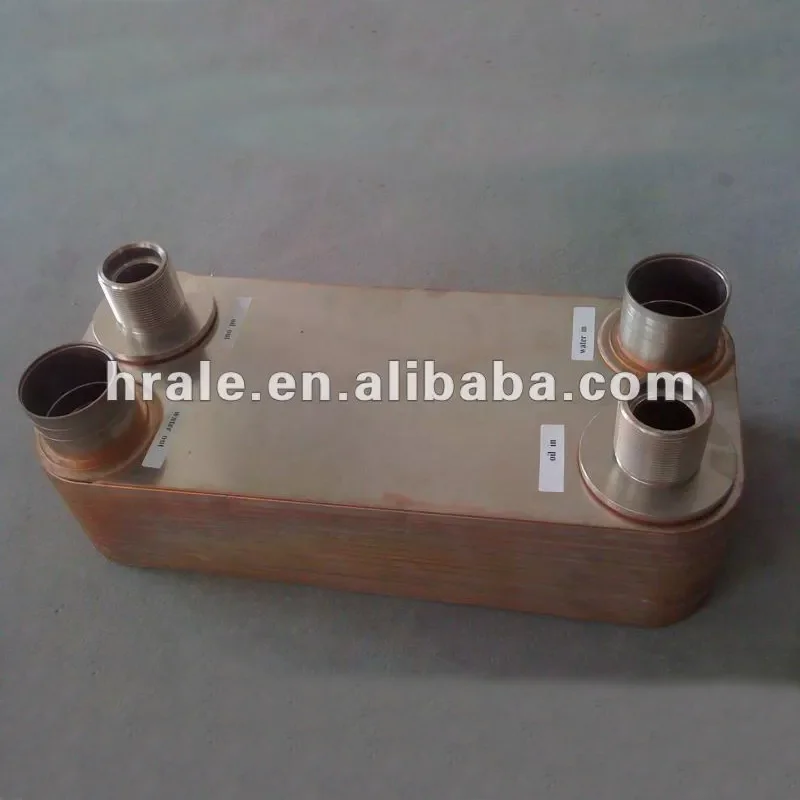

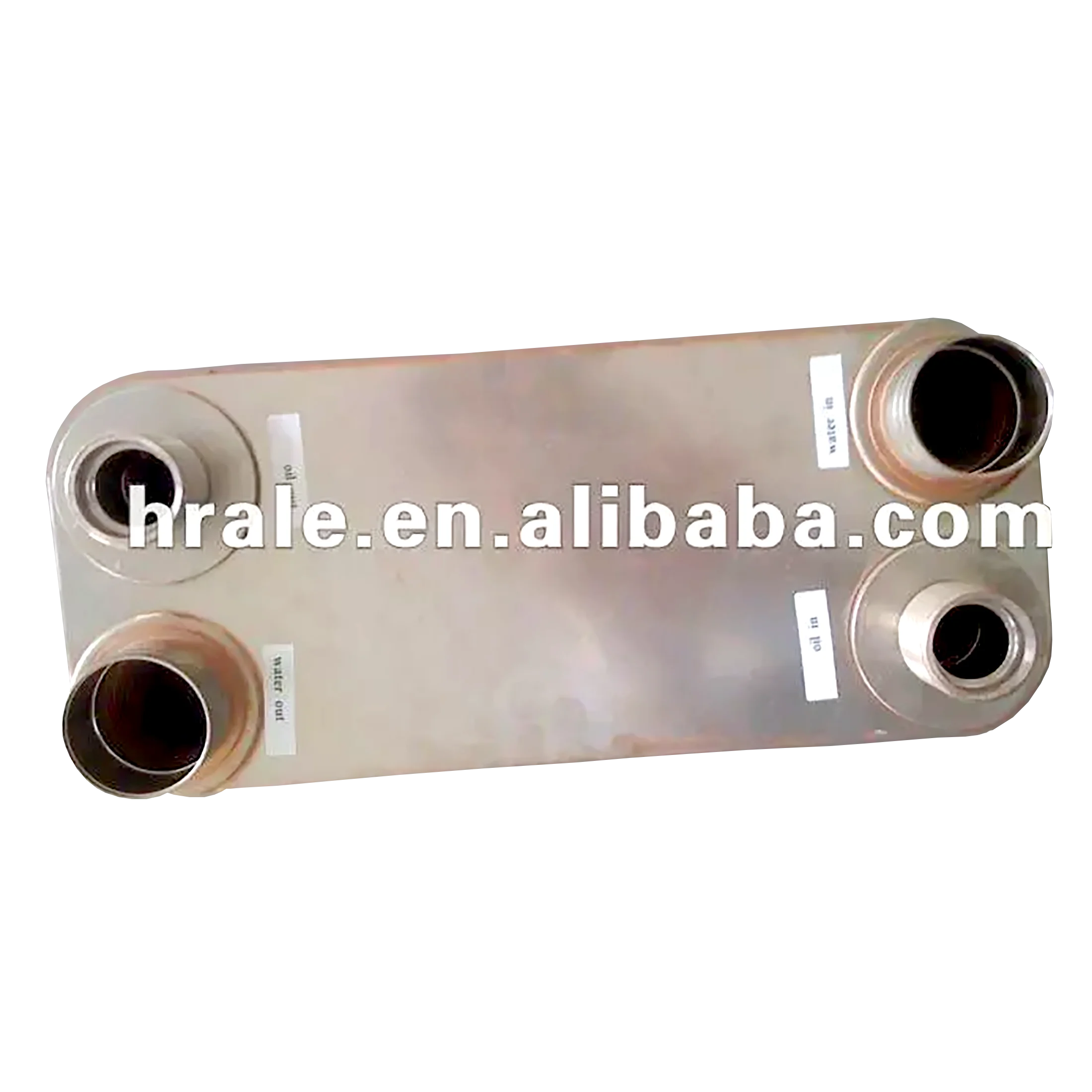

Brazed Oil Cooler
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (242118033):
Product Overview
Description
VR
Products Description
Product name | Compact brazed Oil Cooler, brazed cooler,CE, UL, TUV,ISO9001:2000 |
Product model | B3-65B |
Unit heat exchanging area | 0.065m2 |
Maximum flowrate | 40m3/h |
plate material | 316L or 304 stainless steel |
Welding material | 99.9% copper |
Thickness of plate | 0.5mm |
Volume per channel | 0.035L |
maximum number of plate | 100 |
Design pressure | 3.0MPa |
Test pressure | 4.5MPa |
Design temperature | -195 ~+220 |
Connections | Biggest screw threads pipe for water: 5/4", the biggest welded pipe for liquid: 15/8" |
Refrigeration Capacity | 700KW |

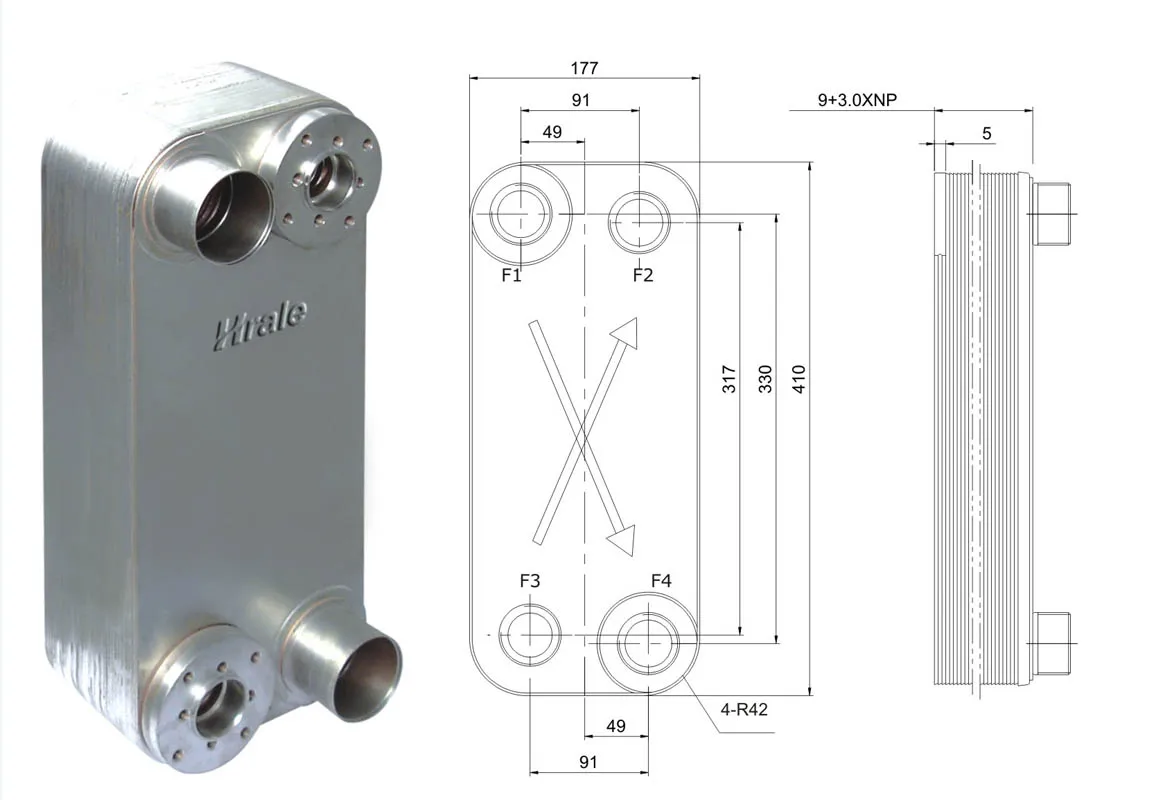

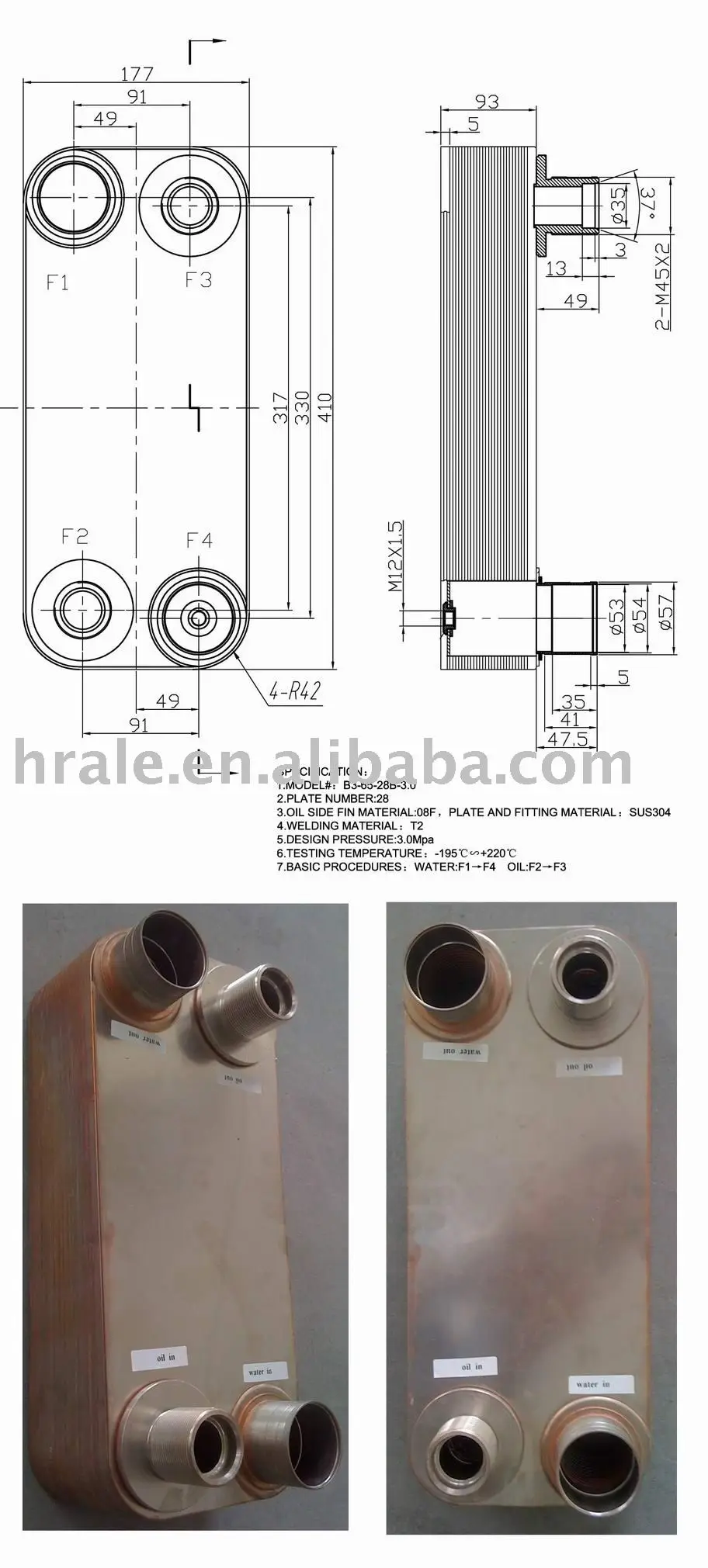

Basic Procedures | F1-> F4, F3-> F2 |
Application scope | The oil fluid which needs to be cooled slows down when passing the wing structure channel and the cooling water fluid speeds up when passing the smooth plate channel, thus achieves the ideal cooling effect. |
