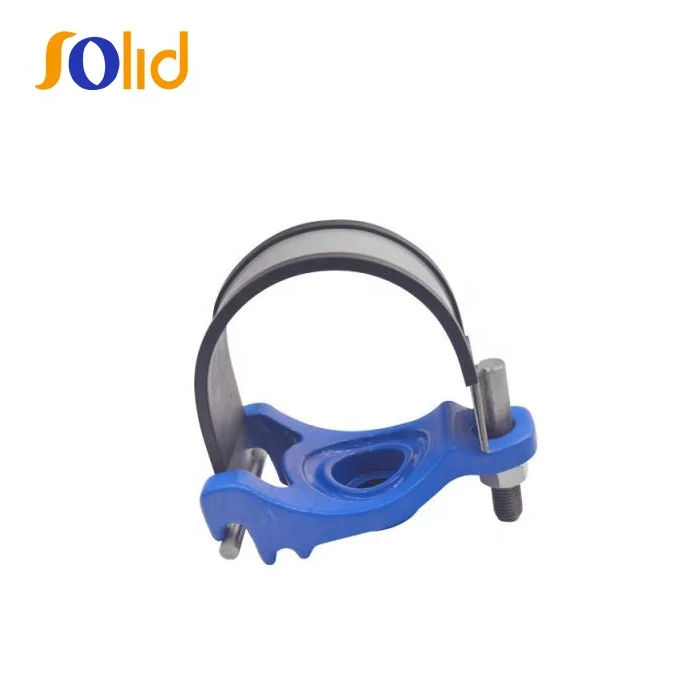

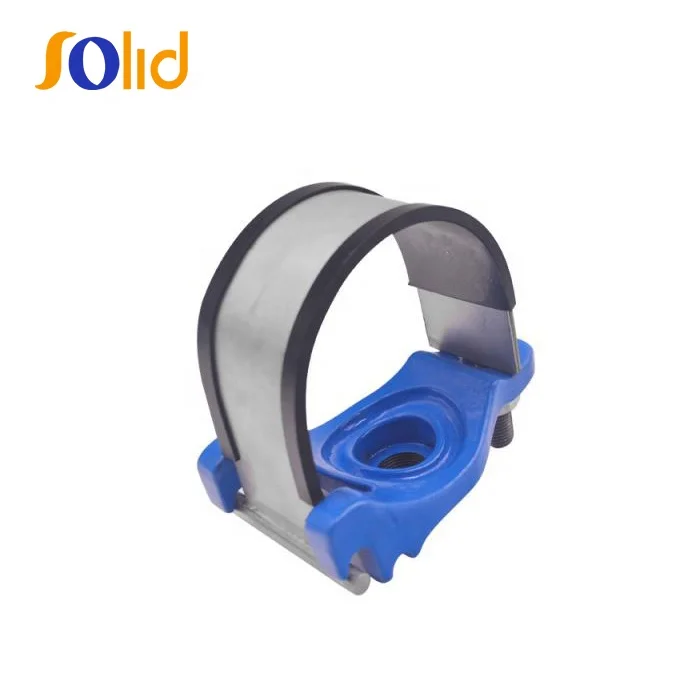

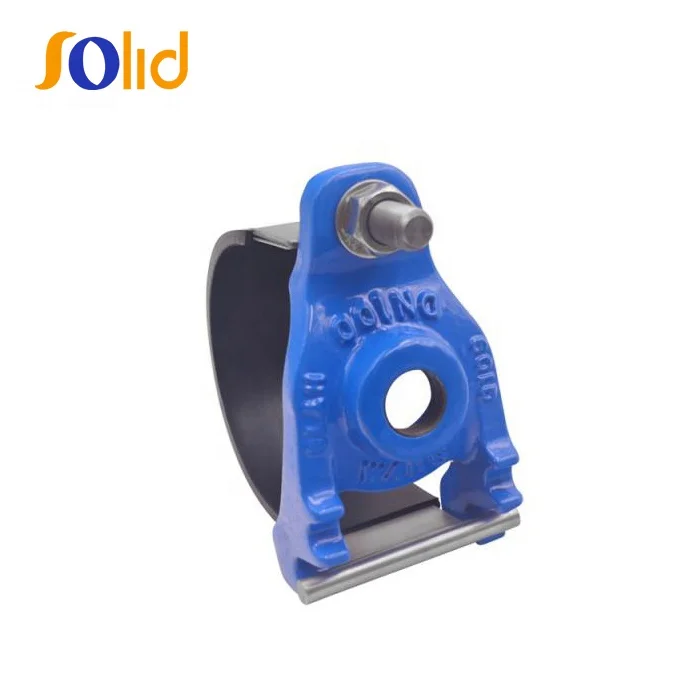

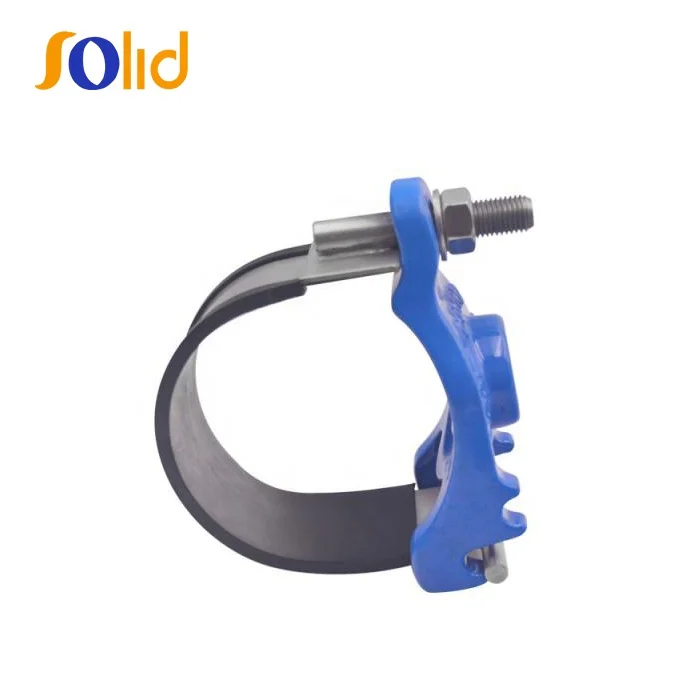

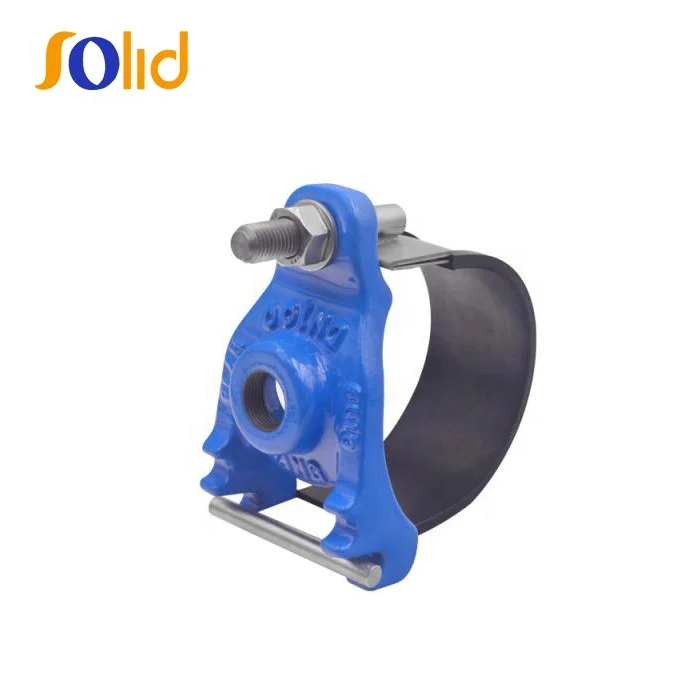

Ductile Iron Tapping Saddle with Ss Band Strapped for Di/Steel Pipe
- Category: >>>
- Supplier: Shanxi Solid Industrial Co. Ltd.
Share on (243043933):
Product Overview
Description
Ductile Iron Tapping Saddle with Ss Band Strapped for Di/Steel Pipe
Product Description
Saddle with stainless steel band
Features
Ductile Iron head with FBE coated
PN16 working pressure.
SS304 Band
SS304 Bolt with 65mm length thread
Galvanized steel nuts.
Size:DN50-DN450
ANTI-CORROSION
1.Epoxy or cataphoresis coating
2.Thickness: Epoxy powder coating of 200-250μm
3.Temperature:Spraying temperature over 200℃
Doesn't fade,even with diethyl ether
RELIABLE
EPDM gasket to EN681-1,mechanically inserted on Series 1425
Material of Construction
Saddle body - Ductile Iron to BS2789 Grade 420/12 , 500/7
Coating - Fusion Bonded Epoxy to SABS 1217 , minimum thickness 250 microns, colors in
RAL5005, RAL5015 , RAL3009 , RAL9005, RAL9011 or others .
Bolts - Steel to BS970 Grade 070M20 , Carbon steel Grade 8.8, SS304 or SS316
bolts available upon requests.
Bolt coating Galvanized
Rubber Seal - E.P.D.M. Grade E to BS2494 1990 Type W&D
Detailed Images
Related products
Our Services
Sample Room
Company Information
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB,CIF all acceptable.
