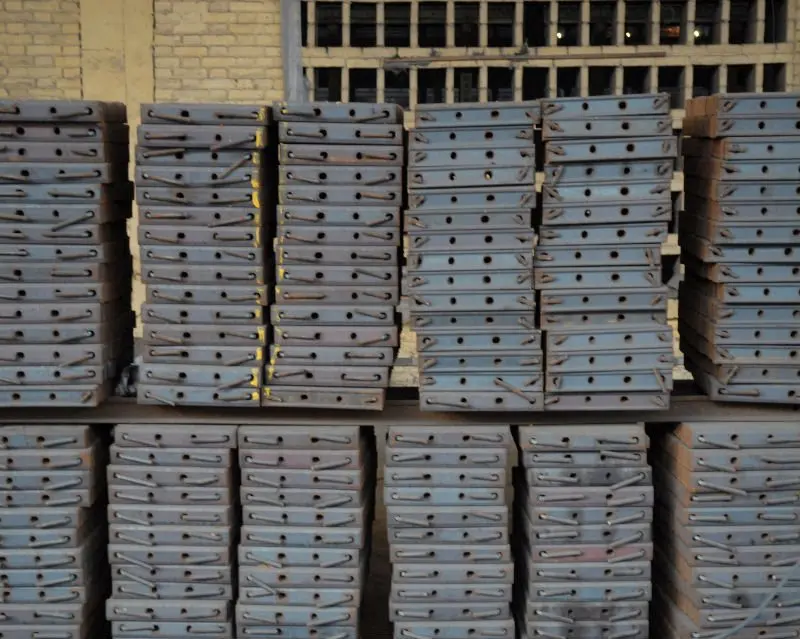

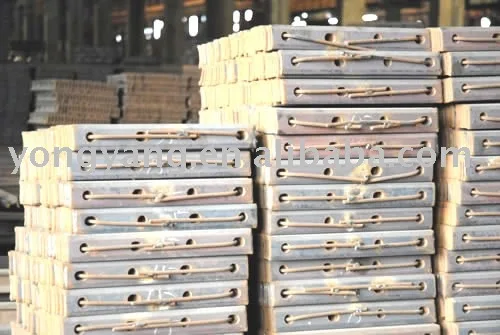

Rail fastener tie plate Fish Plate

Product Overview

Description











THE LIST OF YYGT
Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight	Length of Dimension     (m)	Packed in bundle with iron wire (pcs/bundle)
Light Rail	4kg/m	Q235	Q/YYG001-2008	4kg/m	6,8,9,10	75
	8kg/m	Q235	Q/YYG001-2008	8.42kg/m		55
	12kg/m	Q235	GB11264-89	12.2kg/m		36
	15kg/m	Q235/55Q/50Q	GB11264-89	15.2kg/m		28
	18kg/m	Q235/55Q/50Q	YB222-63	18.02kg/m		21
	22kg/m	Q235/55Q/50Q	GB11264-89	22.3kg/m		21
	24kg/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kg/m		21
	30kg/m	Q235/55Q/50Q	GB11264-89	30.1kg/m		15
Heavy Rail	38kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	38.733	12,12.5	10
	43kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	44.653		10
	50kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	51.514		10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kg/m	12,12.5	10
	QU80		YB/T5055-93	63.69kg/m		10
	QU100		YB/T5055-93	88.96kg/m		5
	QU120		YB/T5055-93	118.1kg/m		5
I-beam of Mine Usage Steel	9#	20MnK/ Q235	YB/T5047-2000	17.69kg/m	8,9,10	28
	11#		YB/T5047-2000	26.05kg/m		18
	12#		YB/T5047-2000	31.18kg/m		15
U-beam Of The Mine Channel Steel	25U	20MnK/ Q235	GB4697-1991 Q/YYG006-2008	24.95kg/m	8,9,10,12	15
	29U		GB4697-1991	29kg/m		15
	36U		Q/YYG006-2008	35.87kg/m		15
Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight (kgs/set)	Length of Dimension  (cm)	Packed in bundle with iron wire    (set)

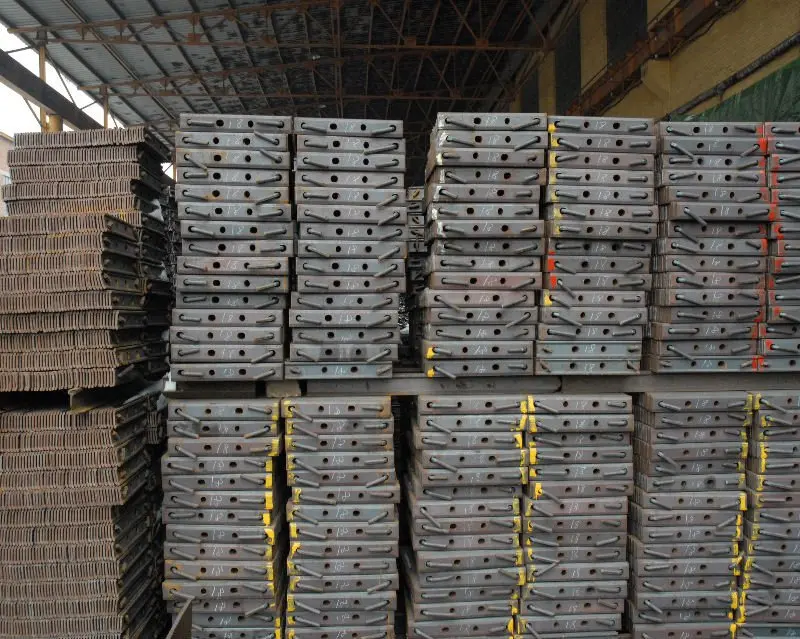

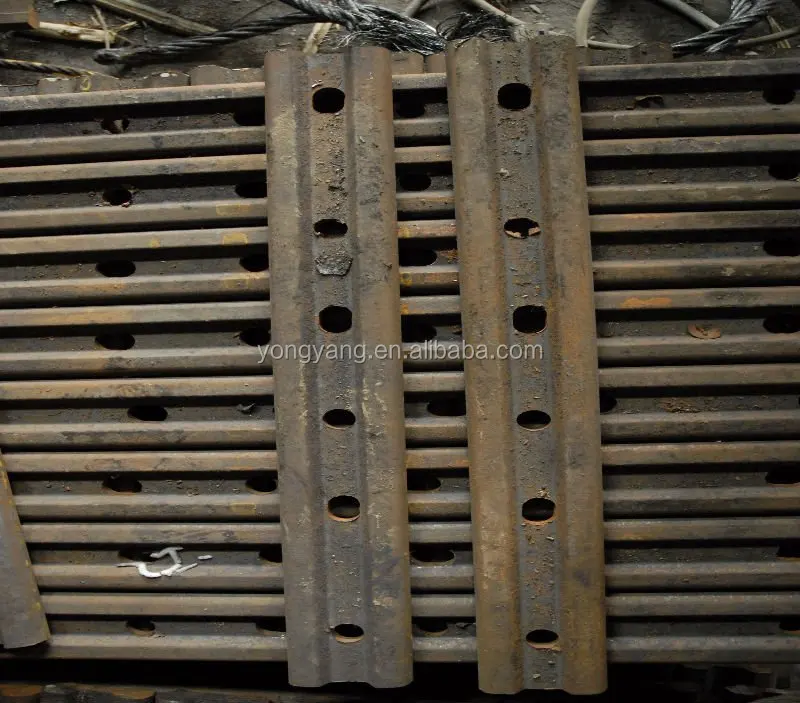

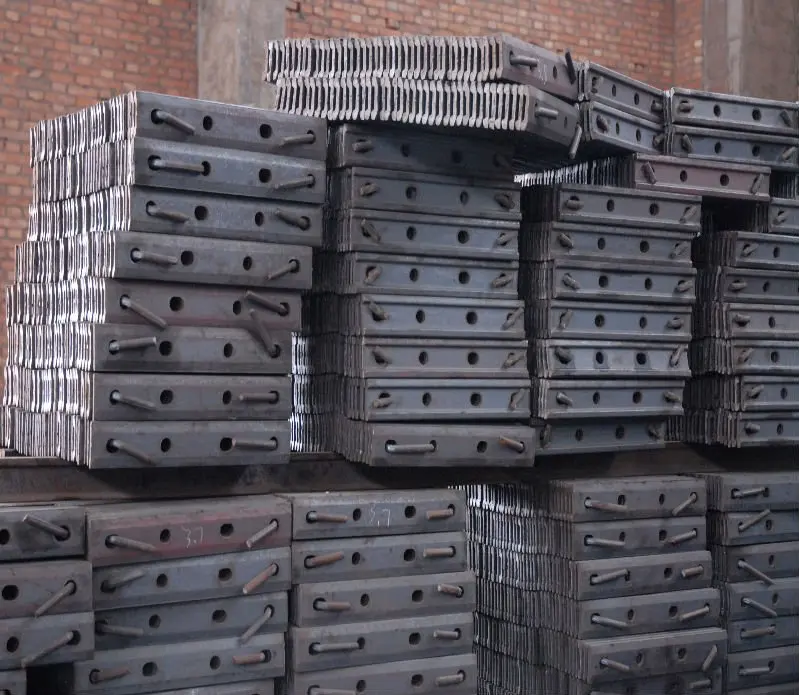

Fish Plate	8kg	Q235B	GB11265-89	0.8 +0.8 =1.6		50
				1+1=2
	12kg		GB11265-89	1.1+1.1=2.2	45.5	50
				2.6-3.0
	15-18kg		GB11265-89	3.6-4.0	53.54	25
				4.6-5.0
				5.6-6.0
	22-24kg		GB11265-89	6.6-7.0	61.73	20
				7.6-8.0
				8.4-9.0
	30kg		GB11265-89	14.4-15.0	71.48	10
				16.4-17.0
	43kg		GB185-63	57.0-58.0	79	1



    We are ready to do our best to provide with superior service for our customers and faithfully wish to cooperate with all friends from all over the world.
