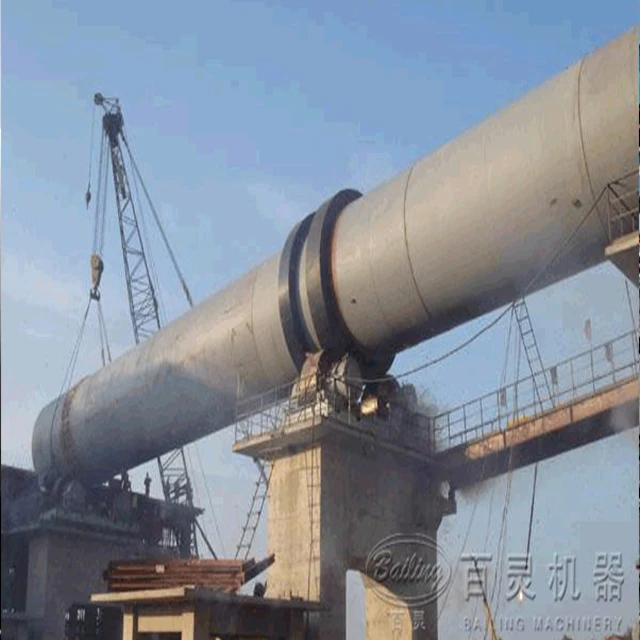

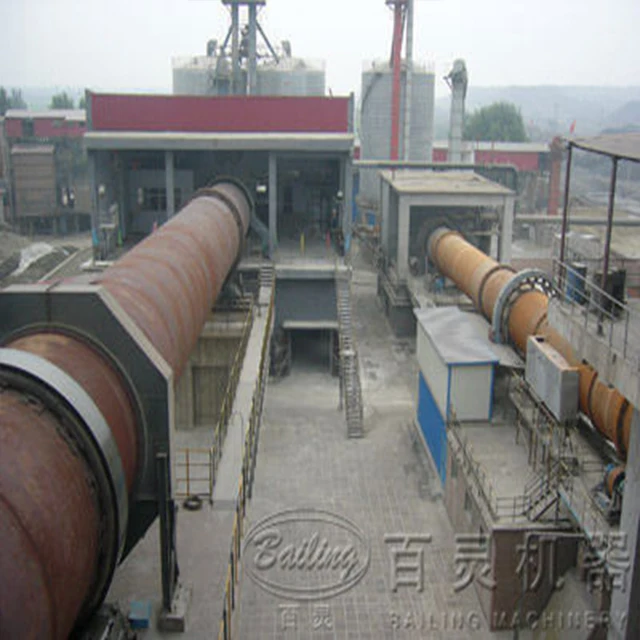

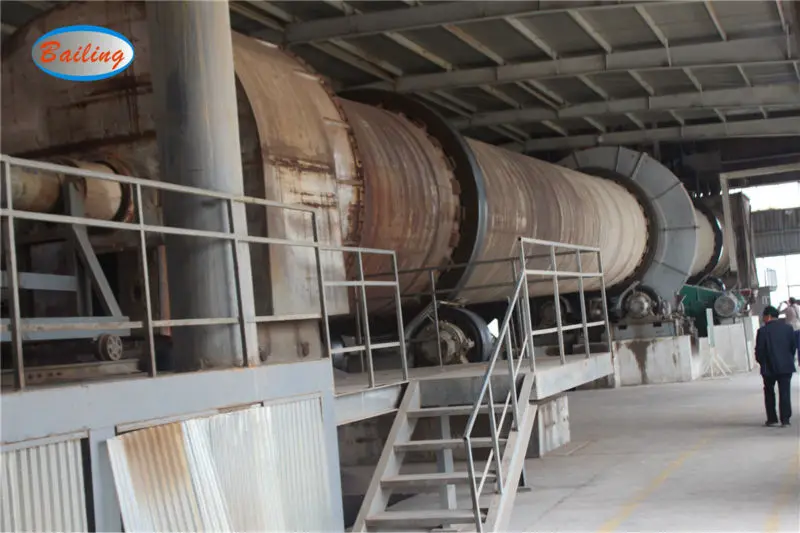

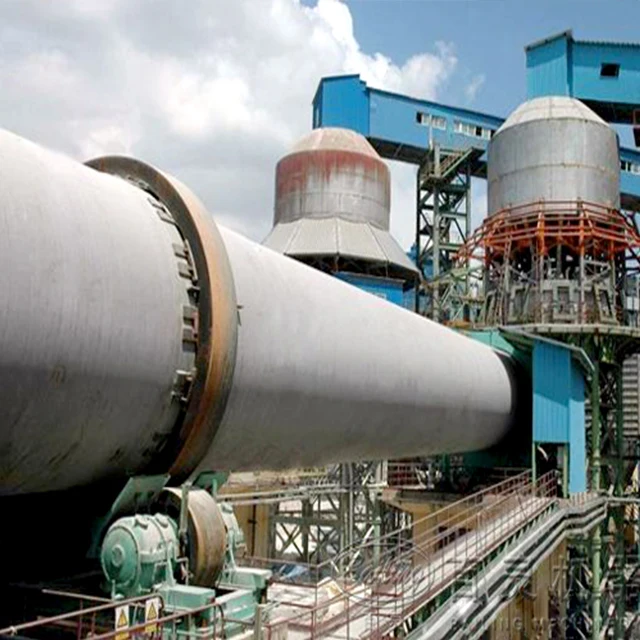

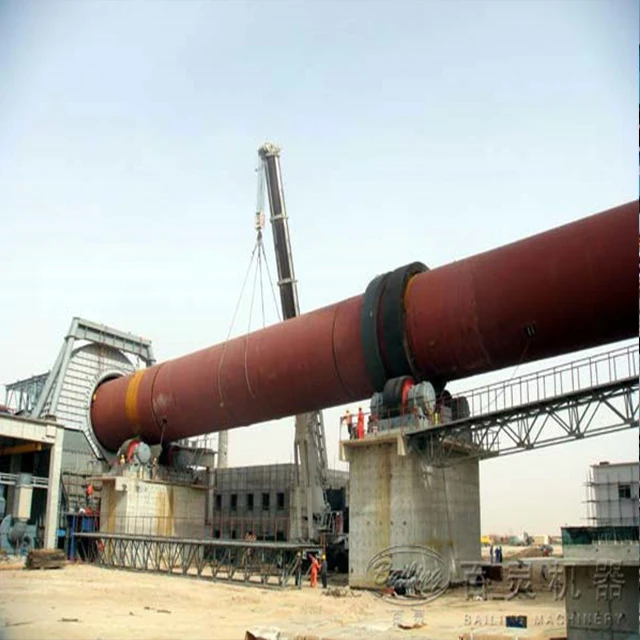

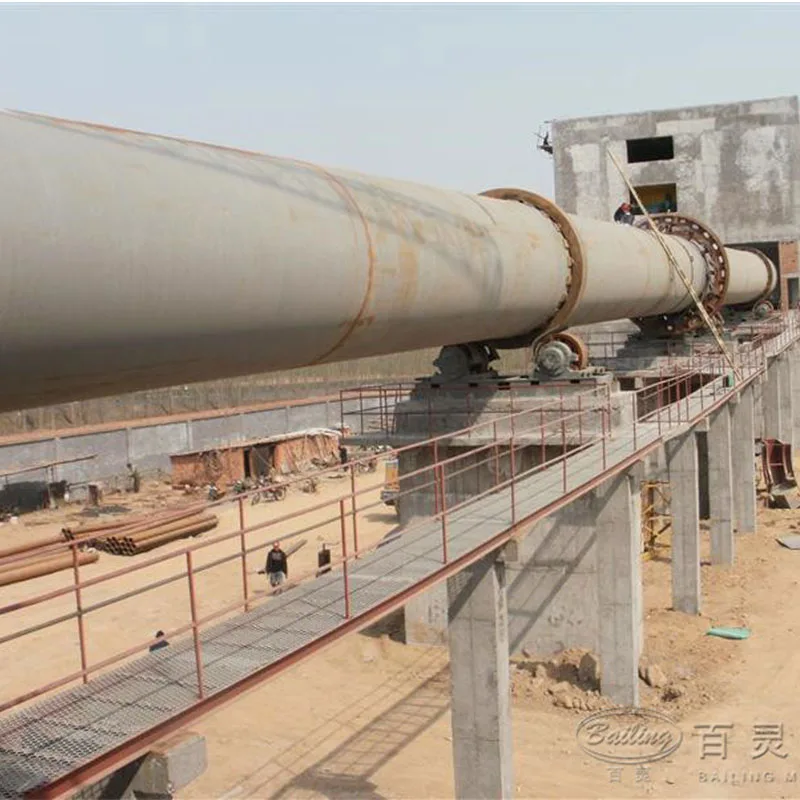

The ceramic sand rotary kiln is a process of calcining various raw materials such as rock, kaolin and industrial waste slag into ceramic texture granules at a temperature of 950 ° C - 1050 ° C to replace aggregates such as crushed stone in general concrete brick making. The ceramic sand density is lower than that of stone, and it has strong resistance to osmosis and acid and alkali resistance. It has become one of the most widely used building materials. ⌈ Production capacity ⌋:0.8-43.5 t/h ⌈ Kiln diameter ⌋:1.4-3.2 m ⌈ Power ⌋:18.5-125 kw ⌈ Application range ⌋:It is widely used in the calcination and production of various materials such as ceramic sand, clay, yellow mud, river bottom sludge, fly ash, shale, slag, kaolin bauxite.
Outstanding advantages
Stable operation, energy saving and consumption reduction
The rotary cooler is arranged to quickly reduce the temperature of the material, improve the activity of the product, and is convenient for transportation and storage. At the same time, the secondary air entering the kiln at a higher temperature can be obtained, thereby effectively increasing the firing temperature in the kiln and reducing the fuel consumption.
Advanced sealing technology, high output
The kiln head is sealed with a shell cover, and the kiln tail is equipped with an axial contact sealing device, which ensures the reliability of the sealing. The finished ceramic is not only high in output but also better in quality.
Simple structure, green environmental protection
The ceramic sand rotary kiln has a simple kiln structure and smooth air flow. When calcining the material, the sulfur-containing flue gas can be discharged in time, and the sulfur in the fuel is not easy to adhere, so that the waste is reduced and harmless.
| Model | Diameter(m) | Length(m) | Obliquity(%) | Capacity(t/h) | Speed(r/min) | Motor power(kw) | Weight(t) | | Φ1.4×33 | 1.4 | 33 | 3 | 0.8-1.4 | 0.39-3.96 | 18.5 | 47.5 | | Φ1.6×36 | 1.6 | 36 | 4 | 1.3-2 | 0.26-2.63 | 22 | 52 | | Φ1.8×45 | 1.8 | 45 | 4 | 1.8-2.6 | 0.16-1.62 | 30 | 78.2 | | Φ1.9×39 | 1.9 | 39 | 4 | 1.6-3.1 | 0.29-2.93 | 30 | 77.59 | | Φ2.0×40 | 2 | 40 | 3 | 2.35-4.2 | 0.23-2.26 | 37 | 119.1 | | Φ2.2×45 | 2.2 | 45 | 3.5 | 3.5-5.5 | 0.21-2.44 | 45 | 128.3 | | Φ2.5×40 | 2.5 | 40 | 3.5 | 8.7-11.2 | 0.44-2.44 | 55 | 149.61 | | Φ2.5×50 | 2.5 | 50 | 3 | 5.3-7.1 | 0.62-1.86 | 55 | 187.37 | | Φ2.5×54 | 2.5 | 54 | 3.5 | 6.7-8.9 | 0.48-1.45 | 55 | 196.29 | | Φ2.7×42 | 2.7 | 42 | 3.5 | 10.2-11.9 | 0.10-1.52 | 55 | 198.5 | | Φ2.8×44 | 2.8 | 44 | 3.5 | 12.6-13.7 | 0.437-2.18 | 55 | 201.58 | | Φ3.0×45 | 3 | 45 | 3.5 | 12.9-14.8 | 0.5-2.47 | 75 | 210.94 | | Φ3.0×48 | 3 | 48 | 3.5 | 26.1-29.7 | 0.6-3.48 | 100 | 237 | | Φ3.0×60 | 3 | 60 | 3.5 | 12.8-15 | 0.3-2 | 100 | 310 | | Φ3.2×50 | 3.2 | 50 | 4 | 41.2-43.5 | 0.6-3 | 125 | 278 |
We promise | | 1. Pre-sales service, actively provide technical data support for customers, free to provide program design and investment quotation estimates. | | 2. Provide customers with tailor-made global transportation arrangements to ensure safe and fast delivery of goods. | | 3. Regularly return visits to all users to track product usage, ensure that equipment is in optimal working order, and help customers achieve maximum benefits. |
Singapore ceramsite sand production case
Advantages: high production capacity, simple and convenient operation, strong operational stability, and environmental protection effects can also meet standards, low energy consumption, cost savings for users, etc.
Production capacity: 180-500t/h Processing material: ceramsite sand Equipment configuration: jaw crusher, ceramic ball mill, classifier, rotary kiln, raw material mill, single cylinder cooler, linear vibrating screen and pulse dust collector
|
