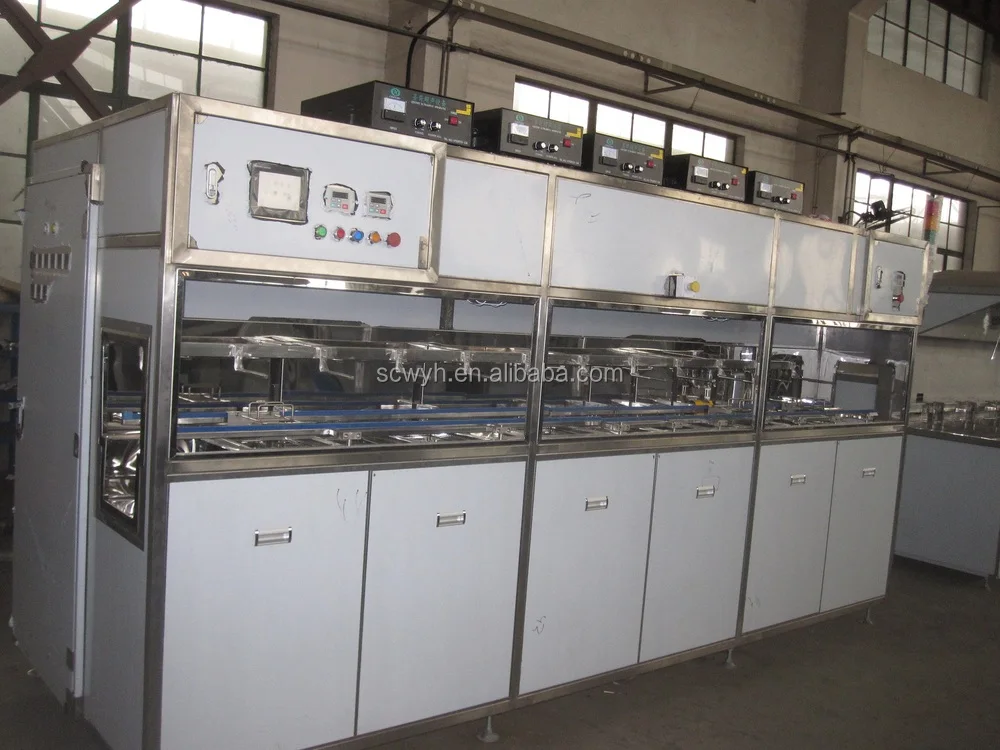

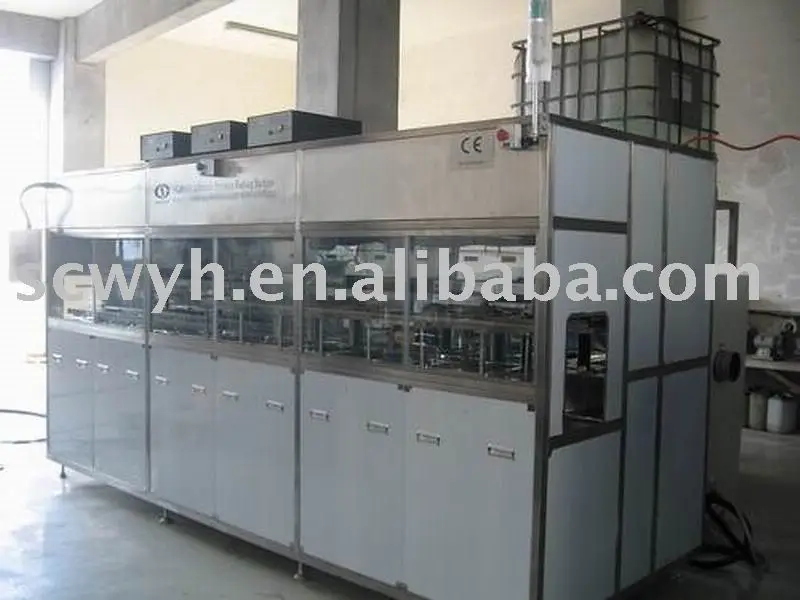

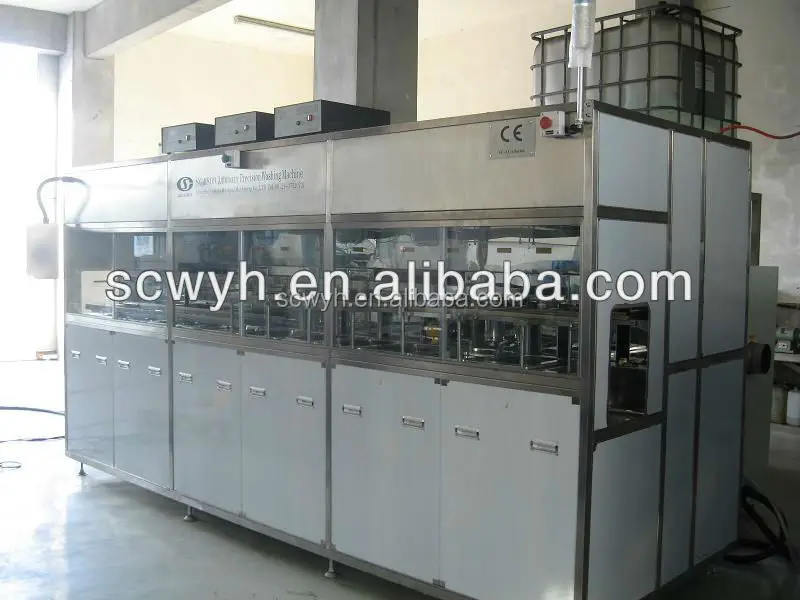

Automatic Optical Lens Cleaning and Anti Fog Coating Machine

Product Overview

Description

Automatic Ultrasonic Cleaning and Anti-Fog Coating Machine

Product Description

1. Model: SC- AUA series

2. Cleaning Process: Loading→ultrasonic cleaning→ultrasonic rinsing→D.I. dehydration→drying→

cooling→dip coating→Drying→unloading

3. Transmission: Automatic robotic arm.

4. Main Assembly:

Automatic input and output device,

 automatic swing, automatic lift device,

SS automatic robotic arm,

SS washing tank,

SS washing basket,

ultrasonic device,

I.R. drying,

Coating System,

SS electrical heating,

air purification,

 recycling filtration system,

air exhaust,

digital temperature control,

automatic water level control,

 PLC control, LCD  human machine interface.

5. Basket Capacity: 6PCS~12PCS, 24PCS, 36PCS,51PCS  based on your daily hard coating requirements

6. High duty, quality reliable,easily operated and reasonable price.

7. Various size, power, function are optional



No.	Description	Specification	Remarks
01	Ultrasonic units	Power 300W~3000W (based on tank size) Frequency 40KHz/28KHz	Generator: Power Adjustment ,Frequency Tuning, immersible transducer tank base mounted
02	Heating System	3KW	SS 316
03	Air Heating	3KW	SS304
04	Tank	SS304
05	Rack and Holder	SS304
06	Cooling Unit	Copeland
07	Conveyor	Robotic Arm	SS304
08	Cycling Filtration	SS 304 filter,	Pump anti-corrosion
09	Level Sensor	Omron
10	Temp. Controller	Digital Display	Omron
11	Dehydration	Motor Driven	Speed Adjustment
12	Air Purification	HEPA
13	PLC	Mitsubishi /Siemens
14	LCD Screen	Mitsubishi /Siemens
15	Other Control Components	Brand: Schneider, Omron
16	Construction	All the areas contacted Water SS304	Anti-corrosion ,anti-rust
17 Various Size, Power Optional as your cleaning capacity



Packing &Shipping

plywood packing for export (vaccum packing available).

Shipping by sea





Our Service

One year warranty .

Provide free charge parts, online service, phone service during warranty time.

If still not resolved, we provide  site service .

Remote control function available.





Company  Information

Located in Fengxian Wuxing Industrial Zone, Shanghai Century Washing Machinery has been developing and manufacturing industrial washing machinery since 1999. We are one of the earliest industrial washing machinery ,optical lens manufacturing machinery makers in China and with an experienced designing and manufacturing engineering team. our machines have been widely-sold to around 40 countries and regions in the world.



Our main products included industrial cleaning machine, optical lens cleaning coating machine, automatic conveyor machine and assembly machine, programmable oven etc. The cleaning machines are widely used in automotive, optics, electronics, medical, aerospace, plastic bins and surface treatment industries. For the automotive industry, we supply ultrasonic and spray washers to remove oil and chips on different washing parts. The machines can be fully automatic that integrates with the current production line, or they can be semi-automatic or manual as a budget-tight option. Various machine configurations are customizable based on the washing part characteristics such as length, width, shape, and the location of holes. Different washing processes that involves spray washing, ultrasonic washing, rinsing, blow or vacuum drying can also be designed based on the parts. Water or hydrocarbon-based washing machines are available. The whole washing process is fully controlled by PLCs, and integration with Industrial PCs or SCADA systems is also possible.

For optical industry ,we supply optical basic lens casting line(automatic lens cleaning machine, automatic molds cleaning machine, chemical mixing machine, programmable polymerization oven, curing oven etc.), optical lens hard coating/Anti-fog line . The process is controlled by PLC, and intelligent remote control is available.

Our automatic conveyor line, automatic intelligent assembly line combined with Kuka Robot loading and unloading.



Our current and past clients include: AccuPath Medical China ,Komatsu Japan Group (Japan Indonesia and China), SIAC, Hyundai Beijing, BWI Group, SKF China, Shiloh China, KUKA Robot China, FUNAC Robot China, Parker Hannifin China,, VCST Changzhou HOYA Lens, ROSOMZ Russia, YDS Turkey,  Conant Optical,  Chemilens China and Vietnam, Vision Ease Indonesia etc.



Our certificates: ISO9001:2015, CE
