Product Overview
Description

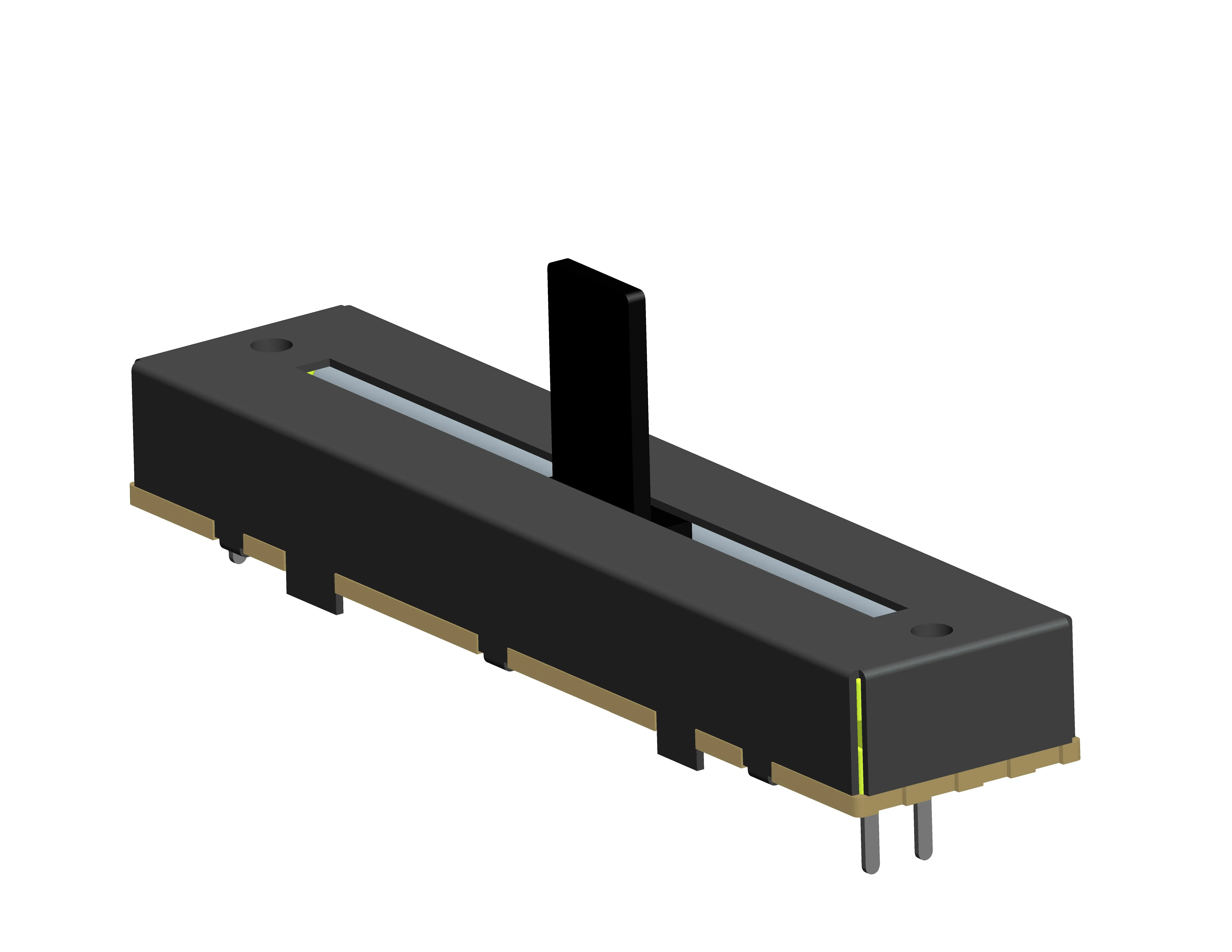

| Slide Potentiometer Model: |
SC6005/SA6005/SK6091/SK6093
|
| Name: | Travel Slide potentiometer |
| Main Specifications: | Slide stroke:60mm Rated power:0.2W The maximum operating voltage:AC 100V; Operating temperature: -10℃ ~70℃; Sliding life: more than 10,000 times; |
| Product Features: | Long adjustable stroke, stable performance, feel good, can lead wave soldering, push the handle can be with LED, products can be positioned with a midpoint. There are many rich products to choose from, can deal with a variety of different needs. |
| Applications: | The product is suitable for the mixer, keyboard, guitar and other related electronic devices, primarily as adjust the volume, adjust the tone to adjust the balance and so on. |

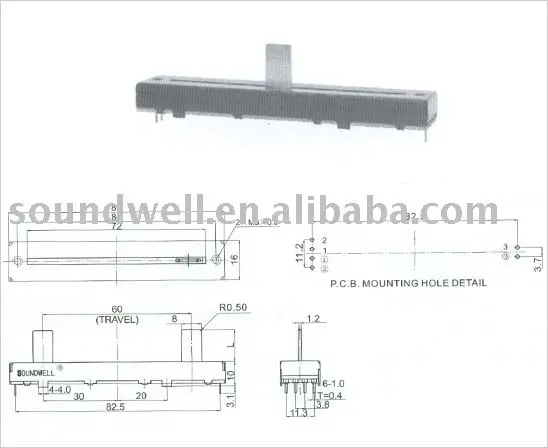

SC6005/SA6005/SK6091/SK6093ProductSpecifications
ONE,MECHANICAL CHARACTERISTIC
1,Sliding force:15~150gf.cm
2,Click force :80~330gf.cm
3,Total travel slide :60mm
4,Lever Stop Strength :≥3Kgf.cm
5,Lever Wobble (mm p-p) :1.6mm Max.
TWO,ELECTRICAL CHARACTERISTIC
1,Total Resistance Range :1KΩ<R<1MΩ,±20%;1KΩ≥R or R≥1MΩ,±30%
2,Resistance Taper :B
3,Rating Power :0.2W
4,Max. Operating Voltage :100V AC
5,Residual Resistance:R1,2≤10Ω;R2,3≤20Ω
6,Insulation Resistance :100MΩ 1 Minute at DC 250V
7,Dielectric Voltage :1 Minute at AC 250V
THREE,ENDURANCE CHARACTERISTIC
1,Rotational Life :10,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
