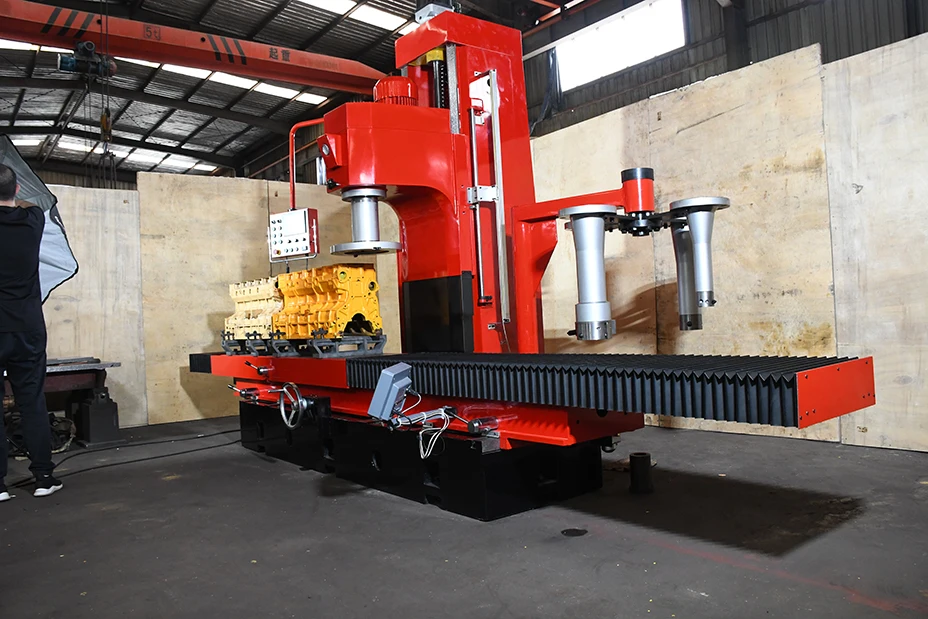

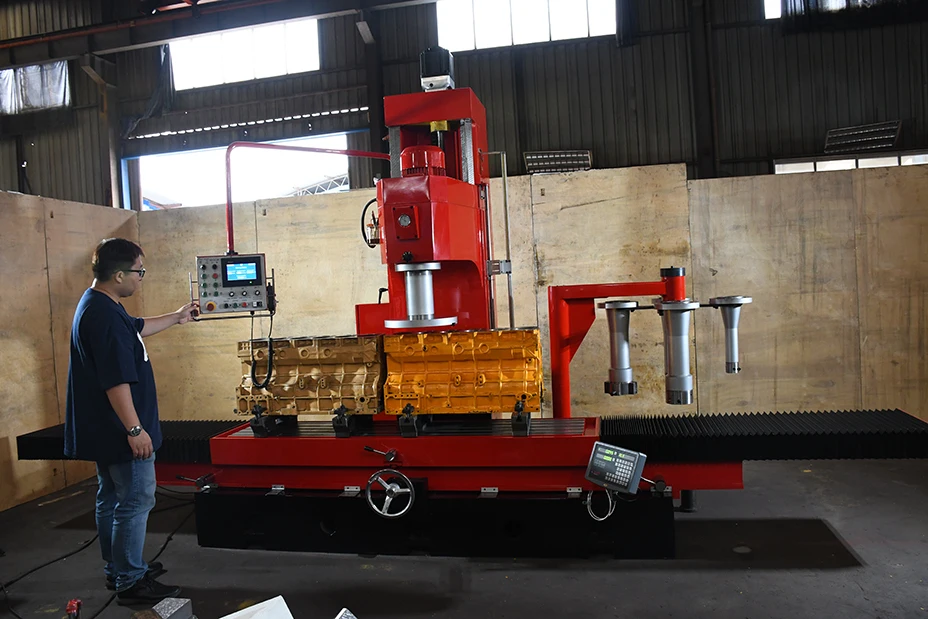

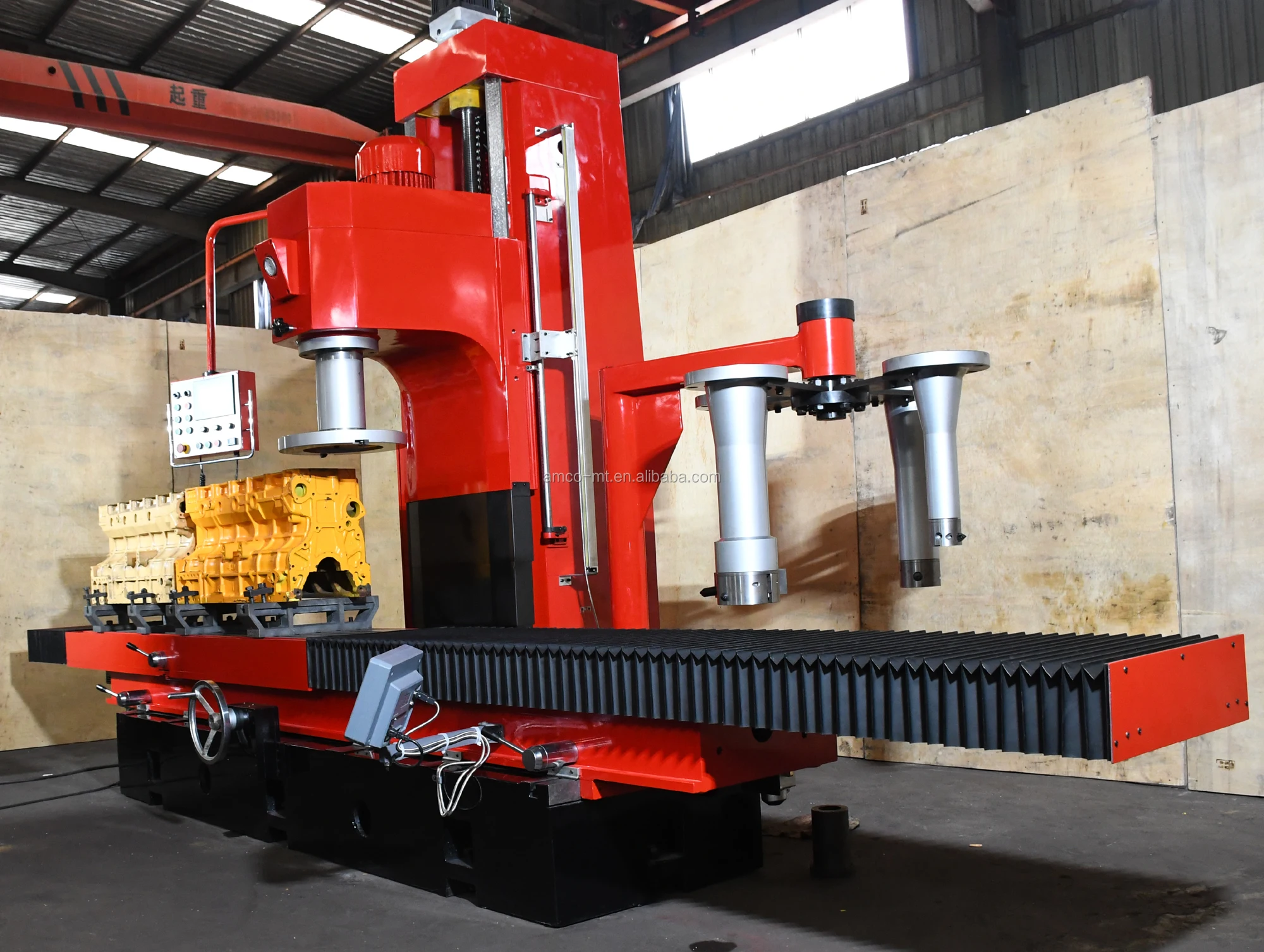

Vertical Fine Boring &Milling Machine TX2150
- Category: >>>
- Supplier: Xian Amco Machine Tools Co. Ltd.
Share on (244702978):
Product Overview
Description
Vertical Fine Boring &Milling Machine TX1500,2150,2500
Charicteristics
Stepless of spindle turning ,feeding and table travelling
Rotating speed and feed of spindle as well as the movement of worktable is free-setup, automatical retuming of spindle can be realized
Longitudingal and cross movement of table
Complete set of accessories of boring, milling, drilling & reaming and easy exchange
Tool fast centering device
Tool measuring device
Boring depth control device
Table with digital readout for jig borer machine
Specifications
| Item | TX1500 | TX2150 | TX2500 |
| 1 Boring range | Φ400mm | Φ400mm | Φ400mm |
| 2 Max. boring head travel | 1000mm | 1000mm | 1000mm |
| 3 Distance spindle centre to column | 375mm | 410mm | 410mm |
| 4 Max. distance boring slid to table | 1500mm | 1500mm | 1500mm |
| 5 Spindle speed(stepless) | 50~1200r/min | 50~1200r/min | 50~1200r/min |
| 6 Bring feed (Stepless) | 14~900mm/min | 14~900mm/min | 14~900mm/min |
| 7 Max. boring depth | 500mm | 500mm | 500mm |
| 8 Table surface | 500×1500mm | 500×2150mm | 600×2550mm |
| 9 Table travel lengthwise | 1500mm | 2150mm | 2700mm |
| 10 Max. milling length | 1100mm | 1800mm | 2300mm |
| 11 Table speed (Stepless) | 0~2000mm/min | 0~2000mm/min | 0~2000mm/min |
| 12 Table movement crosswise | 200mm | 200mm | 200mm |
| 13 Max. workpiece on machine | 1000kg | 1200kg | 2500kg |
| 14 Milling width | 315mm | 315mm | 400mm |
| 15 Optional milling width | 400mm | 400/500mm | 315/500mm |
| 16 Max. distance between outer cylinder centres | 1250mm | 1850mm | 2550mm |
| 17 Spindle motor | 5.5KW | 5.5KW | 5.5KW |
| 18 Motor for boring feed (servo motor) | 2KW | 2KW | 2KW |
| 19 Motor for table feed (servo motor) | 2KW | 2KW | 2KW |
| 20 Amount of working table T slot | 5 | 5 | 5 |
| 21 Work height required | 2860mm | 2860mm | 2860mm |
| 22 Height of column | 2100mm | 2100mm | 2100mm |
| 23 Total length of machine | 2600mm | 5100mm | 5900mm |
| 24 Total width of machine | 1630mm | 1700mm | 1900mm |
| 25 Working space required | 3700×1630mm | 5100mm×1700mm | 6000mm×1900mm |
| 26 Net. Weight approx.. | 3500kg | 5000kg | 5800kg |
| 27 Shipping weight approx. (wooden box) | 3800kg | 5600kg | 6600kg |
| 28 Shipping space required | 2230×1870×2580mm | 3550×1924×2580mm | 4350×21400×2580mm |
| 29 Shipping volume | 10.8 | 18.02 | 23.19 |
