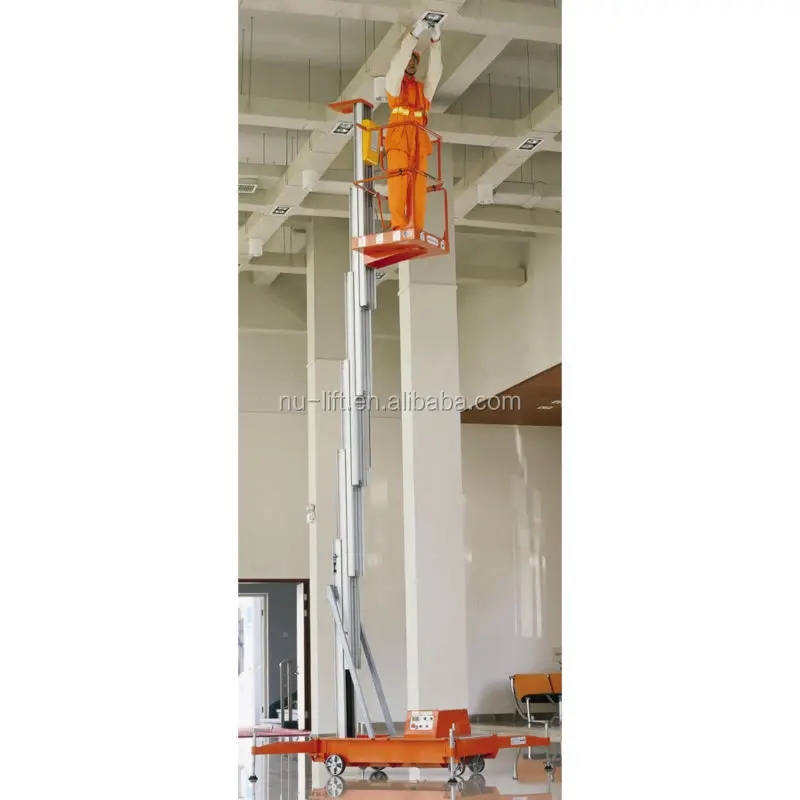

Single Mast Mobile Aluminium Work Platform

Product Overview

Description

Product Description

•Single Mast

•Capacity:125Kg,150Kg.

•Max.Platform Height:6000,8000,10000mm.

•Standard equipment

-Leveling outrigger device

-Emergency stop button

-Battery charge indicator

-Electric limit switch

-Two controllers operation

-Emergency down button

-Leveling indicator

-Over loading limited













Model			AWP6-1000	AWP8-1000	AWP10-1000
S.W.L.		kg	150	125
No. of including person			1
Platform floor height		mm	6000	8000	10000
Working Height		mm	7700	9700	11700
Overall Length		mm	1330
Overall Width		mm	800
Overall Height		mm	1950	2050	2150
Platform Size		mm	650*600
Ground clearance		mm	80
Wheelbase		mm	1110
Lifting Motor	AC	vac/kw	110-230VAC/0.75kw
	DC	vdc/kw	24VDC/2.0kw
Up/Down speed		sec	38/35	44/38	46/40
Batteries		v/Ah	2*12V/60AH
Charger			24V/10A
Tyres	Back wheels	mm	Ø180*50
	Front wheels	in	5 in
Weight		kg	330	380	430
