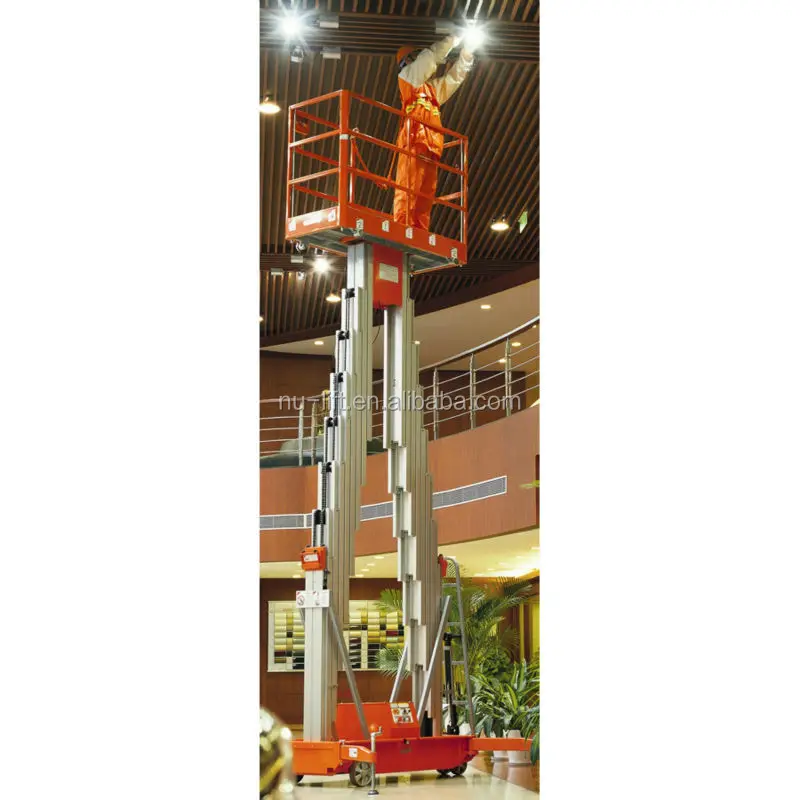

Dual Mast Mobile Aluminium Work Platform

Product Overview

Description

Standard equipment
Leveling outrigger device
Emergency stop button
Battery charge indicator

Electric limit switch
Two controllers operation
Emergency down button
Leveling indicator
Over loading limited











Model			AWP6-2000	AWP8-2000	AWP10-2000	AWP12-2000
S.W.L.		kg	300	300	250	200
No. of including person			2
Platform floor height		mm	6000	8000	10000	12000
Working Height		mm	7700	9700	11700	13700
Overall Length		mm	1550	1550	1670	1790
Overall Width		mm	900	900	900	900
Overall Height		mm	1970	1970	2070	2070
Platform Size		mm	1500*600	1500*600	1620*600	1740*600
Ground clearance		mm	80
Lifting Motor	AC	vac/kw	110-230VAC1.5kw
	DC	vdc/kw	24VDC/2.0kw
Up/Down speed		sec	58/40	62/43	70/46	75/54
Batteries		v/Ah	2*12V/60AH
Charger			24V/10A
Tyres	Back wheels	mm	Ø200*50mm
	Front wheels	mm	Ø180*50mm
Weight	AC	kg	480	580	680	780
	DC		510	610	710	810
