Product Overview

Description

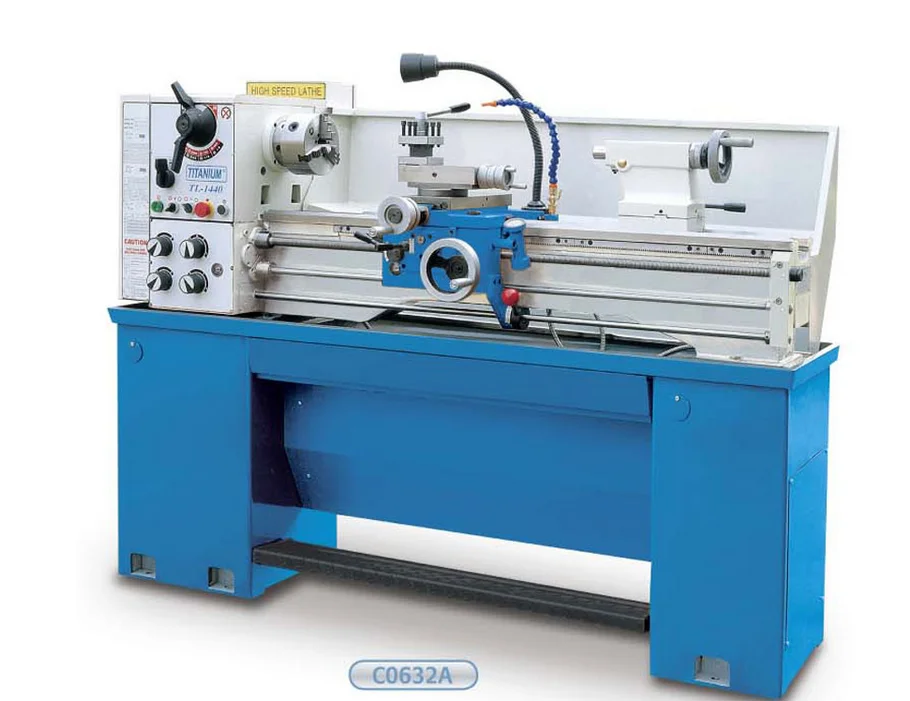

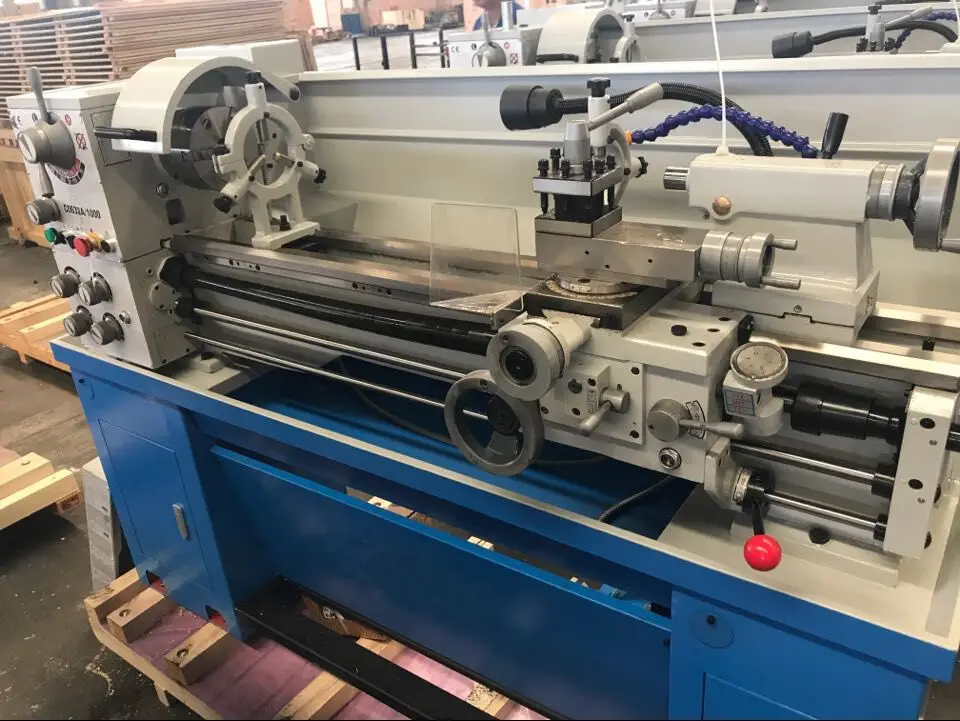

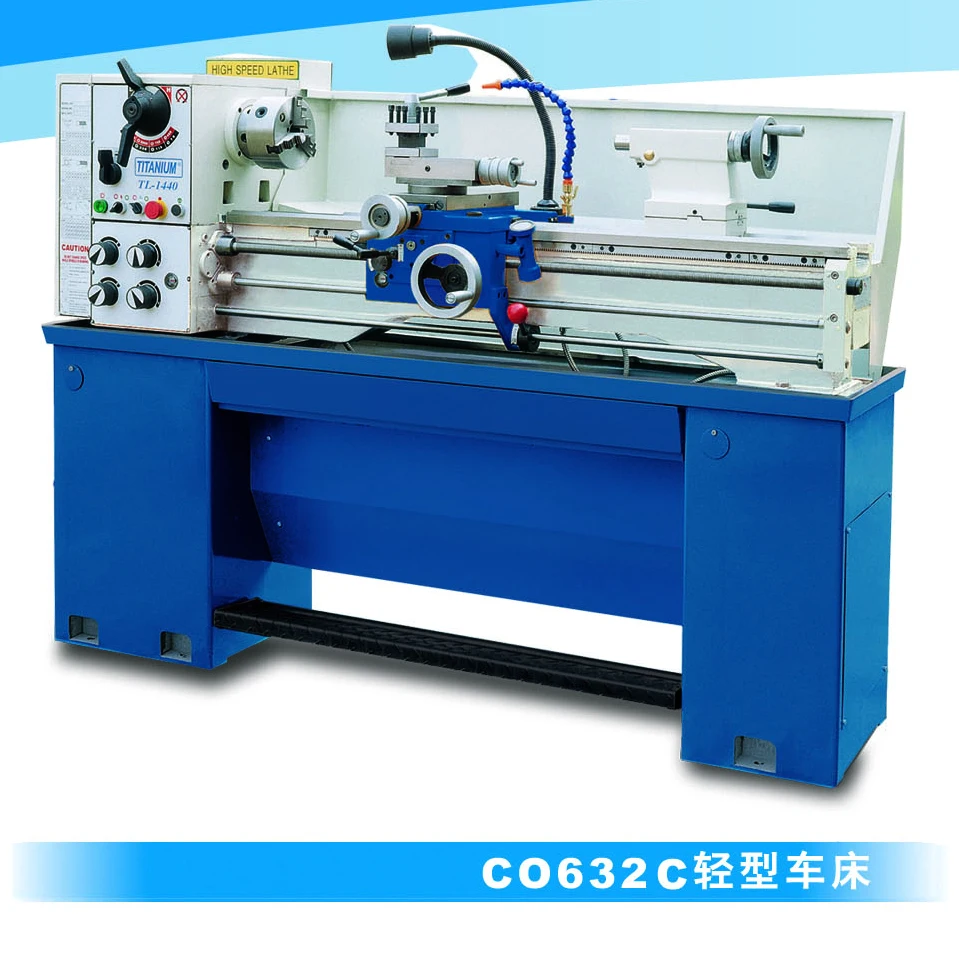

our productsSmall Lathe C0632A


Precision ground and hardened bed ways. The spindle is supported with precision roller bearings. Headstock gears are made of high quality steel ground and hardened. Easy operating speed change levers. Removable gap is provided for larger diameter work. Easy operating gear box has various feeds and thread cutting function.


STANDARD ACCESSORE


            3 Jaw chuck


4 Jaw chuck


Steady Rest


Face Plate Follow Rest





OPTIONAL ACCESSORIES


Live Center Quick change tool post Taper Turning Attachment Brake Coolant System Lamp


































































































































Model



C0632A TOP



C0636A TOP



Capacity



Swing over bed



330mm



360mm



Swing over cross slide



198mm



212mm



Swing in gap



476mm



491mm



Valid length of Gap



210mm



210mm



Center Height



166mm



166mm



Distance between centers



750mm



1000mm



750mm



1000mm



Width of bed



187mm



Headstock



Spindle nose



D1-4 or A2-4



Spindle bore



38mm



Taper of spindle bore



No .5 Morse



Range of spindle speed



70-2000r.p.m or 35-2000r.p.m(2 speed motor)



Feeds and threads



Max.travel of top slide



68mm



Max. travel of cross slide



160mm



118mm



Max. section of tool



16mmX16mm



Pitch thread of leadscrew



8T.P.I. or 3mm pitch



Longitudinal feeds range



36 Nos.0.0019-0.0273 /Rev.or(32 Nos.0.002-0.548 /Rev)



Cross feeds range



36 Nos.0.0006-0.0094 /Rev.or(32 Nos.0.007-0.0187 /Rev)



Metric threads range



28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch)



Inch threads range



36 Nos.8-112 T.P.I. or (34 Nos .4-56 T.P.I)



Tailstock



Dia.of tailstock sleeve



32mm(NO.3M.T.)



Travel of tailstock sleeve



100mm(NO.3M.T.)



Taper of tailstock sleeve



No.3 Morse



Motor



Power of main motor



1.5 KW 3PH or 1 PH
