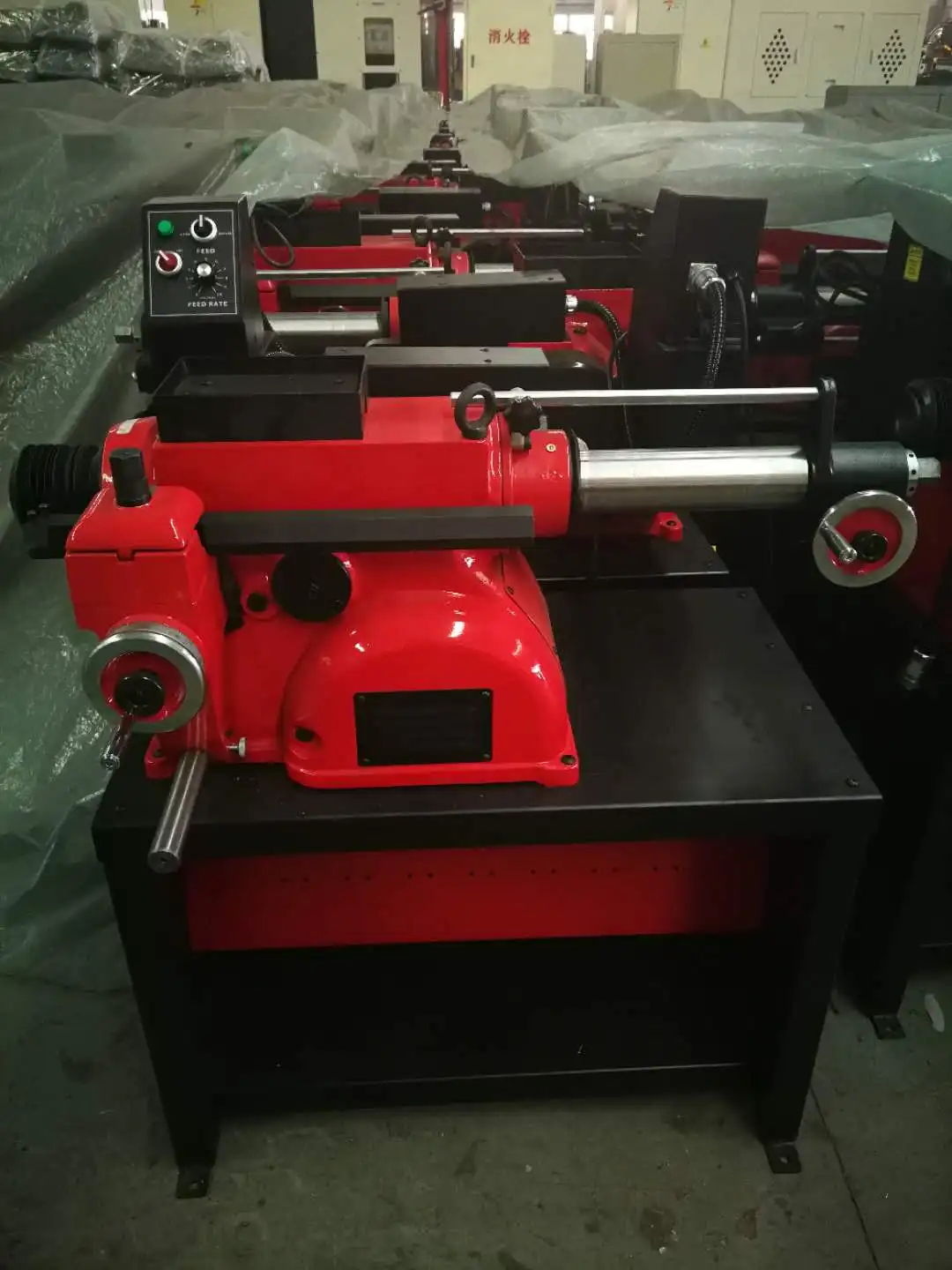

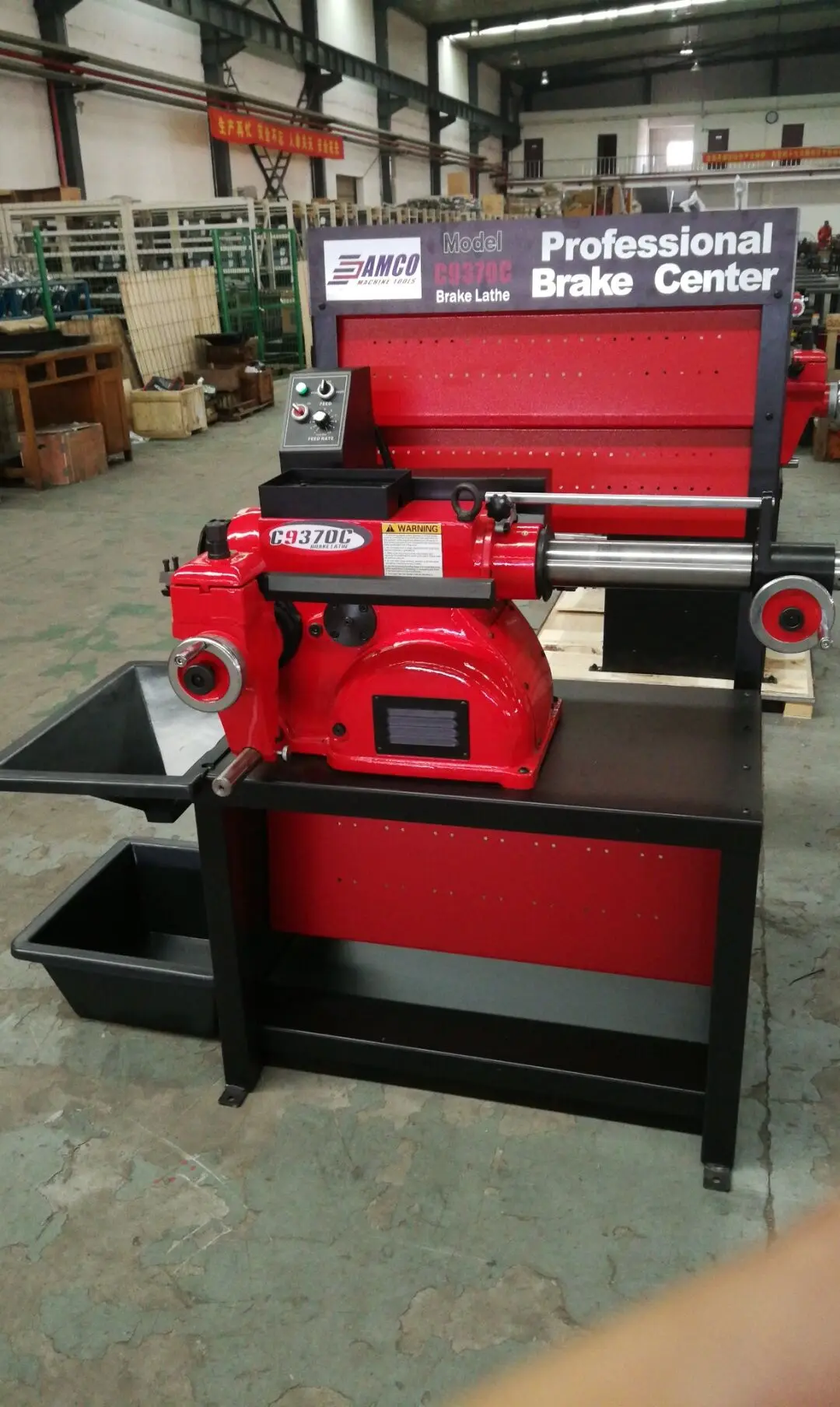

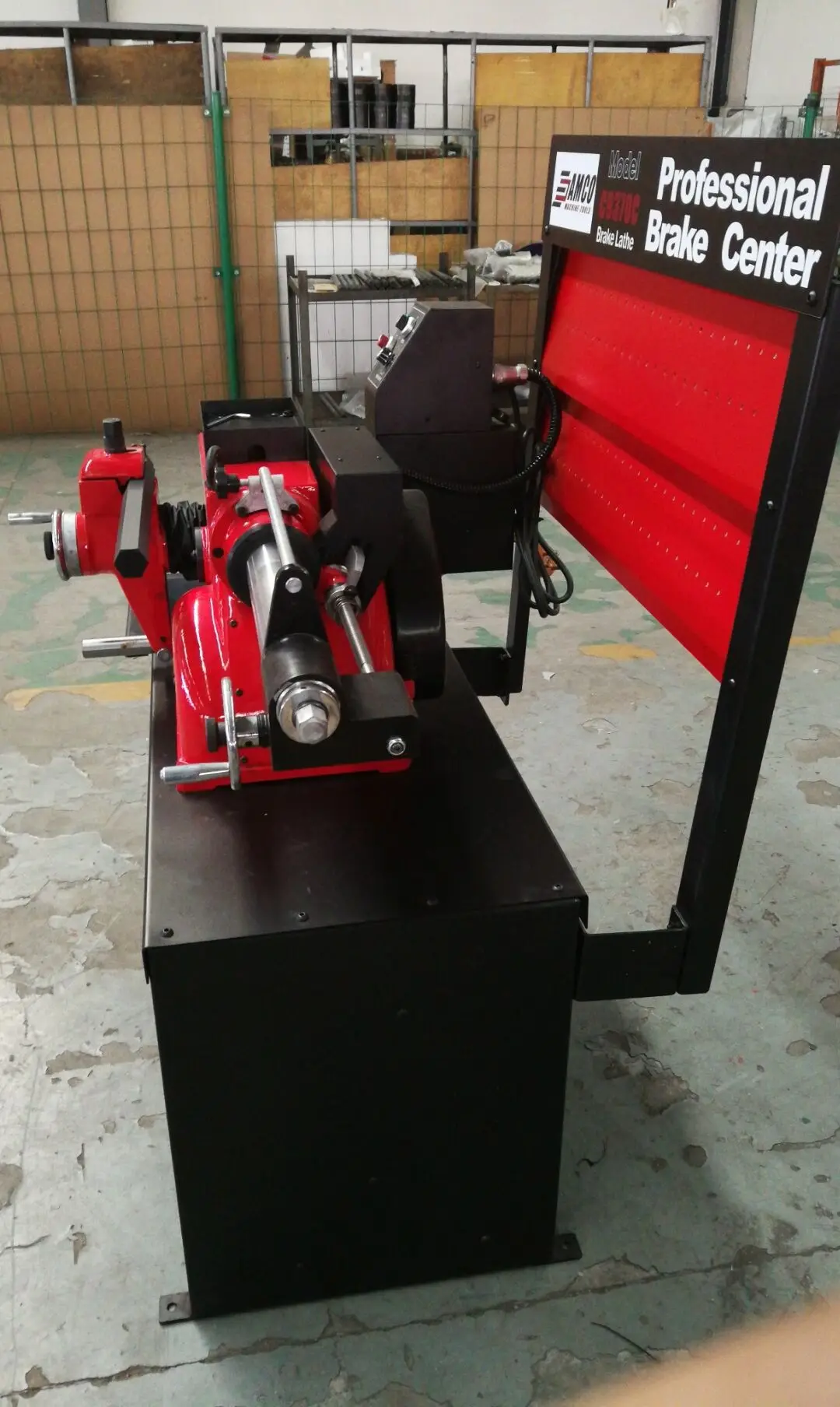

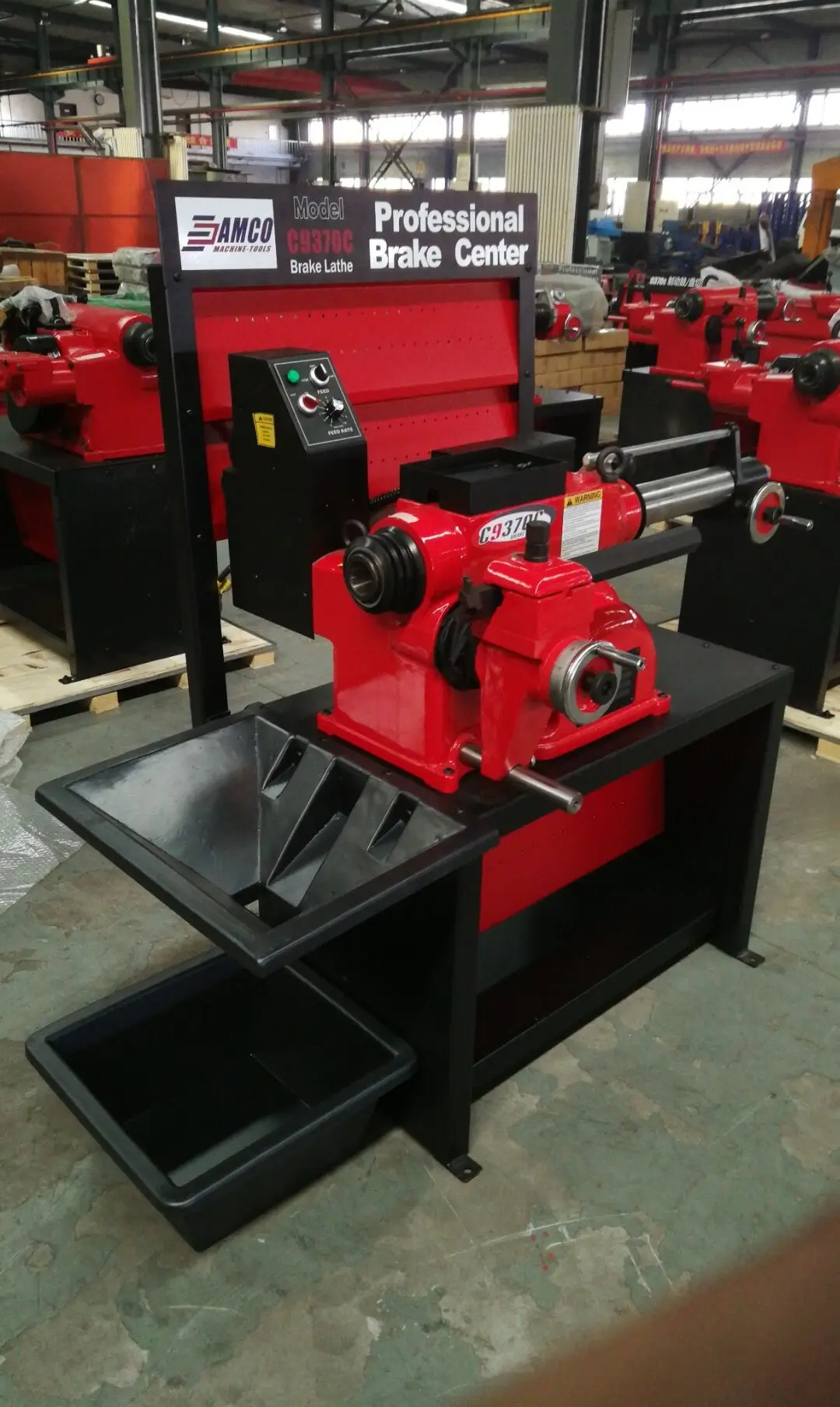

HOT Sale C9370c car brake drum disk lathe machine

Product Overview

Description

  HOT SALE C9370C Brake Drum/Disc Cutting Machine



Feature:

1. The lathe uses precision electric DC servo motors designed to meet the demanding requirement of industrial motion control.
2. The "Change Adapter" system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don't lose them.
3. The precision twin cutter tools and a quick drum to rotor changeover t

o help increase your service capability.
4. Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts.
5. A convenient top storage tray means you can easy to take that are your favorite adapters and tools.
6. Separate motors on the drum and rotor feed help maximize the main motor's efficiency.

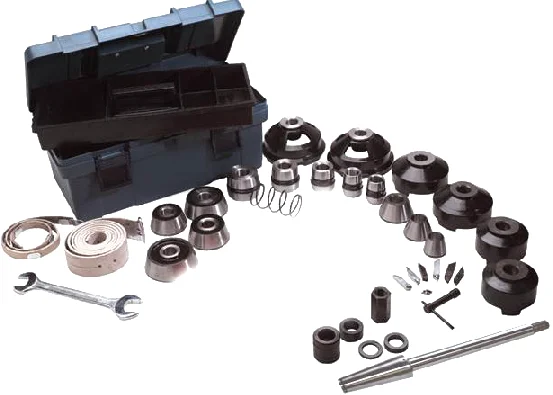

7. The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks.
8. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.



Specifications

Model	C9350c	C9370c
Spindle Travel	175mm	251mm
Spindle Speed	70, 80, 118rpm	70,88,118 rpm
Spindle Feed Speed	Min 0.05mm/rev	Min 0.05mm/rev
	Max 0.5mm/rev	Max 0.5mm/rev
Cross Feed Speed	Min 0.05mm/rev	Min 0.05mm/rev
	Max 0.5mm/rev	Max 0.25mm/rev
Handwheel Graduations	0.05mm	0.05mm
Rotor Diameter	180-381mm	180-457mm
Rotor Thickness	48mm	102mm
Drum Diameter	152-450mm	152-450mm
Drum Depth	175mm	251mm
Motor	1PH 110V/220V 50/60HZ ,       3PH 380V 50/60HZ
Gross Weight	290KG	325KG
Dimension	1010*950*1145mm	1130*1030*1150mm
