In China,high quality AM FM radio pcb circuit board
- Category: >>>
- Supplier: Shenzhen Htwy Technology Co. Ltd.
Share on (245411910):
Product Overview
Description
Introduction of our craft capability :
Specifications | Details |
Material Type | FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont |
Material Thickness ( in inches) | 0.062”, 0.080”, 0.093”, 0.125”, 0.220”, 0.047”, 0.031”, 0.020”, 0.005" |
Layer count | 1 to 28 Layers |
Max. Board Size | 23.00” x 35.00”(580mm*900mm) |
IPC Class | Class II, Class III , Class 1 |
Annular Ring | 5 mil/side or Greater (Min. Design) |
Finish Plating | Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other |
Copper Weight | 0.5OZ-7OZ |
Trace/Space Width | 3 Mils or Greater |
Drill Clearance | 0.1mm(laser drilling) |
Plated Slots | 0.036 or Greater |
Smallest Hole (Finished) | 0.1mm or Greater |
Gold Fingers | 1 to 4 Edge (30 to 50 Micron Gold) |
SMD Pitch | 0.080” - 0.020” - 0.010” |
Soldermask Type | LPI Glossy, LPI-Matte, SR1000 |
Soldermask Color | Green, Red, Blue, Black, White, Yellow, |
Legend Color | White, Yellow, Black, Red, Blue |
CNC Route Point | Any |
Minimum Route Width | 0.031” |
Scoring | Straight Lines, Jump Scoring, Panel Edge to Edge, CNC* |
Body Gold | HARD*, IMMERSION* (up to 50 MICRON GOLD) |
Data File Format | Gerber 274x with embedder aperture |
Fab. Drawing Format | DXF, HPGL, DWG, PDF, Gerber |
E.T Testing | Flying Probe, Single Sided, 1up Plate, Clampshell, Net List |
Counter Sink / Counter Bore | Availiable up to 0.250 Diameter |
Control Impedence | Yes |
Blind Vias / Buried Vias | Yes |
Peelable Mask | Yes |
Carbon | Yes |
Packaging & Delivery:
Packaging Detail: | Anti-static bag, bubble pack, carton box,Vacuum... |
Delivery Detail: | 3-15Days, delivery just-in-time |

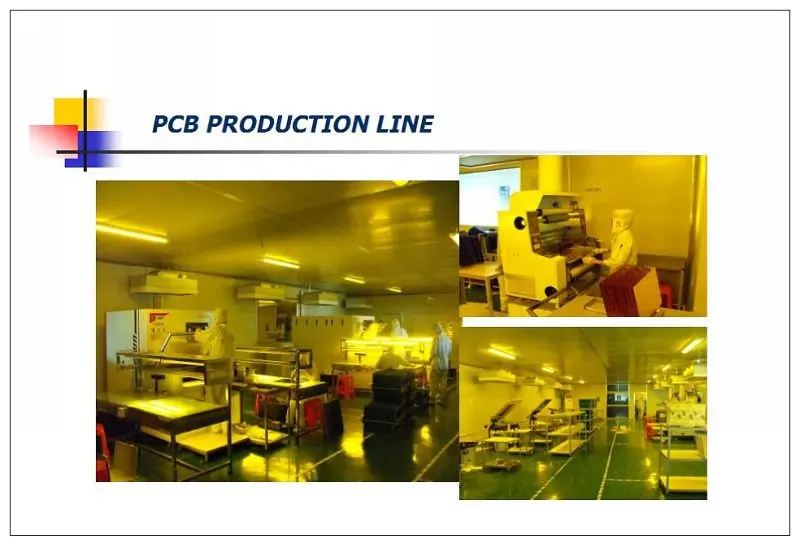

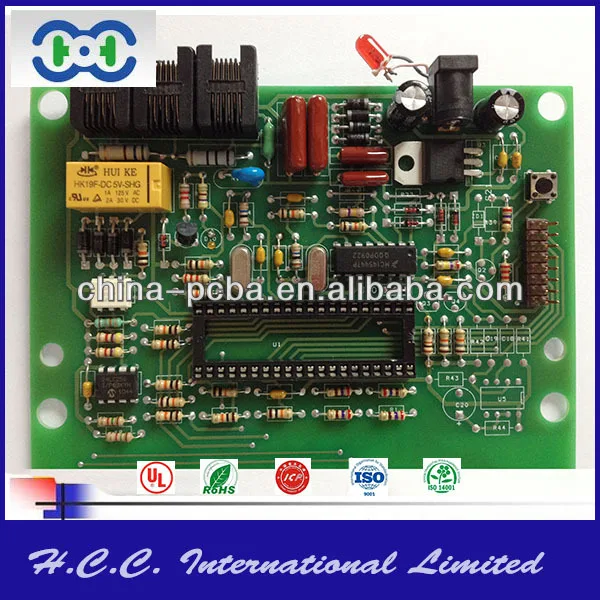

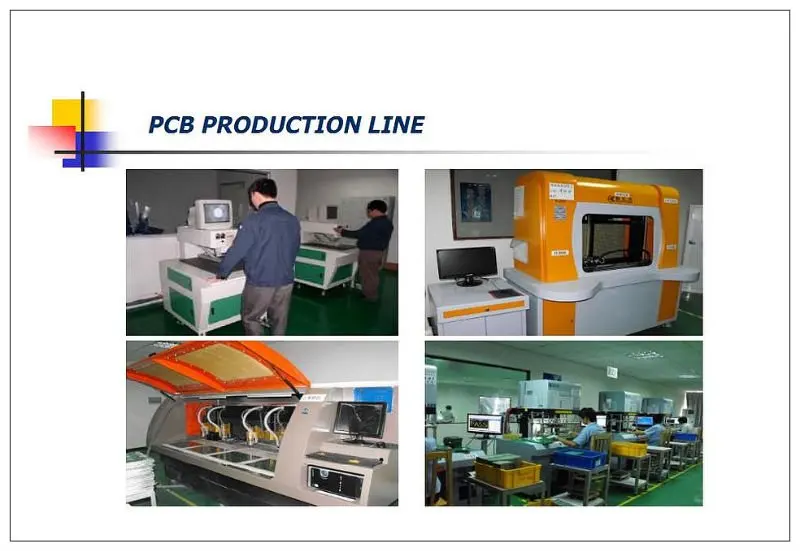

Pictures of products:
We are a professional PCB , PCBA manufacturer who is specialized in manufacturing SS, DS, HDI and multilayer PCB. It is honored the excellent supplier by many large companies both at home and abroad.
We can offer all kinds of service including PCB,PCB assembly sample order and batch order. With ISO9001, ISO14001, TS16949 and the UL(E332411) approval and advanced facilities imported from voersea, we provide PCB layout,PCB design,PCB fabricaton,PCBA,PCB assembly,FPC,rigid board,flex board,rigid-flex board,Blind via board,bured via board,single board,double-sided board,multi-layer board.Hasl board,immersion gold,immersion silver,plating gold.
Our SMT machines make it easy for us to place surface mount parts with great accuracy and quality. Our machine capabilities can handle 0402mm component sizes, Ball Grid Arrays and Micro Ball Grid Arrays with a ball pitch of 1mm to 3mm. Many of our Thru-Hole operations are automated through the use of robotic axial equipment. No project is too small or too large;
We have set a great example in the PCB field of flying probe testing, buried and blind via and special controlled impedance.With the continuous effort of the R&D, we have successfully established our reputation in mechanical micro via, high density impedance and HDI.
Any PCB or PCBA , welcome to enquiry!
