Популярная компьютеризированная стеганая машина с одной иглой, стеганая машина с одной головкой
- Category: Quilting Machines >>>
- Supplier: Nantong Xinjia Machine & Electron Co. Ltd.
Share on (246115053):
Product Overview
Description

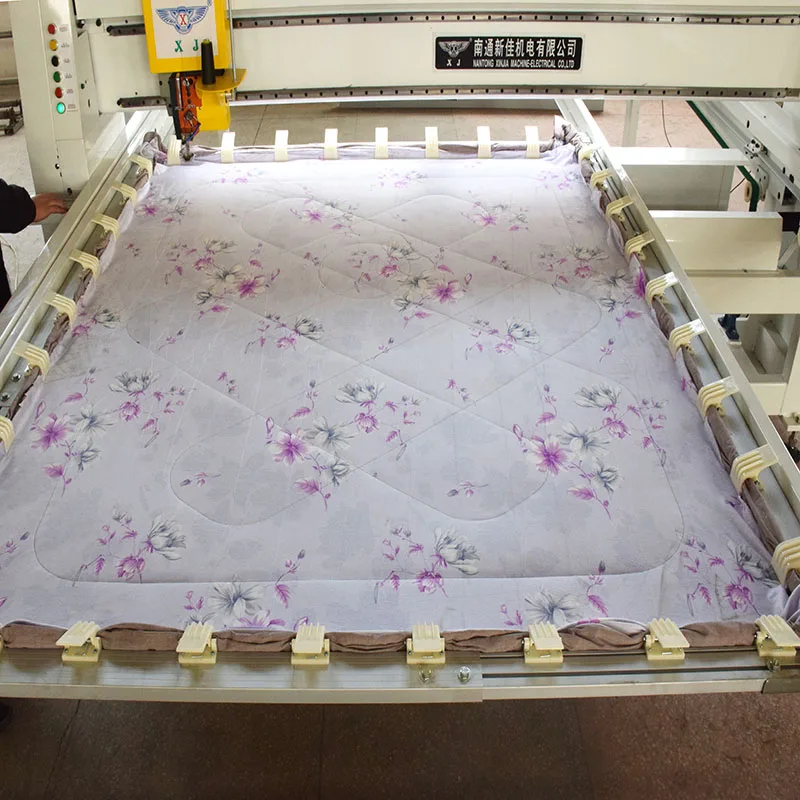

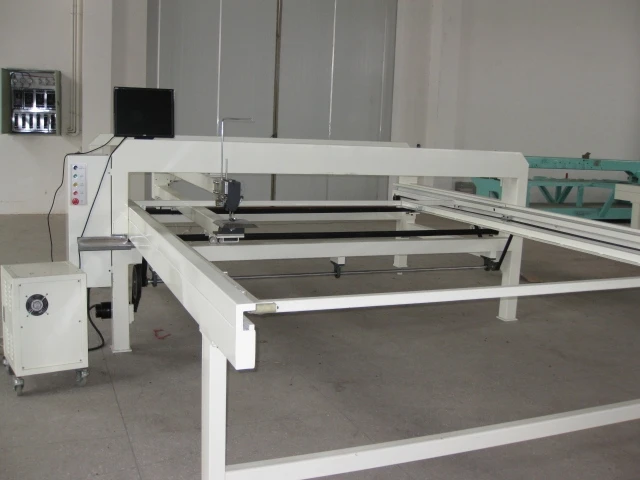

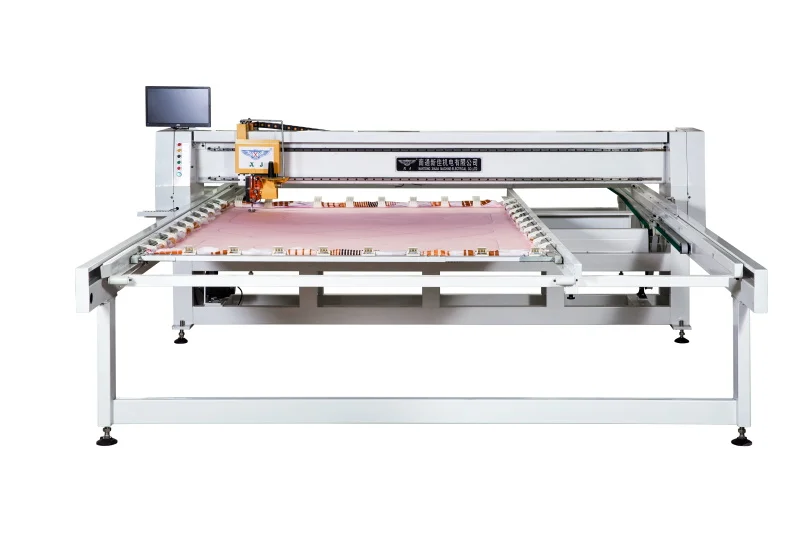

XJ-H series Computerized Single Needle Quilting Machine
( Frame moved)
Picture, Name, Model, Quantity, Price
This series accept non-standard number of heads and needle pitch customized
Language: chinese,english and Russian
The most advanced software, easy to operate, simple, stable. if software updates, we will send you, and all of them are free the whole life.
APPLICATIONS:
Quilting processed goods: clothing,sleeping bags,summer quilts,mattresses,bedspreads,seat cushions,etc.
Main Details:
1.head used servo motors,provide powerful and accurate driving
2.Quilting patterns more than 200 Kinds kept in the computer,also can read new pattern by USB.
3.High speed running in 2800RPM, precision quilt, low-noise and long life machine, to achieve the goal of high production and high quality
4.Automatically quilting according to any pattern selected
5.Offer forward and backward movement buttons as well as threading button.
6.Koban large-size Rotary Hock to be sure low thread-breakage
7.Power computer functions, professional computer control system, automaticality finish the quilting process
8.DST,DSB,ZSK,SWF format can be read ,compatible with different format pattern ,100,000 stitch pattern in machine computer all designs and program can read from USB.
Model Figuration:
Model | XJ-2628H | XJ-2832H | XJ-3032H | XJ-3535H |
Maximum Quilting Material size | 2.6m×2.8m | 2.8m×3.2m | 3.0m×3.2m | 3.2m×3.5m |
Needle Drop Size | 2.4m×2.6m | 2.6m×3.0m | 2.8m×3.0m | 3.0m×3.3m |
Sewing Machine | Single Line style, Double Line style, big rotary shuttle | |||
Max Quilting Thickness | 1200gsm | |||
Needle | SINGER MR5 18-23# | |||
Speed | 2200Needle / SPM | |||
Needle distance | 2-7mm | |||
Dimensions (Length*width*height) | 5.0m×4.0m ×1.4m | 5.4m×4.2m ×1.4m | 5.4m×4.4m ×1.4m | 5.8m×5.1m ×1.4m |
Power | AC220V,50Hz 1.5Kw | |||
Weight | 1800kg | 1900kg | 2000kg | 2100kg |
After-sale service:
1) Installation & Commissioning: The seller can provide the installation, commissioning
and training service in buyer's factory, while the buyer needs to pay for VISA application,
air ticket, accommodation, and (if necessary) interpreting fee for seller’s technician.
2) After one year, the buyer needs to pay USD200/day/person as service charge, as well
as the fee of VISA application, air ticket , accommodation, and (if necessary) interpreting
fee for seller’s technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the
moment the seller dispatches the machines. For the detailed guarantee period of each
part, please refer to the operation manual.Wearing parts,consumption material and the
damage incurred by the buyer's incorrect operation are out of warranty range.
