Automatic Ironing Machine YPAI 2500
- Category: Commercial Laundry Equipment >>>
- Supplier: Taizhou Haifeng Machinery Manufacturing Co. Ltd.
Share on (246145084):
Product Overview
Description
Ironing machine,laundry equipment,auto ironing machine ,Commercial Laundry Equipment
flat ironer, ironer

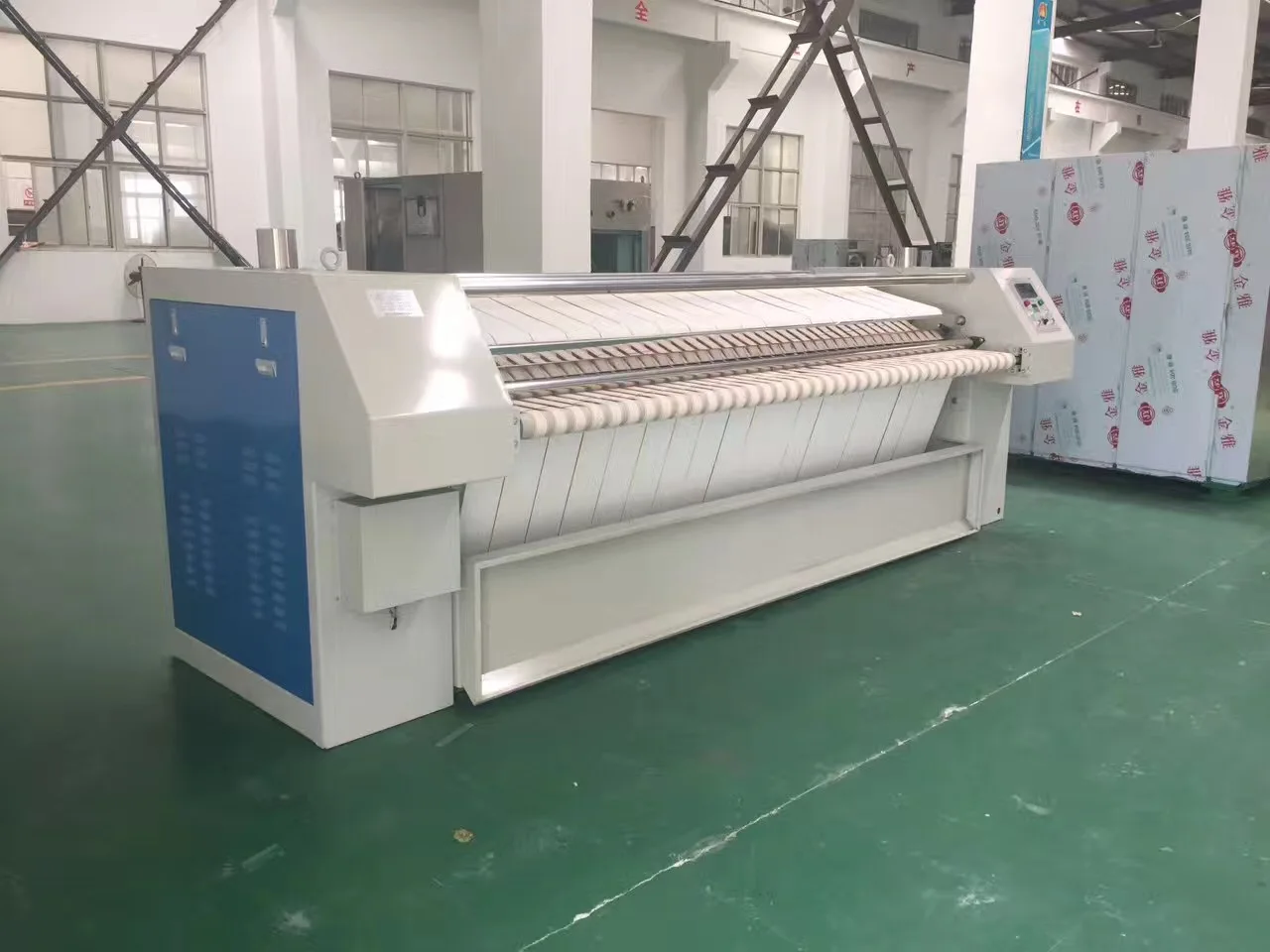

Automatic Ironing Machine,YPAI-2500
According to the width of the fabric , the length of the industrial ironing machines drum could be 1800mm ,2500mm ,2800mm,3000mm , and to meet different request of ironing speed , we produce industrial ironing machine with different drum that one drum or two drums or three drums . the more drums it has, the faster the machine will be .

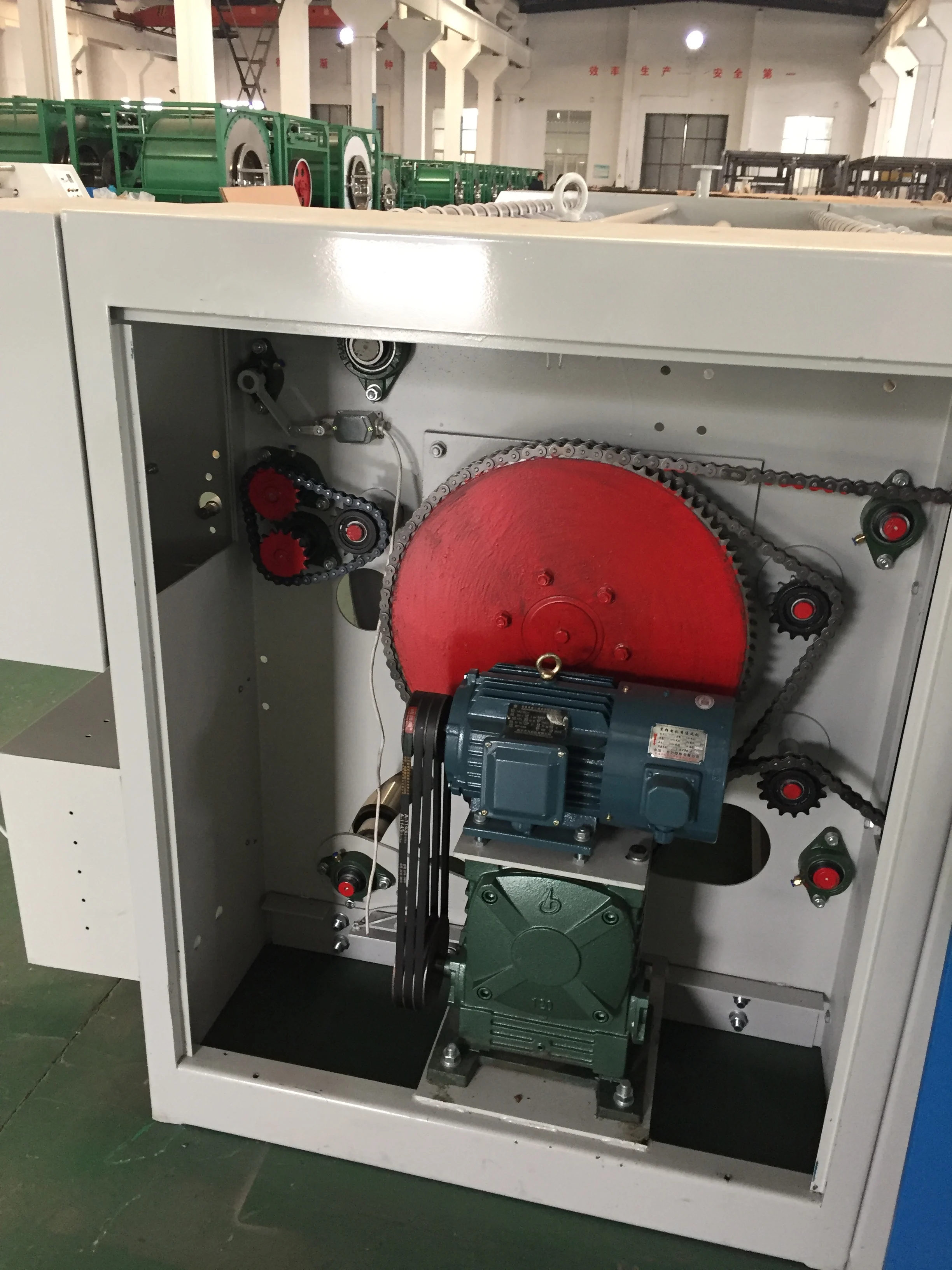

the machines are consist of stainless steel drum , basement ,bracket ,speed inventor , transmission belt , transmission drum , transmission parts , electricity parts and so on .
bed sheet , curtain , table cloth or liens are transmitted by transmission parts to the drum surface which is heated by steam or electricity ,then the material is ironed by the high temperature
You will find it is difficult for you to find lines on the material !
Mode | YPAI-2500 | YPAII-2500 | YPAI-2800 | YPAII-2800 | YPAI-3000 | YPAII-3000 |
Ironing scope(mm) | Does not limit ,≤2500,≤3 | Does not limit ,≤2880,≤3 | Does not limit ,≤3000,≤3 | |||
Quantity of drum() | 1 | 2 | 1 | 2 | 1 | 2 |
Steam presser(Mpa) | 0.4-0.6 | 0.4-0.6 |
| |||
Ironing speed(m/min) | ≤10 | ≤16 | ≤10 | ≤16 | ≤10 | ≤16 |
Temperature of drums surface() | The gauge pressure is the 0.4MPa chronometer 164 | |||||
Steam consumption (Kg/h) | 70 | 120 | 85 | 160 | 85 | 120 |
Motor power(Kw) | 0.75 | 1.5 | 0.75 | 1.5 | 0.75 | 1.5 |
Power(V) | 380V Three-phase four wires |
|
| |||
Overall dimension(mm) | 3540*1440*1400 | 3040*2440*1400 | 3830*1152*1300 | 3830*1960*1700 | 4040*1440*1400 | 4040*2440*1400 |
Weight(Kg) | 1200 | 1900 | 1500 | 2000 | 1500 | 2000 |
