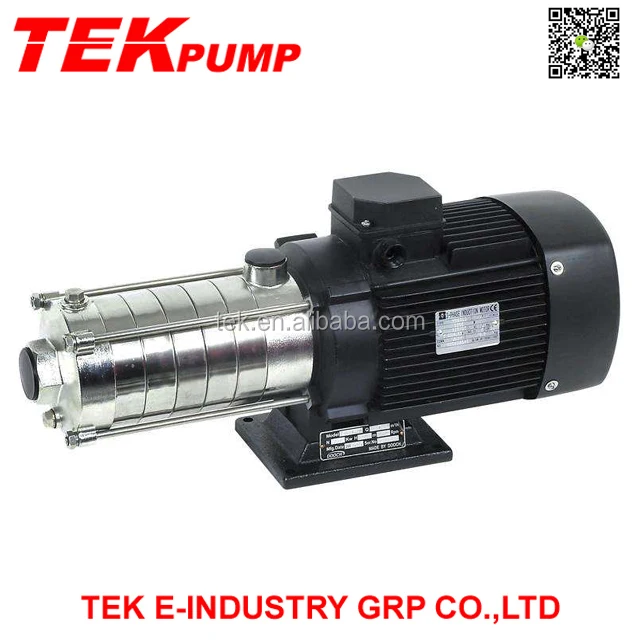

CHLF Series Light Horizontal Pump CHLF20

Product Overview

Description

CHLF Series Light Horizontal Pump CHLF20



Application
CHLF,CHLK type pump are mainly used in industrial field:
Air-conditioning system
Cooling system
Industrial cleaning
Water treatment(Water purification)
Aquiculture
Fertilizing / metering system
Environmental application
Other special applications
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value,temperature, solvent and oil content.
Operation condition
Liquid temperature:
Normal temperature type: -15°C~+70°C
Hot water type: +70°C~+110°C
Highest ambient temperature: +40°C
Max.operation pressure :10 bar
Max.inlet pressure is limited by max.operation pressure
Pump
Horizontal multistage non-self-priming centifugal pump, attached with long shaft electric motor.
Compact structure renders small size of pump;axial inlet and radial outlet.



Model	Power		Flow	Head	Speed
	KW	HP	m3/h	m	r/min
CHLF20
CHLF20-10	1.1	1.5	20	10	2900
CHLF20-20	2.2	3	20	22	2900
CHLF20-30	4	5.5	20	34	2900
CHLF20-40	4.4	6	20	46.5	2900
