Product Overview

Description





Detailed Description


Detailed Product Information:






    Keli is one of the highest and newest-technology industrial enterprises awarded many





great honors in China .It was established in 1998,it has more than 30million fixed asset and it possesses a great deal of funds and researching abilities.the machine is widely used in the madical and food,cosmetic packing field.





     We believe our reasonable price,high quality and good service surely will  be your first choice.





 Main technology parameter

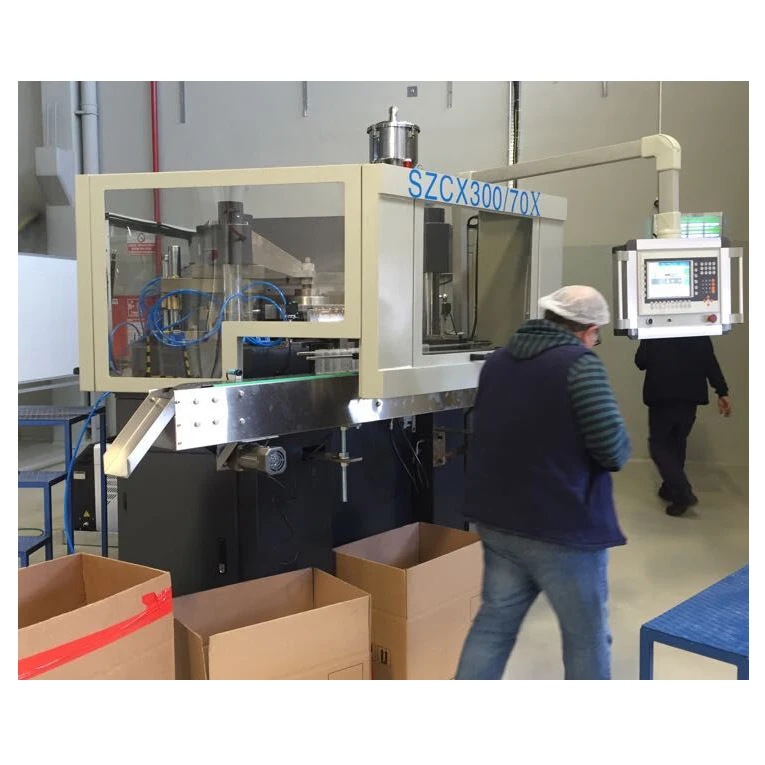

SZCX250/60 injection blow molding machine parameter
NoItemUnitData
SZCX300/70X
1Dia.of screwmm55
2Max theoretical injection capacitycm3400
3Total power for charging barrelkw18.7
4Plasticising capacity approxg/s560
5Clamping force of injection moldkn705
6Opening stoke of injection moldmm150
7Clamping force of blow moldkn110
8Opening stoke of blow moldmm150
9Dry cycle times2.9
10Max swing radiusmm612
11Liftion height of rotary tablemm75
12Max plane size of mold(L*W)mm780*460
13Min mold thicknessmm254
14Motor powerkw36.7+12
15Mold heating powerkw5.6
16Pressure of hydraulic systemMpa14
17Max working pressure of compressed airMpa0.7-0.9
18Discharge rate of compressed airm3/min0.8
19Consumption of cooling waterm3/h6
20Dimension of machine(L*W*H)mm4830*1750*2200
21Machine weightT10.5
22Range of formability productml2-1000
23Height of formability productmm≤250
24Dia.of formability productmm≤100







Product and Tech features for your ref:


1)  Bottle neck moulded by means of thermo-runner system.


     High  pressure injection making accuracy of bottle mouth,


     bottle neck and screw thread as well  as sealing ability.


     No joint seam,no leftover  bits making reduction of raw material.





2)  High efficiency of continuous production with  the horizontal three-position


     swivel device .Automatic manufacture, no secondary pollution


     conforming to the requirement of sanittation.





3)  Using fame brand and high quality hydraulic,pneumatic and electrical


     elements ensures the  system's good preformance and high reliability.





4)  Double propertional  hydraulic system making the adjustment of hydraulic


     system handy and keeping system stable in performance.





5)  PLC control system of well-known brands and the whole machine operated


     easy and convenient











Service:





1)  Keli is not aim to produce machinery in batches,it will analysis the bottle


     shape,purpose,output and cost in order to make more suitable machine.





2)  Keli not only help our customers to assemble the machine in their factory


     and training the workers but also offer before-sale,middle-sale and after-sale


     service in order to develop new technology and products to satisfy the diversified


     need of market.
