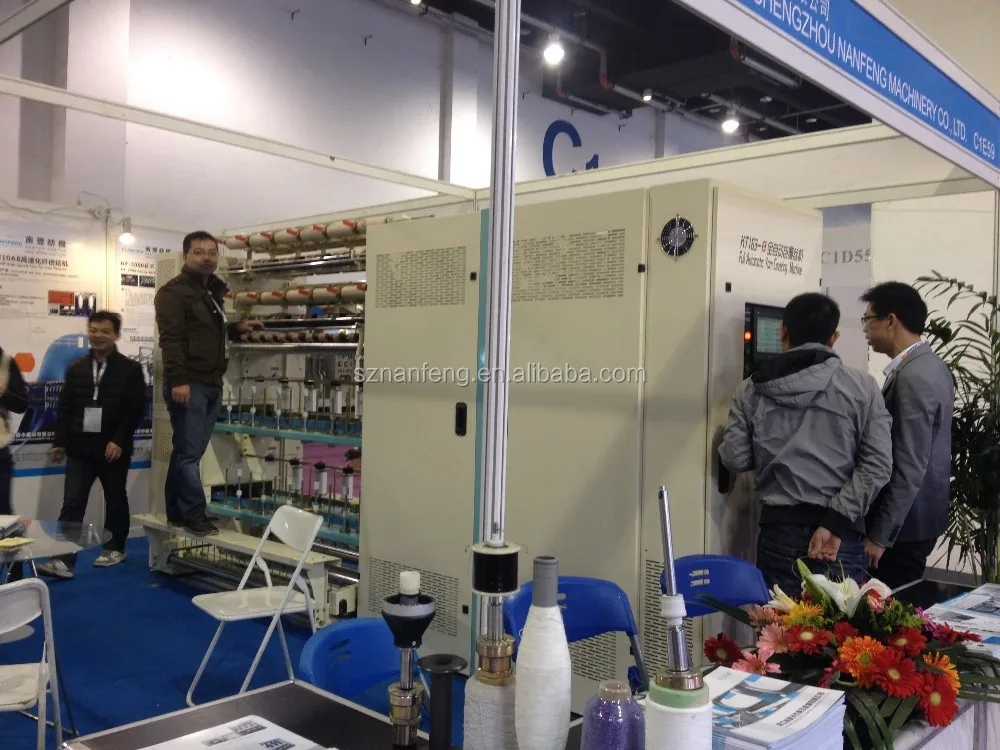

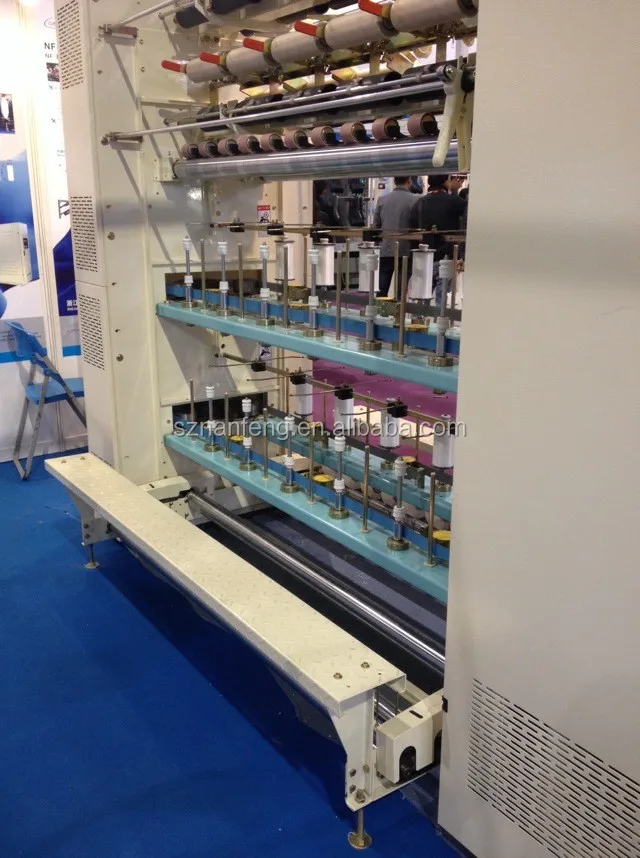

LYCRA/ SPANDEX /RUBBER YARN COVERING MACHINE (MENEGATTO /OMM)
- Category: >>>
- Supplier: Shengzhou Nanfeng Machinery Co. Ltd.
Share on (247060534):
Product Overview
Description
PRICE : | With two inverter :21000 USD | With two inverter:24500USD |
Type | Two sides and two layers | Two sides and two layers |
The Number of Spindles
| 192pcs (24 spindles/section x 8 sections ) | 288 Spindles (32 spindles /sectionx9section) |
Length ( mm/section) | 1840mm | 1840mm |
Overall dimension (L*W*H mm) | 16400mm x 1360mm x 2176m | 18600mmx1360mmx2176 |
The speed of Spindles(r/m) | 9000-15000 | 9000-15000 |
Range of Covering Twist Number(T/M) | 200-3000 | 200-3000 |
Twist Direction | S or Z | S or Z |
Aluminum Bobbin Size (mm) | 30X36X84X140 | 30X36X84X140 |
Take up forming mode | Mechanical forming | Mechanical forming |
Take up Bobbin size | L:220 mm | L :160mm |
Intalled power (kw ) | 9KW+9KW | 11 KW+11KW |
Voltage | 380V 3phase | 380V 3phase |
Frequency (HZ) | 50hz | 50h |
