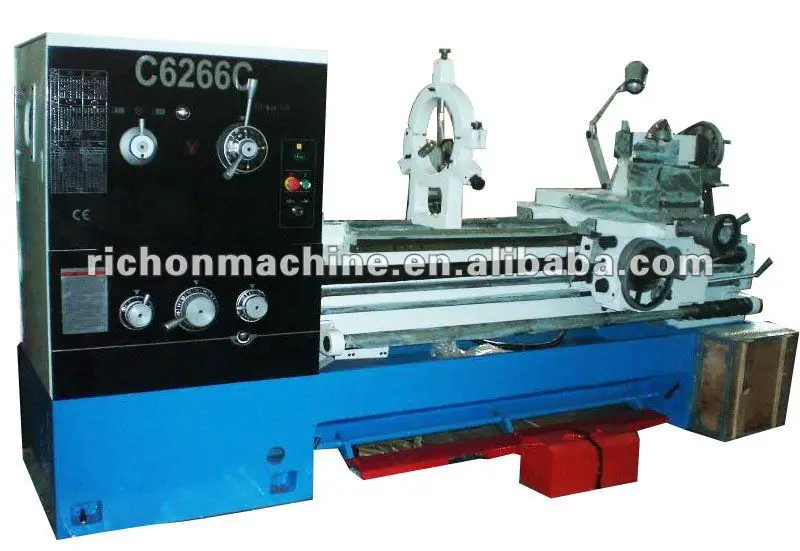

  • Universal Lathe C6266C mesin bubut torno para metal lathe machine
Universal Lathe C6266C mesin bubut torno para metal lathe machine
Universal Lathe C6266C mesin bubut torno para metal lathe machine
Universal Lathe C6266C mesin bubut torno para metal lathe machine

Universal Lathe C6266C mesin bubut torno para metal lathe machine

Share on (247217412):


Price:9.000,00 US$

Quantity:


Product Overview

Description







Products Description


Big bore gap-bed lathe C6266C
The surface of the bedway is supersonic frequency hardened.
The spindle bore size is 105mm. The spindle system is high in rigidity and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D.P. threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.


Specification
Item
Model
C6266C
1000
1500
2000
3000
Max. Length swing diameter
Over bed
mm
660(26")
Over carriage
mm
420(17")
In gap
mm
870(34")
Max. length of workpiece
mm
1000(40")
1500(60")
2000(80")
3000(118")
Effective length in gap
mm
240(9")
Spindle
Spindle bore
mm
Φ105(4")
Taper of bore
Φ113mm 1:20
Number of speeds
12
Range of speeds
r, p, m
36-1600
Thread cutting
Metric Range/No
Whitworth Range/No
D.P. range/No
Module Range/No
114mm/22
282 t.p.i/25
564 D.P/24
0.57mm/18
Range of feeds
Leadscrew
mm
0.028-6.43
Cross
mm
0.012-2.73
Rapid traverse
Leadscrew
m/min
4.5
Cross
m/min
1.9
Tailstock sleeve
External diameter
mm
75(2-61/64")
Taper of bore
M.T.No.5
Max. Travel
mm
150


Company information




Customer Review




FAQ


Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.

Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.

Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.

Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.

Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.

Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
