Product Overview
Description

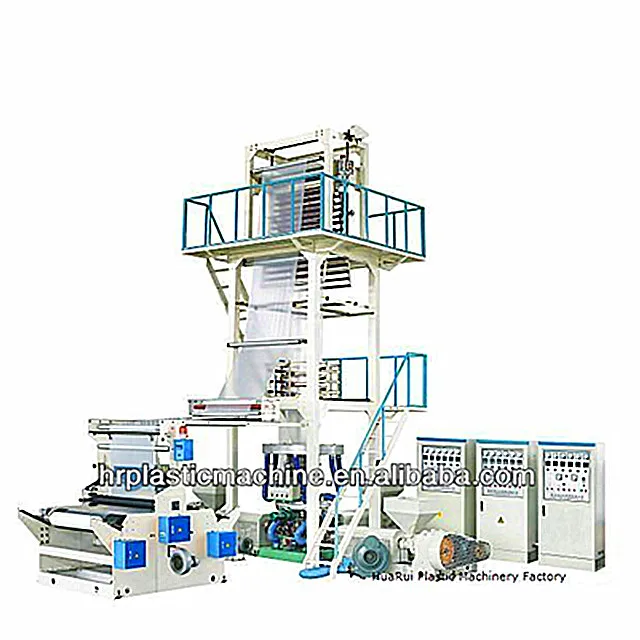

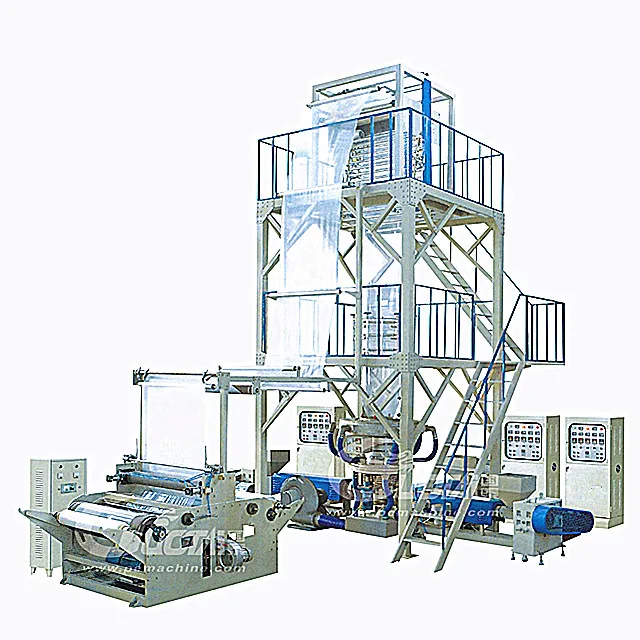

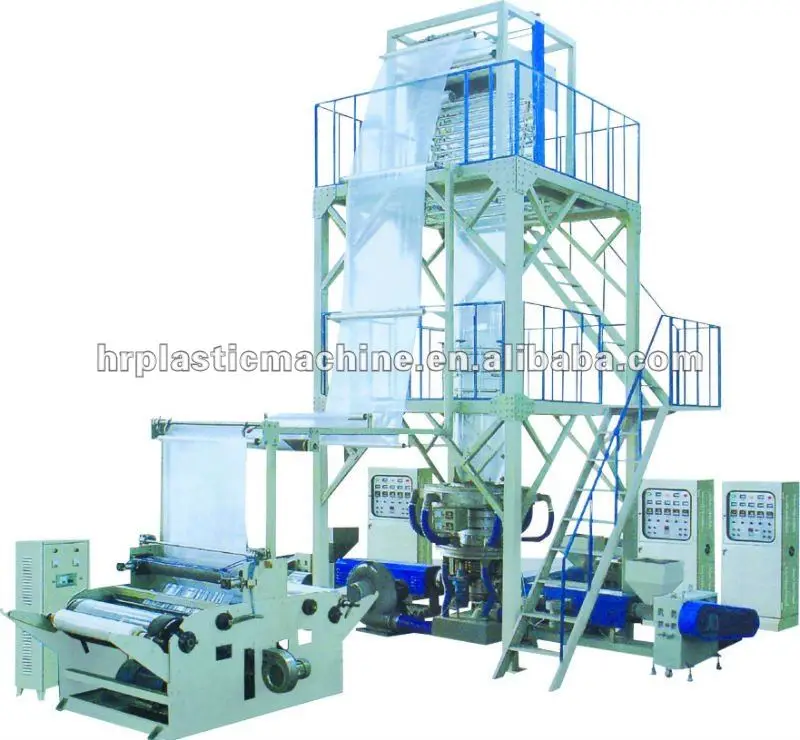

Three Layer Co-extrusion Film Blowing Machine
H.S. No. : 8477301000
Use:
This film blowing machine is applicable for the materials such as LDPE, LLDPE, HDPE, MLLDPE, EVA, EAA etc. It is widely used to manufacture composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multifunctional industrial film products.
Characteristics:
1.Die head is layer type spiral mandrel, continuous 3600 rotation.
2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Main Technical Variables:
Model | SJ3-1000 | SJ3-1200 | SJ3-1500 |
Screw diameter(mm) | 55*2&60*1 | 60*2&65*1 | 65*2&70*1 |
Screw ratio(L/D) | 28:1 | 28:1 | 28:1 |
Screw speed | 15-150r/min | 15-150r/min | 15-150r/min |
Main motor power(kw) | 15*2&18.5*1 | 18.5*2&22*1 | 22*2&30*1 |
Output (single) | 150kg/h | 240kg/h | 300kg/h |
Die head diameter(mm) | 150&200 | 200&250 | 250&300 |
Thickness of film(mm) | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 |
Max,folding width of film | 1000mm | 1200mm | 1500mm |
Total power | 76kw | 88kw | 102kw |
Weight | 4T | 5T | 6T |
Overall dimension(m) | 6.6*4.1*5 | 6.8*4.3*6 | 7*4.8*7.5 |
