HM SC series Softgel encapsulation machine/production line CE GMP approved /EU cGMP Standard

Product Overview

Description

 SOFTGEL CAPSULE

Characters of Softgel capsule

1.      beautiful appearance, easy swallow

2.      2. fast disintegration and high biology using degree, can be instant effect or slow-release

3.      full close, easy store and bring

4.      high productivity

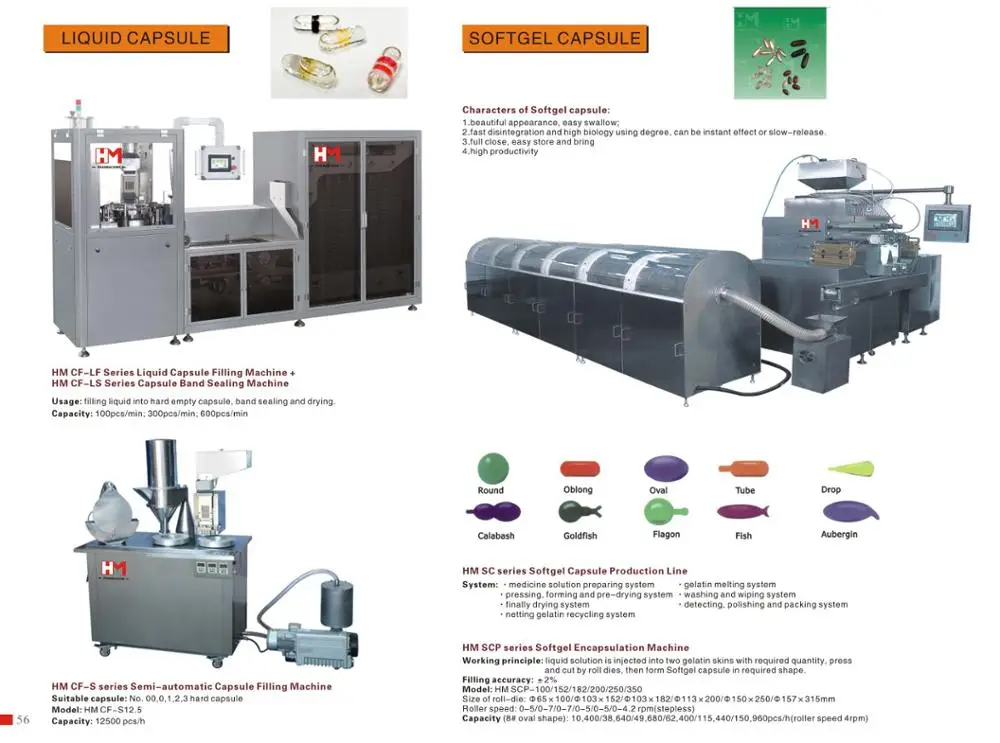

HM SC series Softgel Capsule Production Line

System:

--medicine solution preparing system

--Pressing, forming and pre-drying system

--Finally drying system

--Netting gelatin recycling system

--Gelatin melting system

--Washing and wiping system

--Detecting, polishing and packing system

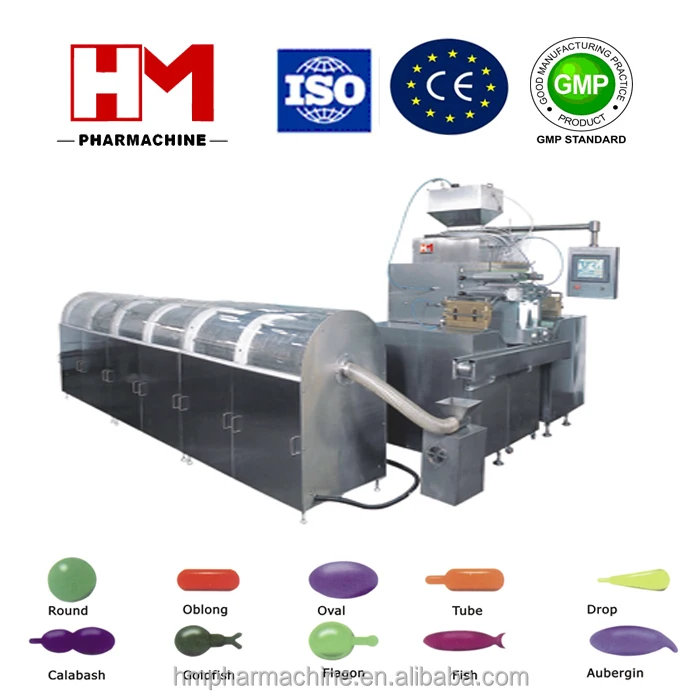

HM SCP series Softgel Encapsulation Machine

Working principle: liquid solution is injected into two gelatin skins with required quantity, press and cut by roll dies, then form Softgel capsule in required shape.

Filling accuracy: ±2 %

Model: HM SCP-100/152/182/200/250/350

Size of roll-die: Φ65× 100/Φ103× 152/Φ103× 182/Φ113× 200/Φ150× 250/Φ157× 315mm

Roller speed: 0-5/0-7/0-7/0-5/0-5/0-4.2 rpm (stepless)

Capacity: (8# oval shape): 10,400/38,640/49,680/62,400/115,440/150,960 pcs/h (roller speed 4 rpm)
