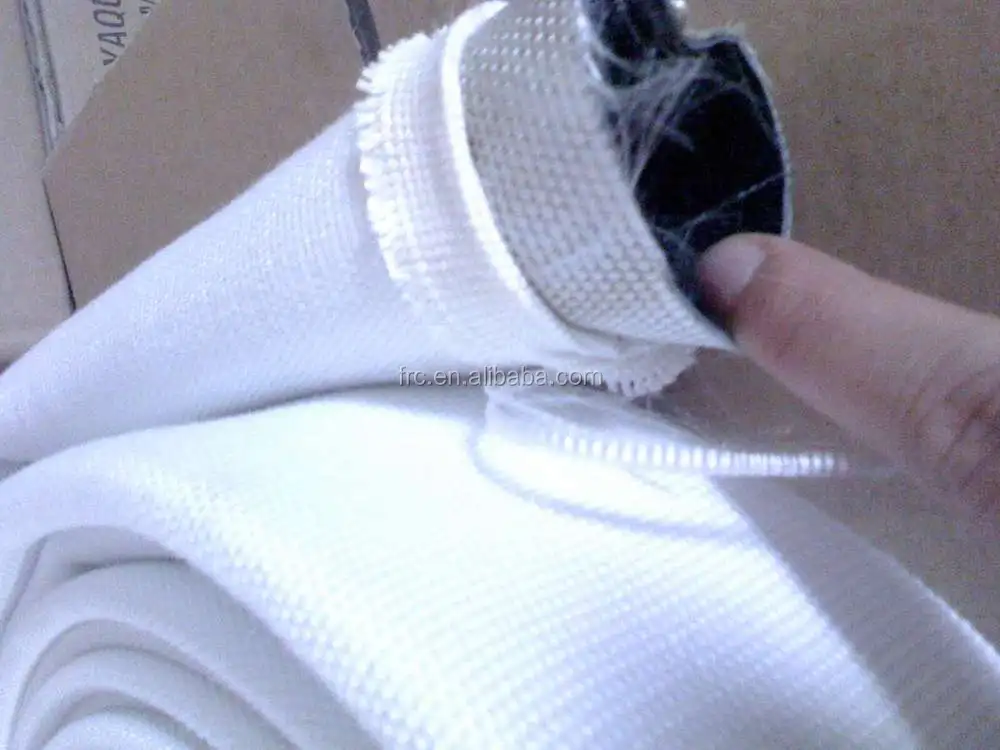

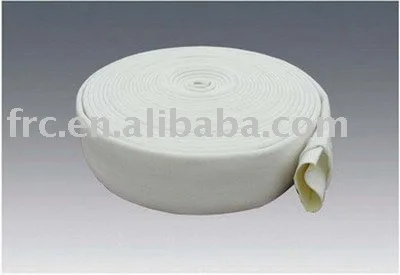

Double jacket fire hose / double jacket mill hose:
Features: 1) this hose include a second closely woven jacket outside for extra durability. Safety factor.
2) Polyester jacket is constructed of warp in polyester staple and weft in polyester filament. 3)Lined with rubber ,PU or EPDM 4)high pressure, anti-wear ,anti-corrosion, non-permeable
5) Low water-flow resistance ,quick water output 6) Length:15,20,25,30 or 40m
TECHNICAL PARAMETERS
Modle
Inner Dia (inch)
Inner Dia(mm)
Working Pressure (Bar/Psi)
Test Pressure(Bar/Psi)
Burst Pressure(Bar/Psi)
C13
1 1/2
40
13/190
20/290
≥39/565
2
50
2 1/2
65
3
75
4
100
C16
1 1/2
40
16/235
24/350
≥48/700
2
50
2 1/2
65
3
75
C20
1 1/2
40
20/290
30/435
≥60/870
2
50
2 1/2
65
3
75
C25
1 1/2
40
25/360
37/540
≥75/1080
Company Information
Zhejiang FengRuiChen Fire-Fighting Equipment Co.,Ltd. was established in1995,which is a professional supplier of fire hose.
Our main scope is :PVC Lined Fire Hose,PU Lined Fire Hose,Copy Rubber Lined Fire Hose,Double Jacket Fire Hose,Colourful Fire Hose.The company takes up an area of 32000 square meters,employs more than 100 workers and we produce 5000 meters
everyday.
Main Products:

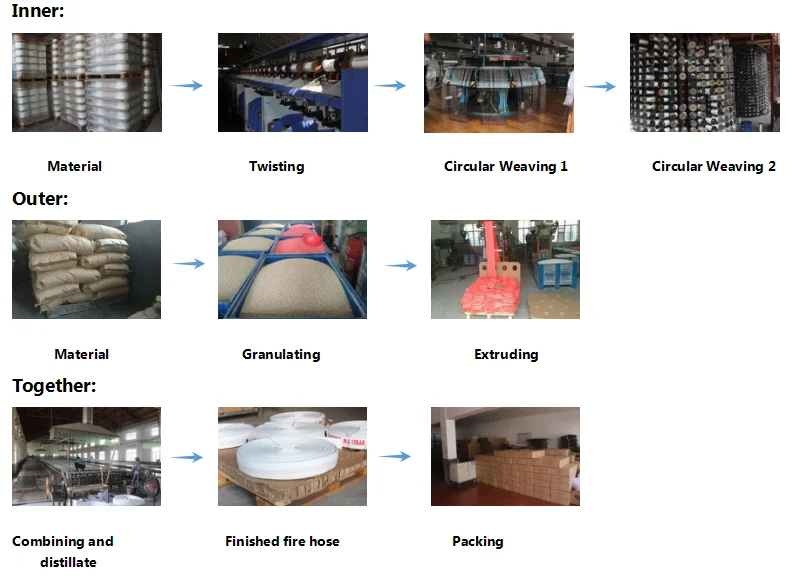

Production Flow
Packaging & Shipping
Packing Detail:Packed With Nylon Bag or Carton
Lead Time:30 Days
Port:Ningbo
FAQ
1.Are you factory or trade company?
A:We have our own factore and usually quote witnin 24hours .If you are urgent,you can sent eamil so that we can deal with your inquiry.
