GD50 Small capacity candy depositor

Share on (250354236):


Price:

Quantity:


Product Overview

Description



Product Description

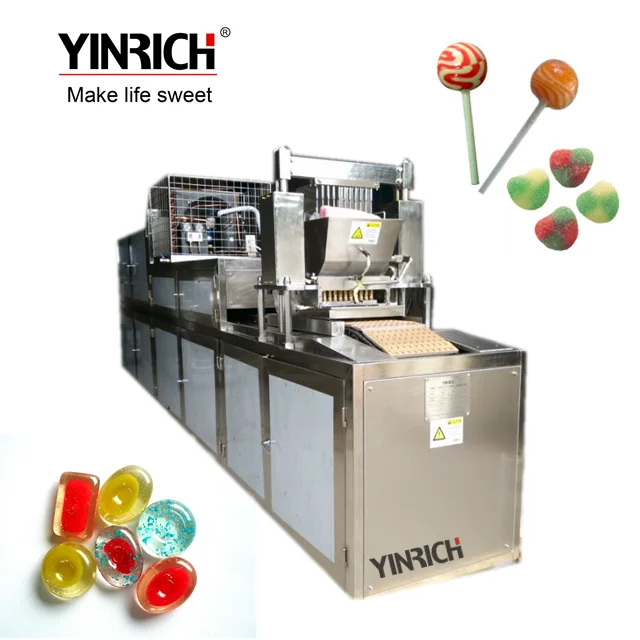

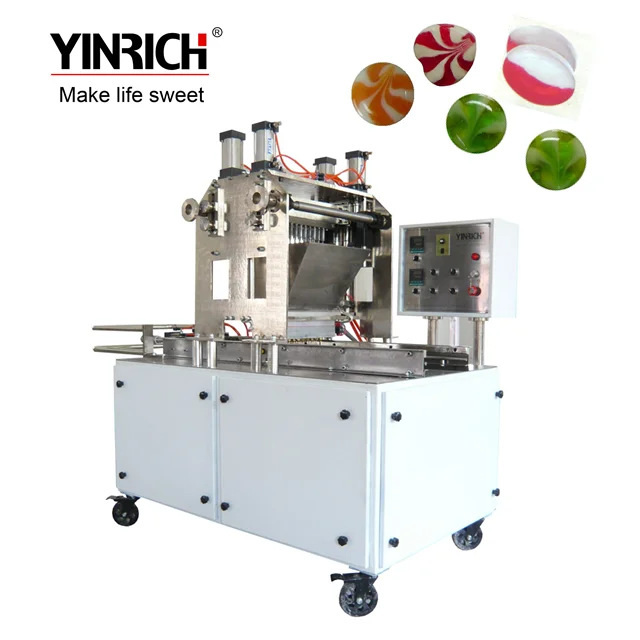

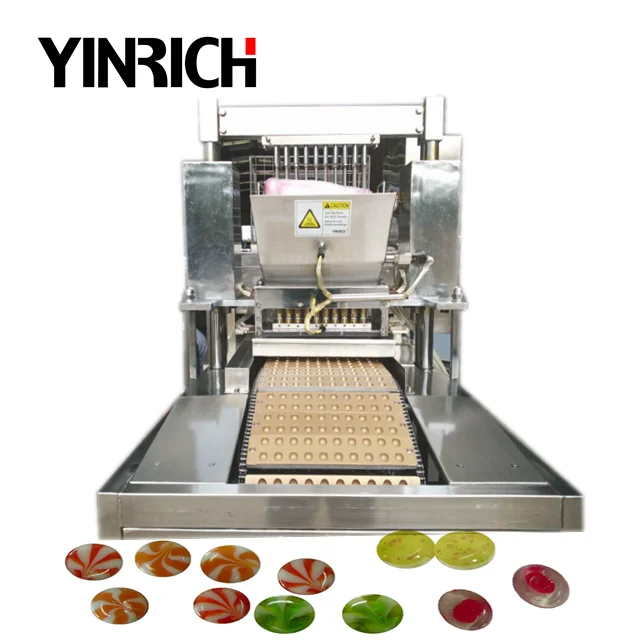

GD50 Small capacity candy depositor




This machine is small scale candy depositing plant.


1.  This machine can  produce different kinds of deposited hard candies, jelly candies, toffees and other candies .


2.  This machine has compact structure ,stable performance and easy control.


3.  The depositing volume can be adjusted optionally. This machine can run with stepless speed adjustment as per the requirement.

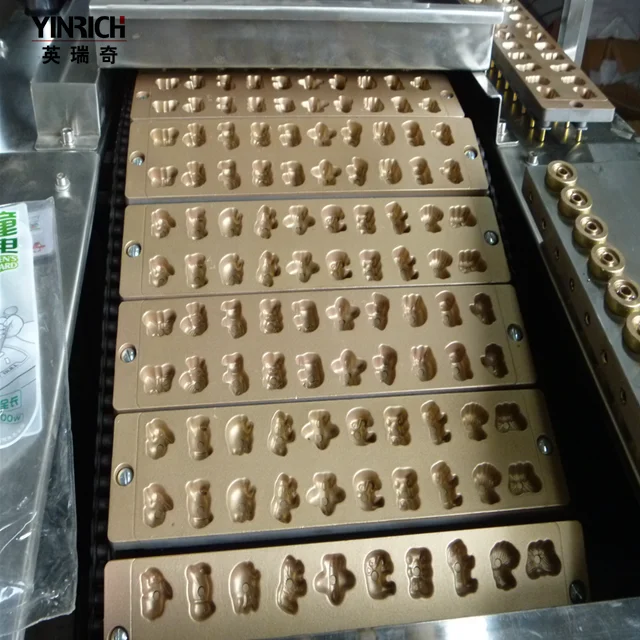

4.  This machine is installed with the automatic mould tracing and detecting device.


5.  This machine is controlled by PLC program setting which can let the machine running smoothly and accurately.


6.  Compressed air is the power for the machine’s running, and It can make the whole surrounding of operation to be sanitary, cleanliness and meet the requirement of GMP.


GD50-11


 GD50-10


Main technical specifications:





Output capacity:                50~400kgs per shift(8 hours)


Available candy weight :         2~5g/pc


Total electrical power :          8.5KW/380V


Compressed air consumption:   4~5m3/h


Depositing speed:              5~20 strokes/min


Dimension:                     5700*700*1700 mm


Gross weight:                 1500KG
















OEM/ODMAccept
CustomizedYes
