Concrete Reinforcement Wire Mesh (good quality)

Product Overview

Description

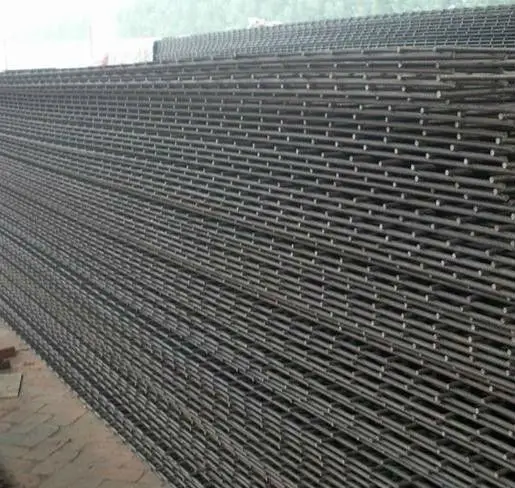

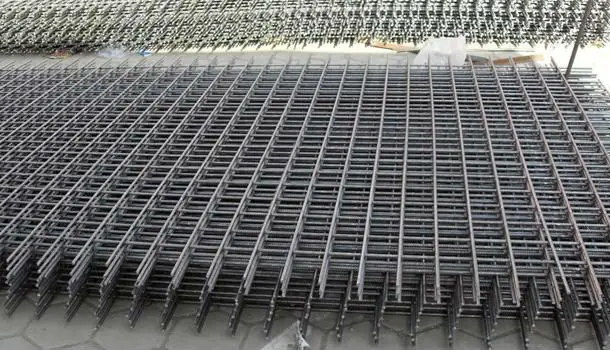

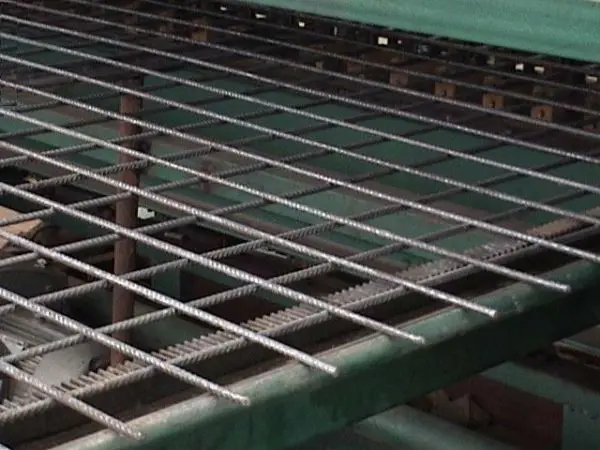

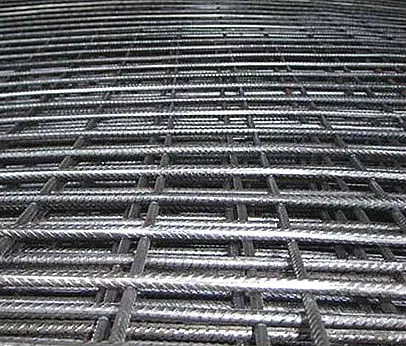

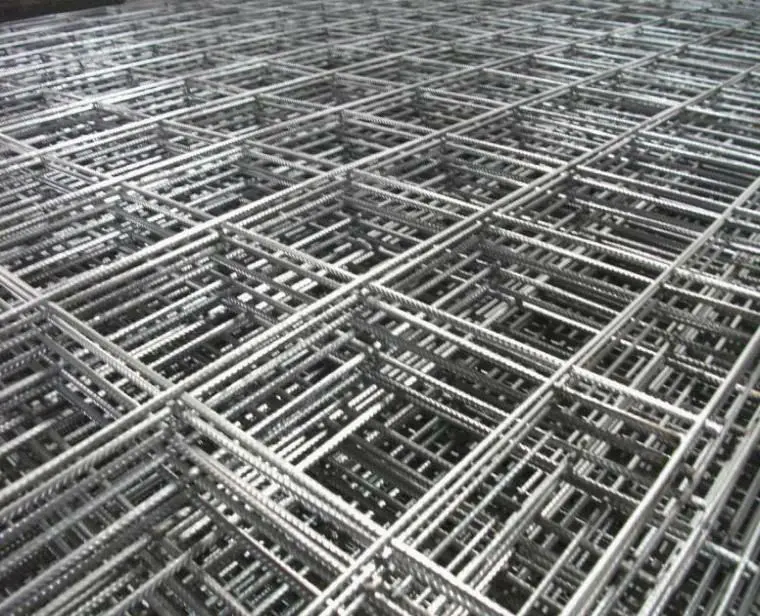

Concrete Reinforcement Wire Mesh







1.Material: low carbon steel wire



2.Uses:



This kind of wire mesh is widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.



3. specifications:



Wire diameter:5-16mm
Panel opening:75mm-300mm

Width:1-2.34m

Length:1-6m...







Specification list:



Mesh		Wire Diameter
In Inch	In MM	Wire Gauge	In MM
1/4" x 1/4"	6.4mm x 6.4mm	22BWG-24BWG	0.7mm-0.6mm
3/8" x 3/8"	10.6mm x 10.6mm	19BWG-22BWG	1.0mm-0.7mm
1/2" x 1/2"	12.7mm x 12.7mm	16BWG-23BWG	1.6mm-0.6mm
5/8" x 5/8"	16mm x 16mm	18BWG-21BWG	1.2mm-0.8mm
3/4" x 3/4"	19.1mm x 19.1mm	16BWG-21BWG	1.6mm-0.8mm
1" x 1/2"	25.4mm x 12.7mm	16BWG-20BWG	1.6mm-0.9mm
1" x 1"	25.4mm x 25.4mm	14BWG-21BWG	2.0mm-0.8mm
11/2" x 11/2"	38mm x 38mm	14BWG-19BWG	2.0mm-1.0mm
1" x 2"	25.4mm x 50.8mm	14BWG-16BWG	2.0mm-1.6mm
2" x 2"	50.8mm x 50.8mm	12BWG-16BWG	2.6mm-1.6mm









































Note: we can make the specification as your requirements.







About us!





Anping Tianyue Welded Wire Mesh Co., Ltd. was eastablished in 2006, located in the biggest wire mesh production base –AnPing city, which is called“hometown of wire mesh” in China.







We have 30 sets of all kinds drawing wire equipment, 50 sets of welding mesh machines and 2 galvanized production lines. Our company has strong manufacturing capability and produced welded wire meshes, fencing meshes and galvanized wires in which fencing meshes are our main products.







If you have interest, welcome to contact Anny!
