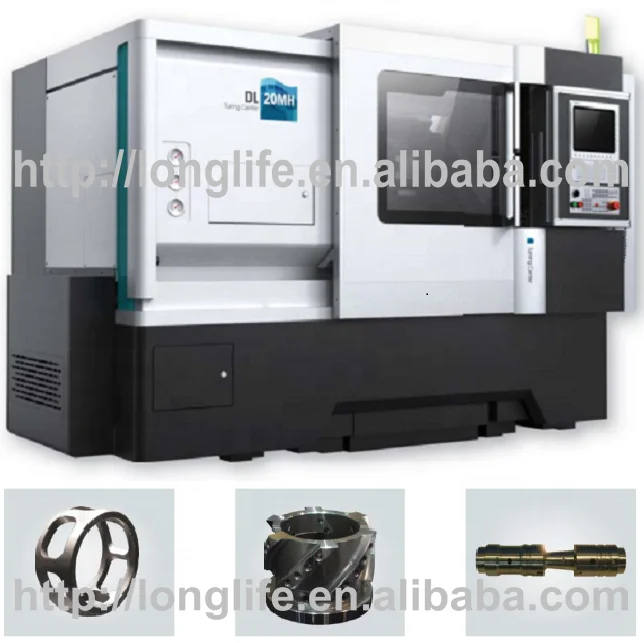

DL32MHx1000 3 axis CNC turning center with live tooling
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (251215651):
Product Overview
Description
DL32MHx1000 3 axis cnc turning center with live tooling
Recommended Lathes

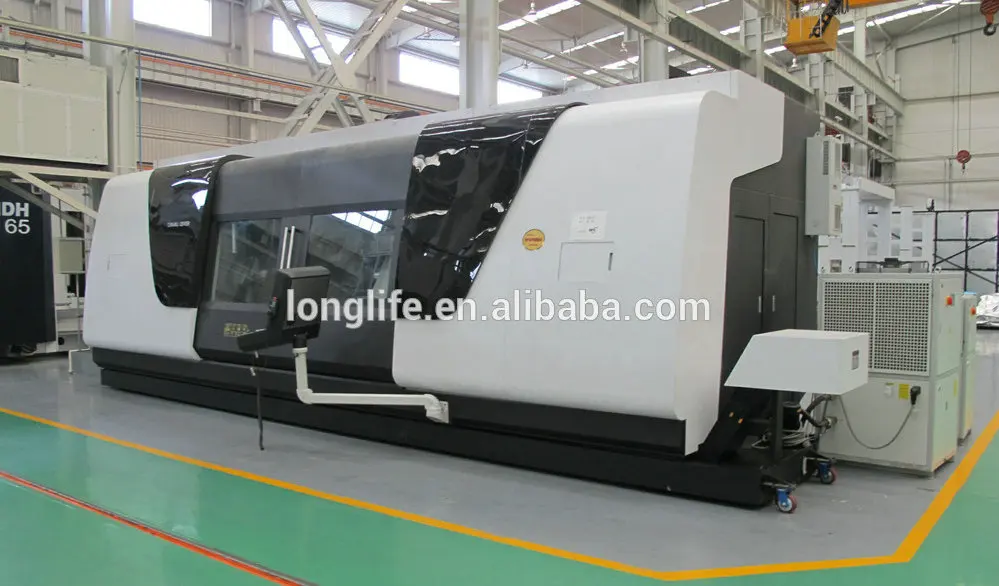

DL32MHx1000 3 axis cnc turning center with live tooling
As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
Max. swing over bed | mm | dia. 680 |
Maximum cutting diameter (shaft/disc) | mm | dia. 440/590 |
Max. turning length | mm | 950 |
Spindle nose |
| ISO A2-11 |
Chuck size (Solid chucks) |
| 10″Solid chucks |
Spindle speed | r/min | 20~2000 |
Dia. of spindle through hole | mm | dia.100 |
Max. Bar dia (Hollow Chuck) | mm | dia.80 |
Main spindle motor power | kW | 22/30 |
Rapid traverse X and Z axis | m/min | X-axis 12 Z-axis 16 |
Cutting feed X axis | mm/min | X/Z axis 0~9000 |
X/Z -axis travel | mm | X-axis 375 Z-axis 1020 |
Positioning precision of X/ Z axis | mm | (X) 0.011 (Z) 0.018 (C)44" |
Repetitive positioning precision of X/ Z axis | mm | (X) 0.007 (Z) 0.008 (C) 18" |
Reverse Difference |
| (X) 0.007 (Z) 0.008 |
Roundness |
| 0.004 |
Cylindricity |
| 0.016 |
Machining flatness |
| 0.018 |
Number of turret stations |
| 12 stations |
External shank size | mm | 32x25 |
Inner hole shank size | mm | Max. dia.50 |
Power tool drive motor power | kW | 5.5/7.5 |
Max.speed of power tool | r/min | 4000 |
Max. tailstock travel | mm | 1000 |
Tailstock sleeve diameter | mm | dia. 160 |
Tailstock sleeve travel | mm | 180 |
Mandrel taper |
| MT.NO.5 |
X/Z axis guide type |
| Sliding guide |
Machine size ( L x W x H ) | mm | 5962x2095x2215 (with chip conveyor) |
Machine weight | kg | 11000 |
Refer to the implementation of GB/T16462.4-2007 "CNC lathe and turning center inspection conditions Part 4 linear and rotary axis positioning accuracy and repeat positioning accuracy inspection". | ||
Free Std Accessories
S.N | Item | Specifications | Quantities | Remark |
1 | Foundation Sizing Block |
| 6 sets |
|
2 | Radial Driven Tool Holder | 50 | 1 set | Italy |
3 | Axial Driven Tool Holder | 50 | 1 set | Italy |
4 | Tool Holders for OD Tools | 32x25 | 3 sets |
|
5 | Tool Holders for ID Tools | Φ40 | 1 set |
|
6 | Tool Holders for ID Tools | Φ32 | 1 set |
|
7 | Tool Holders for ID Tools | Φ25 | 1 set |
|
8 | Soft Jaw |
| 1 set | For Hydraulic Chuck |
9 | Center | DL32-69701 | 1 set | Used with Tailstock |
10 | Center | DL32-69702 | 1 set | Used with Tailstock |
11 | Nut | DL32-69703 | 2 sets | Used with Tailstock |
12 | Foot Switch |
| 1 set |
|
13 | Chip handcart |
| 1 set |
|
14 | Lubrication System |
| 1 set | China |
15 | Hydraulic Component |
| 1 set | Taiwan or Joint-venture |
16 | Main Electrical components |
| 1 set | China |
17 | Chuck and Oil Cylinder |
| 1 set | Auto Strong Taiwan |
18 | Driven Turret |
| 1 set | Italy |
19 | Auto Chip conveyor |
| 1 set | Yantai |
20 | Spindle Bearing |
| 1 set | NSK |
21 | X/Z-axis Bearing |
|
| NSK |
22 | X/Z-axis Linear Guide way |
|
| DGC |
23 | Main Drive Belt |
| 1 set | Japan or USA |
24 | Notched Belt |
| 1 set | Japan or USA |
Brief Introduction
DL-series 3 axis cnc turning center has following features:
1. One-piece casting with high rigid structure providing solid and stable performance.
2. 45 degree slant bed with sound vibration absorbing features.
3. THK ball screws,high precision linear guide way,automatic lubricating system guarantees, smooth transmission with sound static and dynamic characteristics.
4. Integral wide-range AC spindle motor features high torque output at low speed.
5. Turning, drilling, milling, tapping can be achieved with the Italy imported 12 station hydraulic turret to achieve high precision.
6. Live tooling, C-axis, rigid tapping and robust tailstock generating;
7. State-of-the-art machining, Enclosed guards offers waterproof and chip-free environment;
8. CE Standard and CE Certificate;
9. with C-axis and Living tooling;
