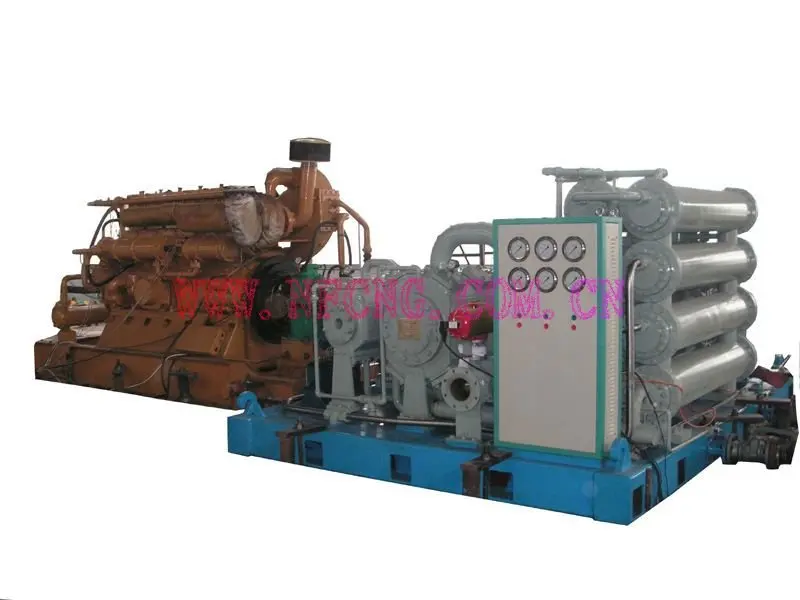

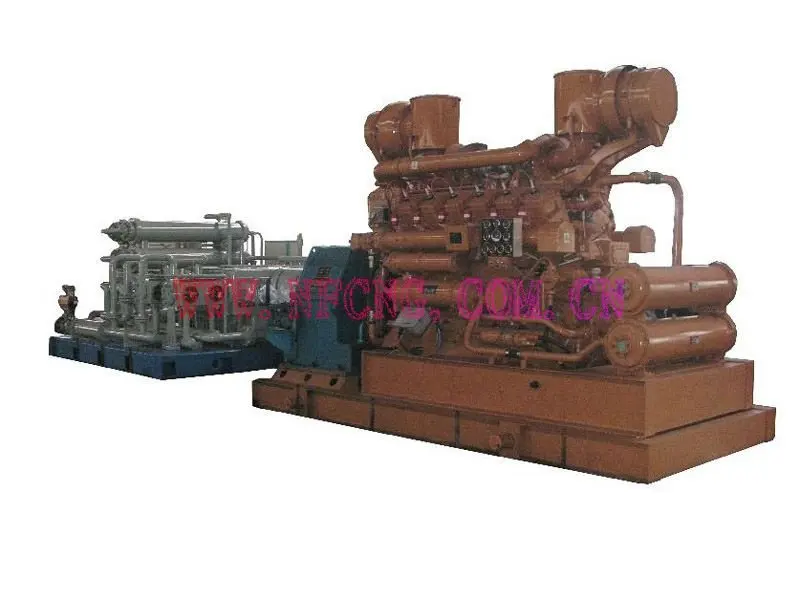

Gas Engine Driving CNG Compressor M 13/15 200 For Mother Refueling Station

Quality&Service&Good Price

Sichuan South Gas Compressors Co. Ltd is a leading manufacturer of CNG, and Industrial Compressors in Sichuan Province of P. R of China.

We are the real Chinese manufacturer, with primary sources, we are not trade agent.

the usage is especially suitable for those areas which are lacking of power, to save the expense of purchasing of generator

parameters of this compressor:

Model:                     M-13/15 - 200
Media:                     Pure natural gas
Intake pressure:       1.5Mpa
Outlet pressure:       20Mpa
Intake temp of gas:   ≤30°C    ≥ 0°C
Outlet temp of gas:   ≤ 45oC(After water cooling, and when intake temp. of gas  ≤ 30oC,
                                temp of cooling water  ≤30oC+)
Capacity:                 2500Nm3/h (When intake temp. of gas=20oC, pressure = 1.5Mpa)
Working temp:         ≤50oC
Stages:                   5-Stage
Type of driven:         Direct driving
Compressor speed:  740RPM
Power of shaft:         297Kw
Cooling:                  Water cooling
Lube consumption:   Non-oil lubrication for cylinder and packing seal kits
Capacity of circulating water: 30 tons/h
Pressure of circulating water: 0.2~0.3Mpa
Pressure of oil pump:            0.2~0.3MPa Lubricating
Driving unit:                          By gear oil pump
Driven by:                            Gas Engine - G12V190ZLT-2, power rating 550kw
Weight of compressor:          14.5 tons
Compressor size (Lx Wx H): 4, 500 x 4, 300 x 1, 600 mm
