EM120 Complete Extruded Marshmallow(Cotton Candy) Line
- Category: >>>
- Supplier: Beijing Yinrich Technology Developing Co. Ltd.
Share on (251770198):
Product Overview
Description

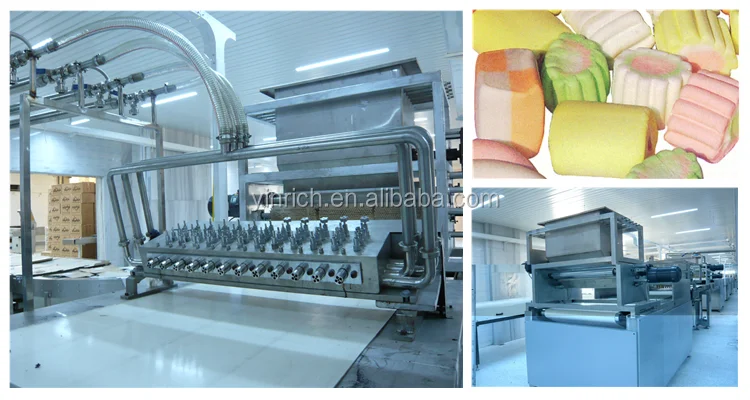

EM120 Complete Extruded Marshmallow(Cotton Candy) Line
PROCEDURE:
1) In the pre-mixer, all the ingredients to be dissolved and cooked. (An automatic YINRICH ‘s AWS can be used for auto weighing and mixing.).
2) Then the basic slurry is continuously pumped to a cooker till the final moisture level is reached.
3) After cooking, the slurry will be cooled and mixed with a separate whipping agent solution.
4) Then the cooled “marshmallow base” is passed through the continuous aerator.

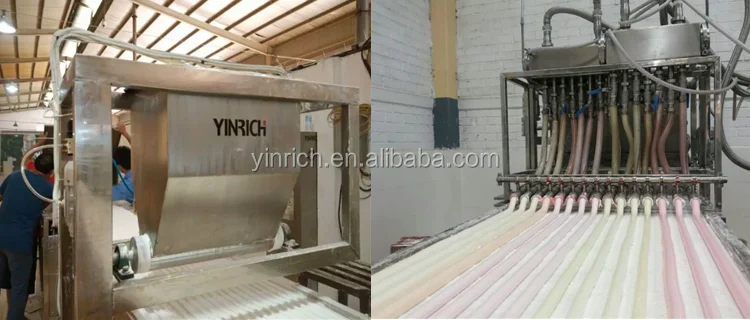

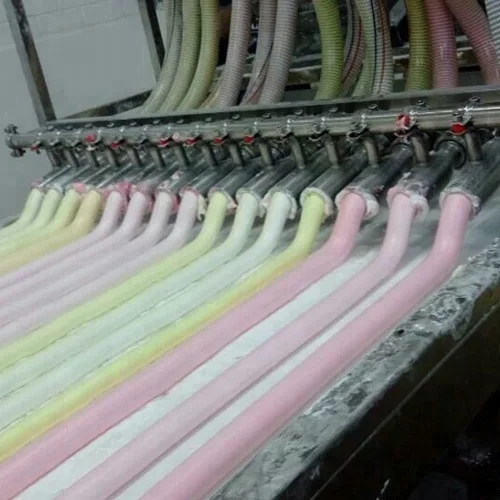

5) The product then be divided and injection with different colors and flavors.

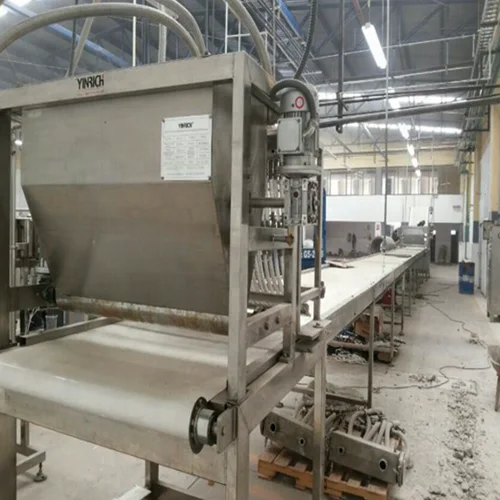

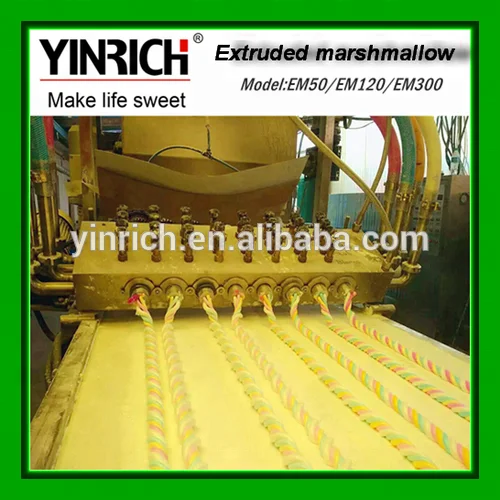

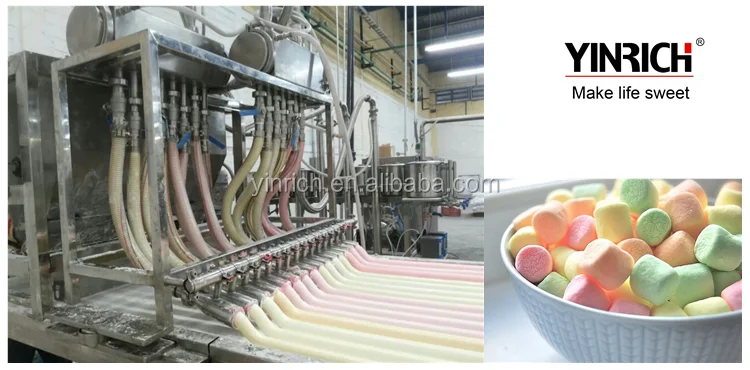

6) The multi-color product is extruded ,and transported on a cooling conveyor for cooling down;
7) The conditioned marshmallows are dusted top and bottom with starch, or a mixture of both starch and icing sugar in a separate dust cabin; the product is cut to the required length here.
8) The dust cabin is kept under a strict control to prevent the "dust" spreading throughout the plant. The excess starch/sugar is removed.
9) The final is transferred to a packaging place.
TECHNICAL SPECIFICATIONS:
Model | EM120 |
Production capacity kg/h | 80~120 |
Cutting length of the product mm | 20~160 |
Steam consumption kg/h Steam pressure MPa | 250 0.2~0.6 |
Electric power needed | 35kW/380V |
Compressed air consumption Compressed air pressure | 1.5m3/min 0.6-0.8MPa |
Conditions needed for the cooling system: 1. Room temperature 2. Humidity (%) |
20~25 45~55 |
Gross weight kgs | 8000 |
Total length of the line m | 35 |
Company Information
Beijing YINRICH Technology Developing Co.,Ltd. ,since 1 9 9 6 is a top leading and professional machinery designer and manufacturer in China for providing the high quality confectionery and chocolate processing machinery ,packaging equipment ,and food machines . YINRICH machines and equipment are designed for the highest technical standards, system consistency, flexibility and economy. No matter whether stand-alone machines using semi-automatic production method , or fully automatic production lines, all the machines can be chosen to the individual customer requirement. As the top-leading corporation for the packaging and confectionery and food machinery in China, YINRICH offers not only the advanced equipment with competitive and economical efficiency, but bring to the customer the whole solution method for the confectionery and chocolate production and packaging ,i.e. to provide the customer a turn-key project.
We provide the design, production, and assembly of small ,medium and large confectionery ,chocolate lines in accordance with the customer's specific demands. We are never satisfied with the present achievements. The client's need is our motive force to design and build the top quality machines in China. We are happy to provide you our best services and also will be happy to share with you our professional experiences of over 15 years in this field.

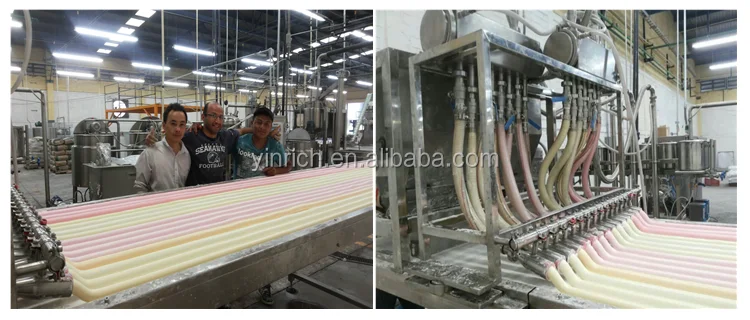

Customer Visit
